7 Tag Data Link Functions
7-50
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)

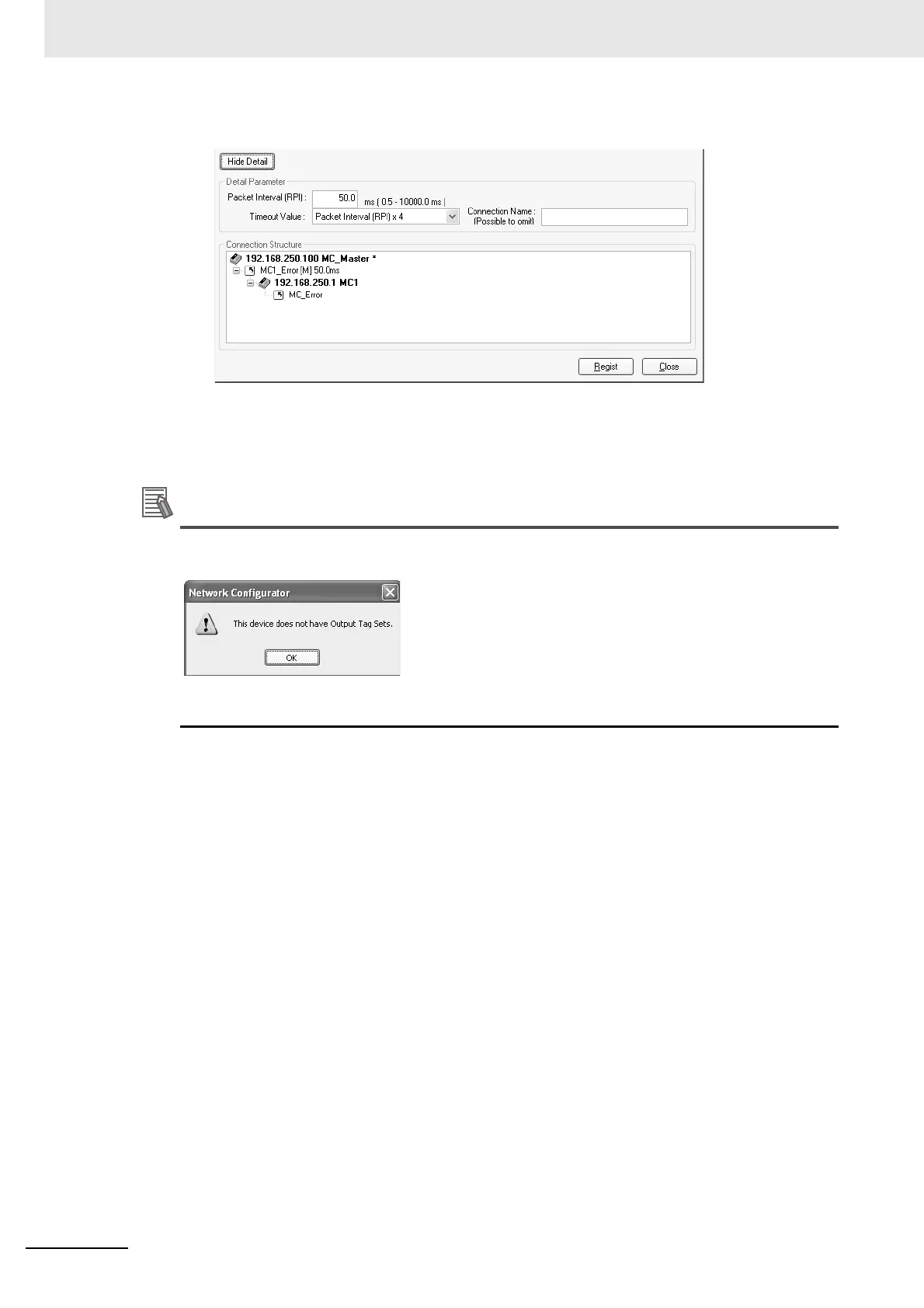

The following display will appear when you click the Show Detail Button.
The specified values for detailed parameters will be displayed. Change the values as
required. Connection names are automatically created using the following rule.
default_N (where N is a 3-digit number (001, 002, etc.) starting from 1)
The following dialog box will be displayed if a target device that does not have I/O data is
dropped.
Before dropping again, refer to the manual of the applicable device and create the I/O data (i.e.,
output tag sets) required to create a connection.
3
After you have set all of the connection, click the Regist Button to create the connection. When
creating the connection has been completed, the input tag set and output tag set will be blank.
Next, you can continue to create connections by selecting the connection I/O type and setting a
tag set.
To Next Page
