7 Tag Data Link Functions

7-52

NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)

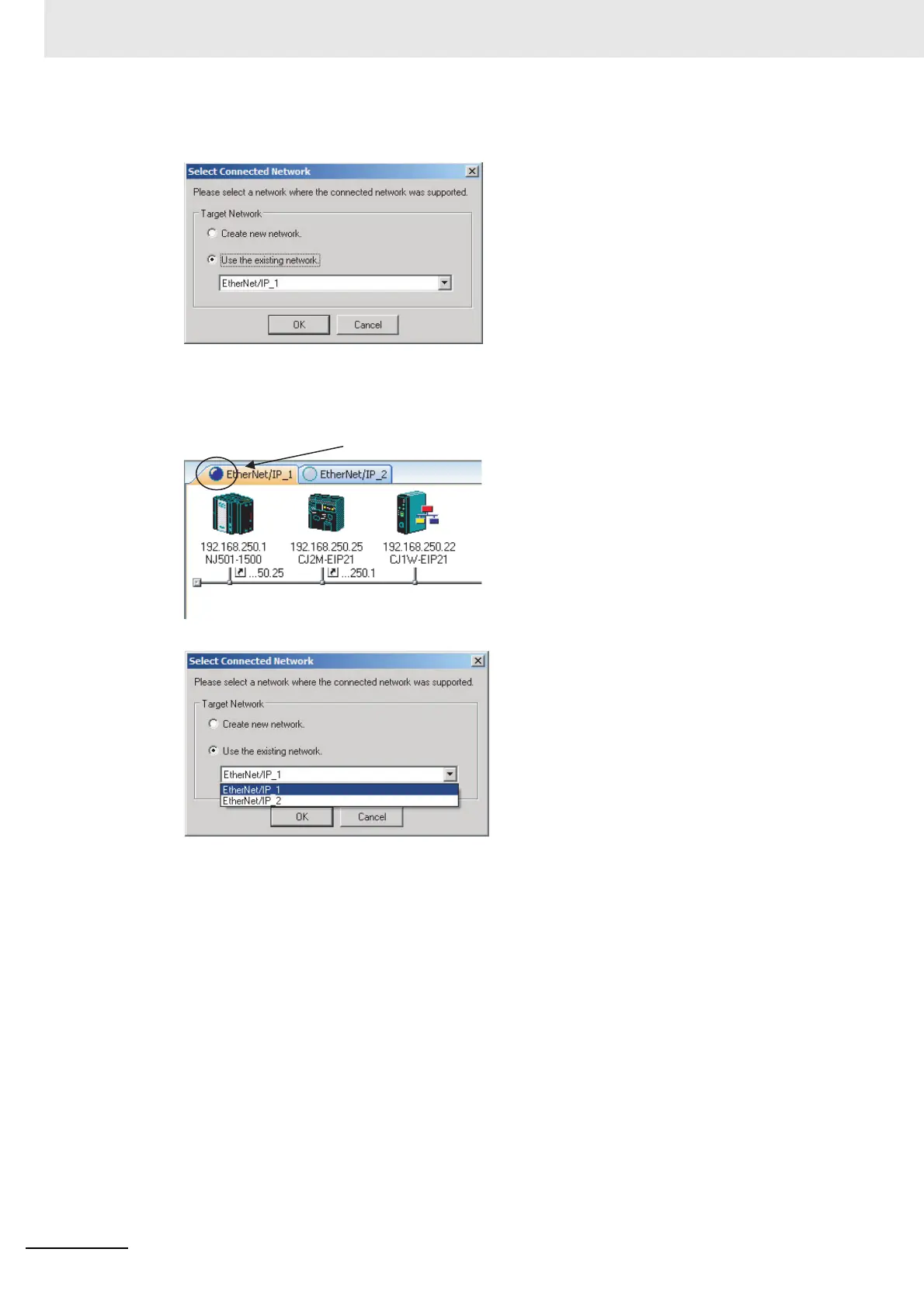

Click the OK Button.

Select the network to connect.

The Network Configurator will connect to the EtherNet/IP network. If the Network Configurator

goes online normally, “Online” is displayed in the status bar at the bottom of the window. The

network connection icon is displayed in blue on the Network Tab Page in which the Network

Configurator is connected.

Select Network - Change Connect Network to switch the connected network.

Network connection icon
