7 Tag Data Link Functions

7-56

NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)

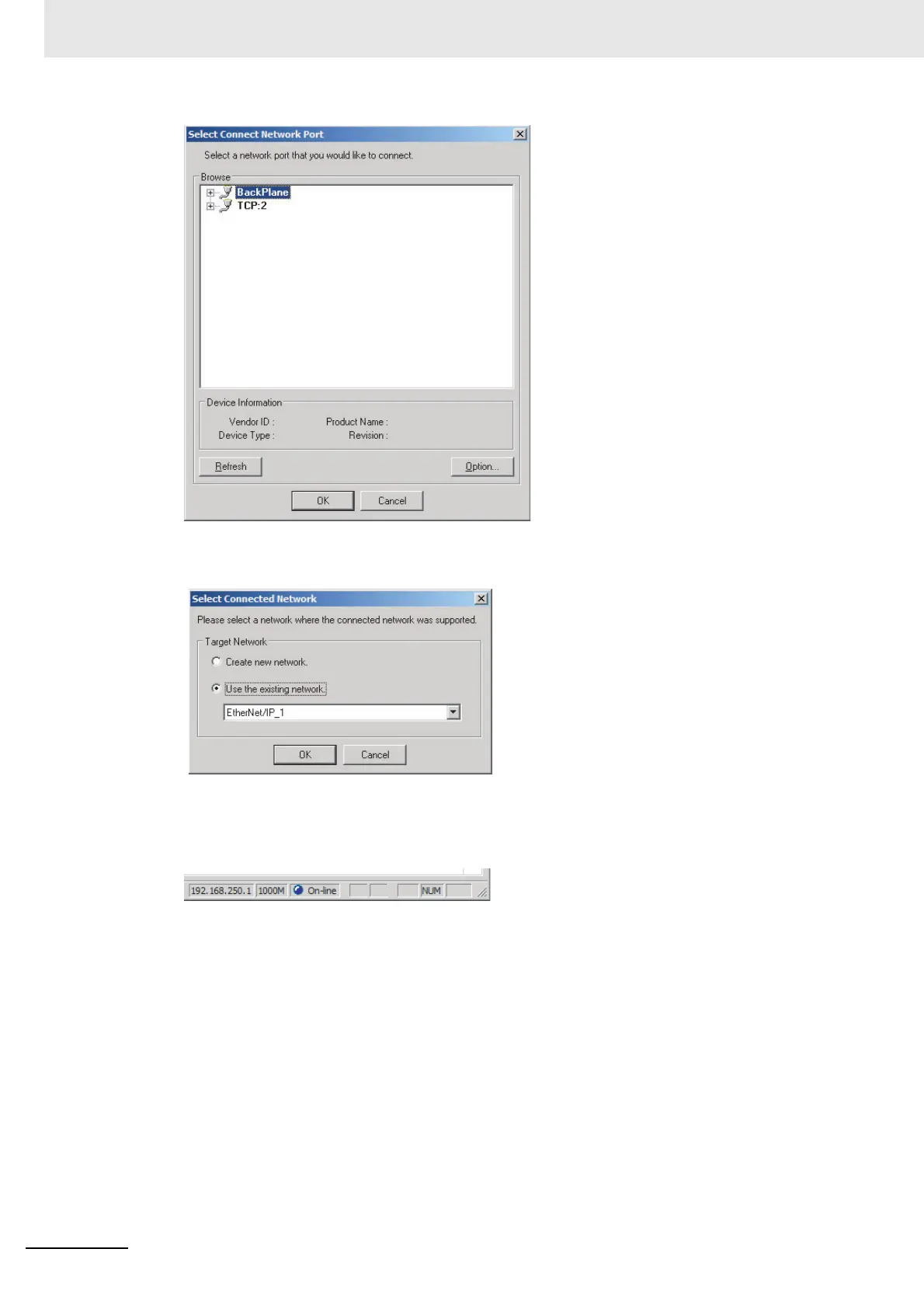

Select TCP:2 and then click the OK Button.

The following dialog box is displayed.

Select the network to connect.

The Network Configurator will connect to the EtherNet/IP network. If the Network Configurator

goes online normally, “On-line” is displayed in the status bar at the bottom of the window.
