NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
Precautions for Correct UsePrecautions for Correct Use

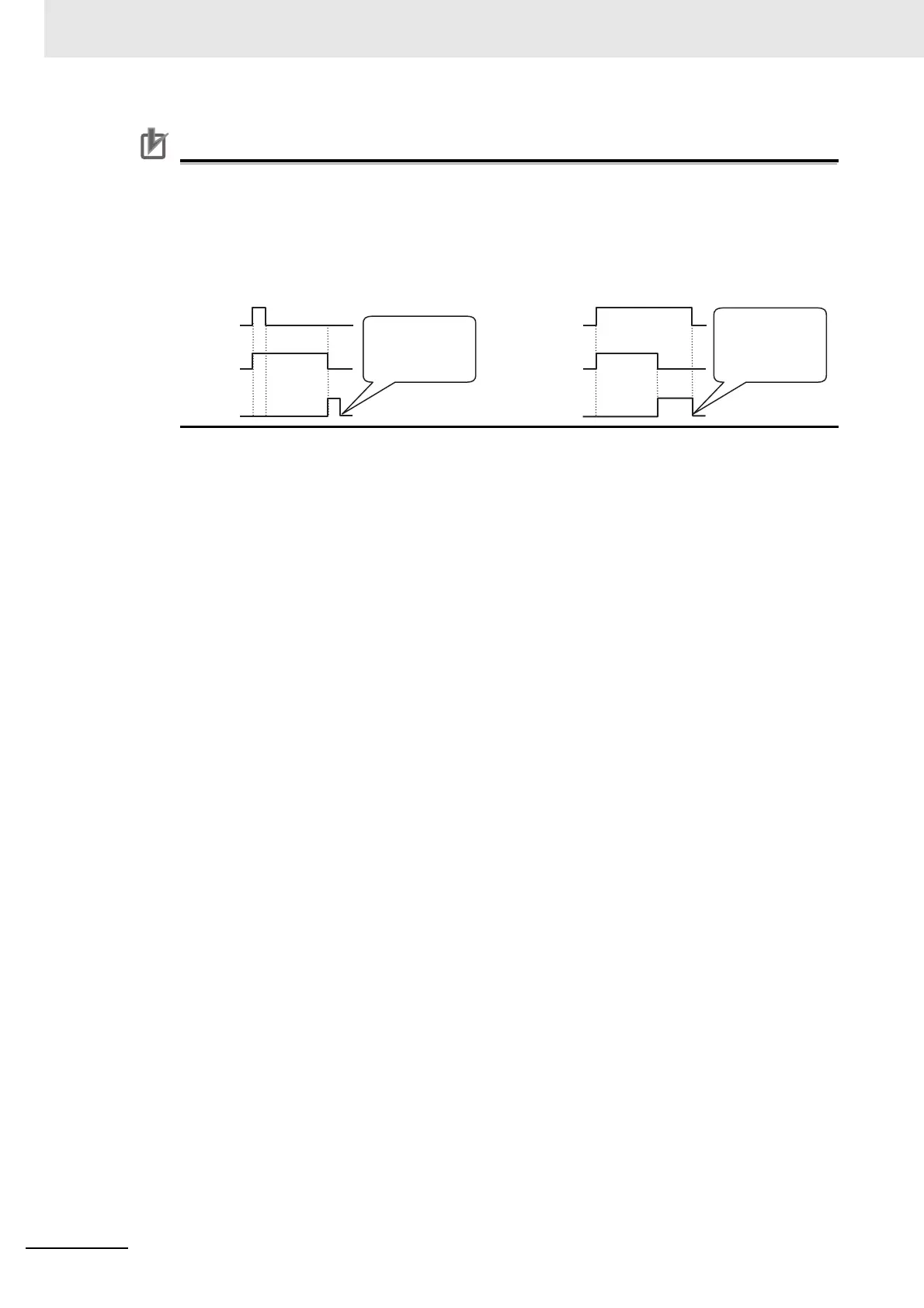

If Execute changes back to FALSE before Done changes to TRUE, Done stays TRUE for only
one task period. (Example 1)
If you want to see if Done is TRUE at any time, make sure to keep Execute TRUE until you con-
firm that Done is TRUE. If Execute is TRUE until Done changes to TRUE, Done stays TRUE
until Execute changes to FALSE. (Example 2)
Execute
Done
Execute
Done
Busy
(Executing)
Busy
(Executing)
Changes to
FALSE in next
task period.
When Execute
changes to
FALSE, Done
returns to FALSE.
Example 1 Example 2
