14-15

14 Communications Performance and Communications Load

NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)

14-2 Adjusting the Communications Load

14-2-4 Changing the RPI

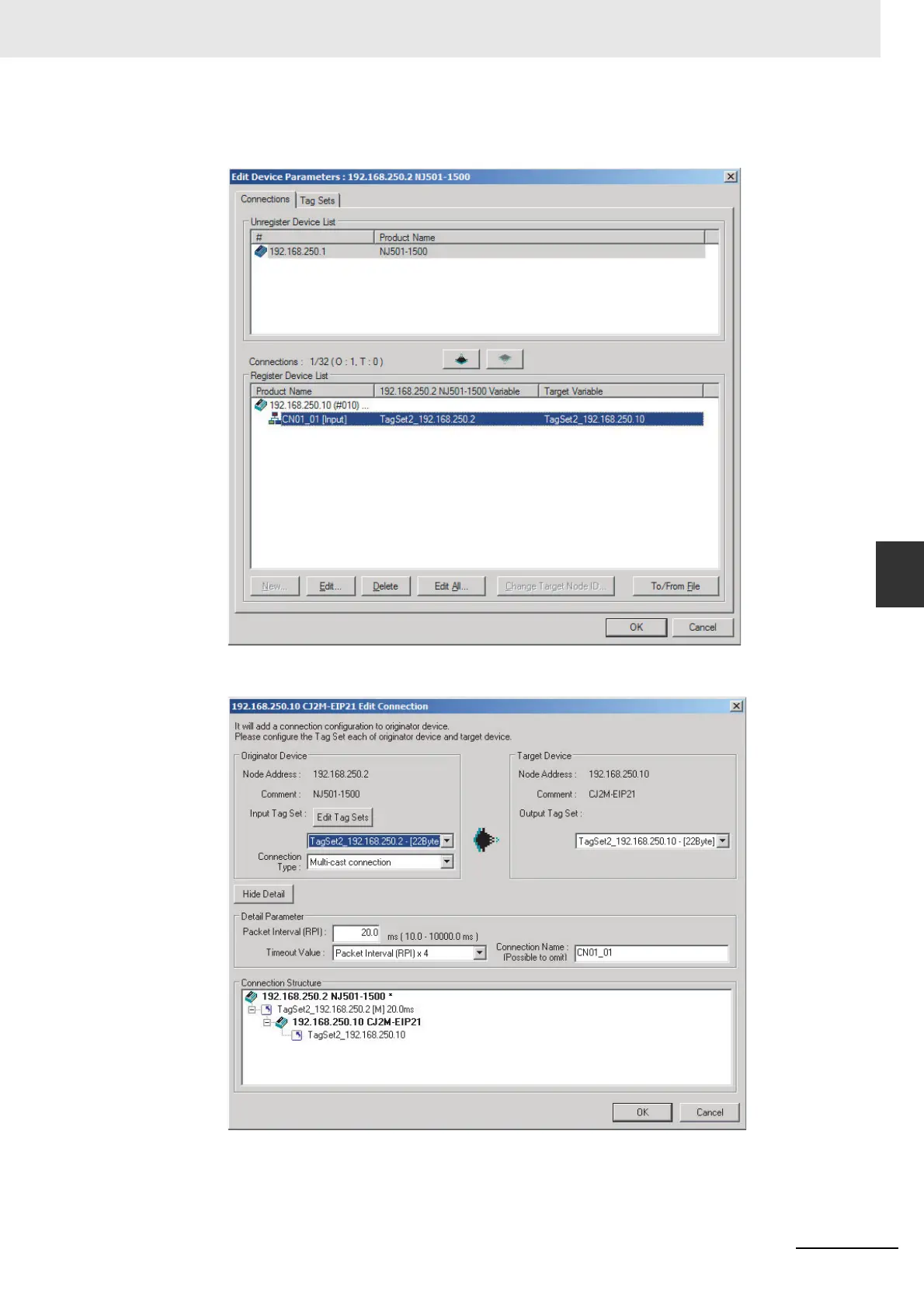

(3) In the Register Device List, select the connection for which you want to change the

RPI, and click the Edit Button.

(4) The device’s Edit Connection Dialog Box will be displayed. Input a new packet inter-

val (RPI) value, and click the OK Button.
