(3) The automatically registered tag is added to the list in the EtherNet/IP Connection
Setting Tab Page.
With automatic registration, the tag is registered under a tag set having the same name as
the tag, i.e., a single tag is registered in a single tag set.
7 Set the following settings for the registered tag and tag set.
• Setting for Tag Sets
• Setting for Tags
Name Item
Tag Set Name Enter the tag set name.
You can change the names as required.
Size (Byte) Gives the total size of the tag in bytes.
Instance ID Gives the instance ID.
• Auto
• IN_{min}...IN_{max}
{min} represents the minimum number of Produced Assembly identifica-
tion numbers recorded in the EDS files for the relevant devices.
{max} represents the maximum number of Produced Assembly identifica-
tion numbers recorded in the EDS files for the relevant devices.
Controller Status Specify whether to include the Controller status in the tag set.
Name Item
Tag Name Enter the tag name.
Specify the tag name that matches one of the registered network variable
names in the Controller.
Bit Selection Specify whether to set the tag data size in bits.
Selected: Set the size in bits.
Not selected: Set the size in bytes.
Size (Byte) Gives the size of the tag in bytes.
Size (Bit) Gives the size of the tag in bits.
Output at Fatal Error Specify whether to clear the output data or continue to send it when a
major fault level Controller error occurs in the Controller.
• Retained
• Cleared

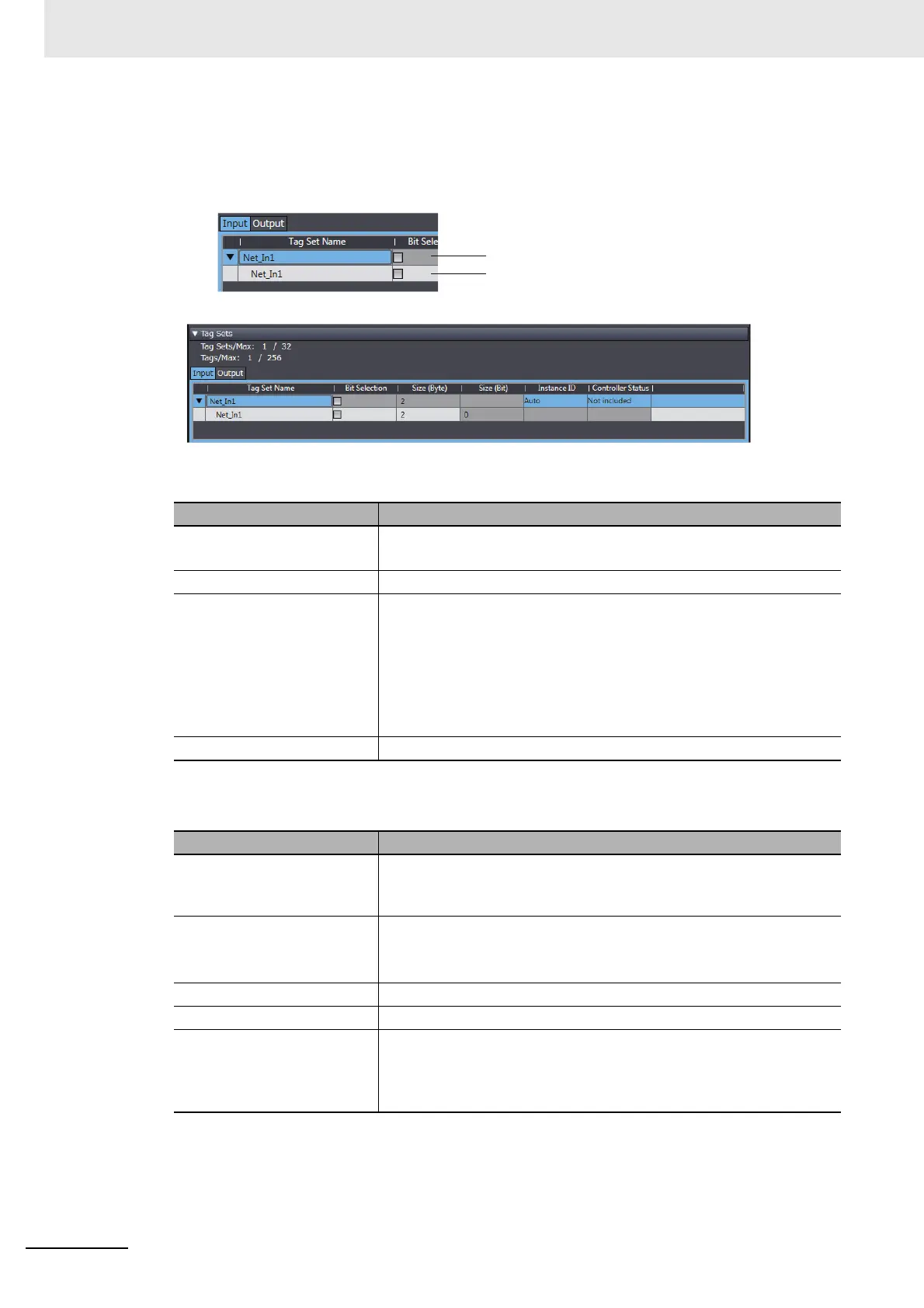

Tag set name
Tag name
