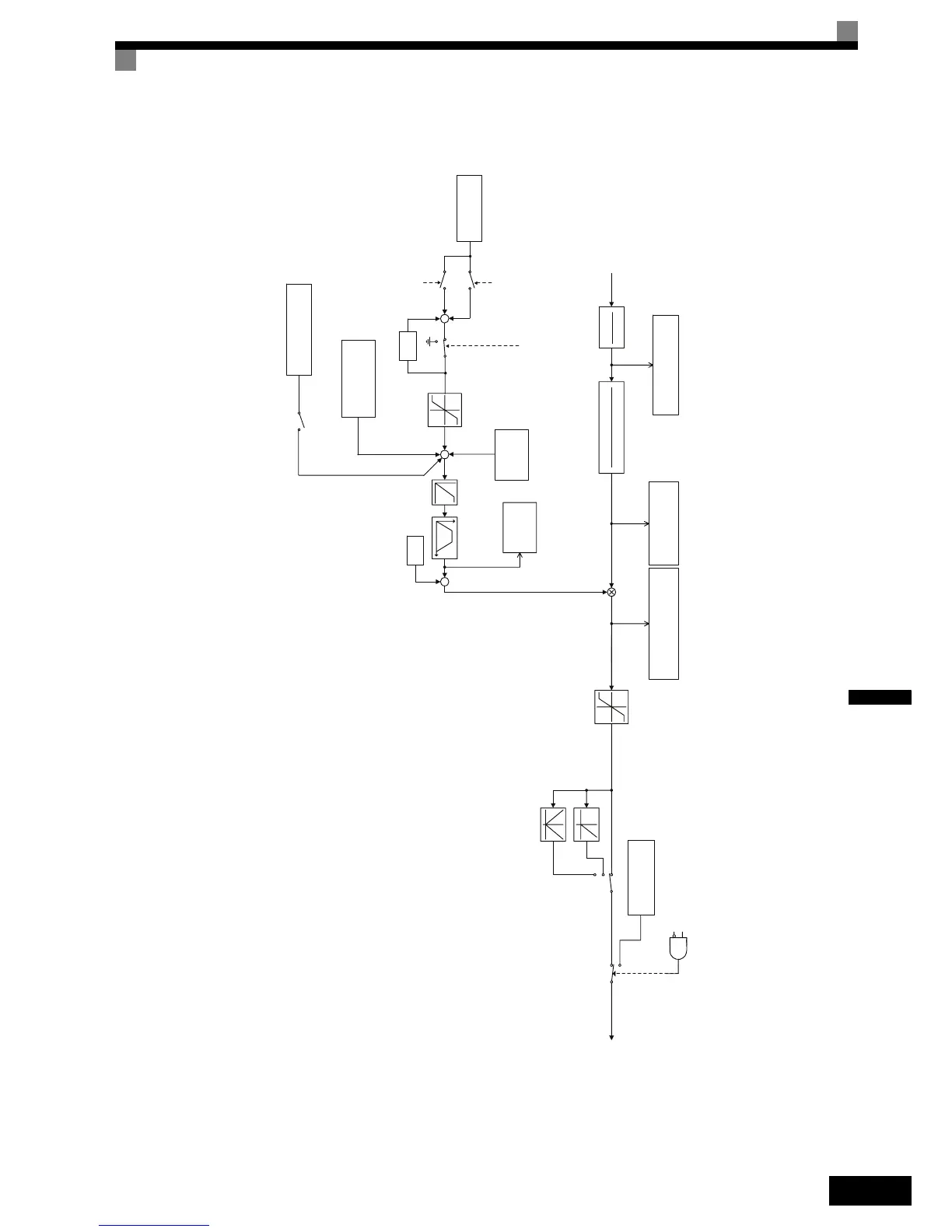

Speed Follower Function Block Diagram
+
+
+
+
(S1-03 x 10000) + S1-05 (S1-04 x 10000) + S1-05
S1-01 > 0
S1-01 = 1
2
3
+
+
+
+
+
100%
Z
-1
E2-04
S1-02 x 2
U1-93
Slave Reference After
Gear Ratio Adjustments
Max. Frequency
E1-04 x 110%
Standard Frequency
Reference
Follower disable (Multi-function Digital Input)
SFS ON
SFS OFF
Frequency Reference
Master speed
reference
Master Encoder
PPR
Motor Poles
U1-90
Master Encoder Reference
Gear Ratio
U1-91
Slave Reference After
Gear Ratio
U1-92
Gear Ratio
Adjustment
S2-03
Gear Ratio
Adjustment
Ramp Time
MOP Adjust Increase
(Multi-function Digital Input)
MOP Adjust Decrease
(Multi-function Digital Input)
S2-04
MOP Change Rate
MOP Reset
(Multi-Function Digital Input)
Memobus Ratio
Adjustment Register
072AH
Analog Input
Analog Ration Adjustment
H3-05/09 = 20
S2-01
Digital Ratio
Adjustment
Upper Limit:
327.67%
Lower Limit: -100.00%
