SOCT Copernicus PLUS - Service Manual

118

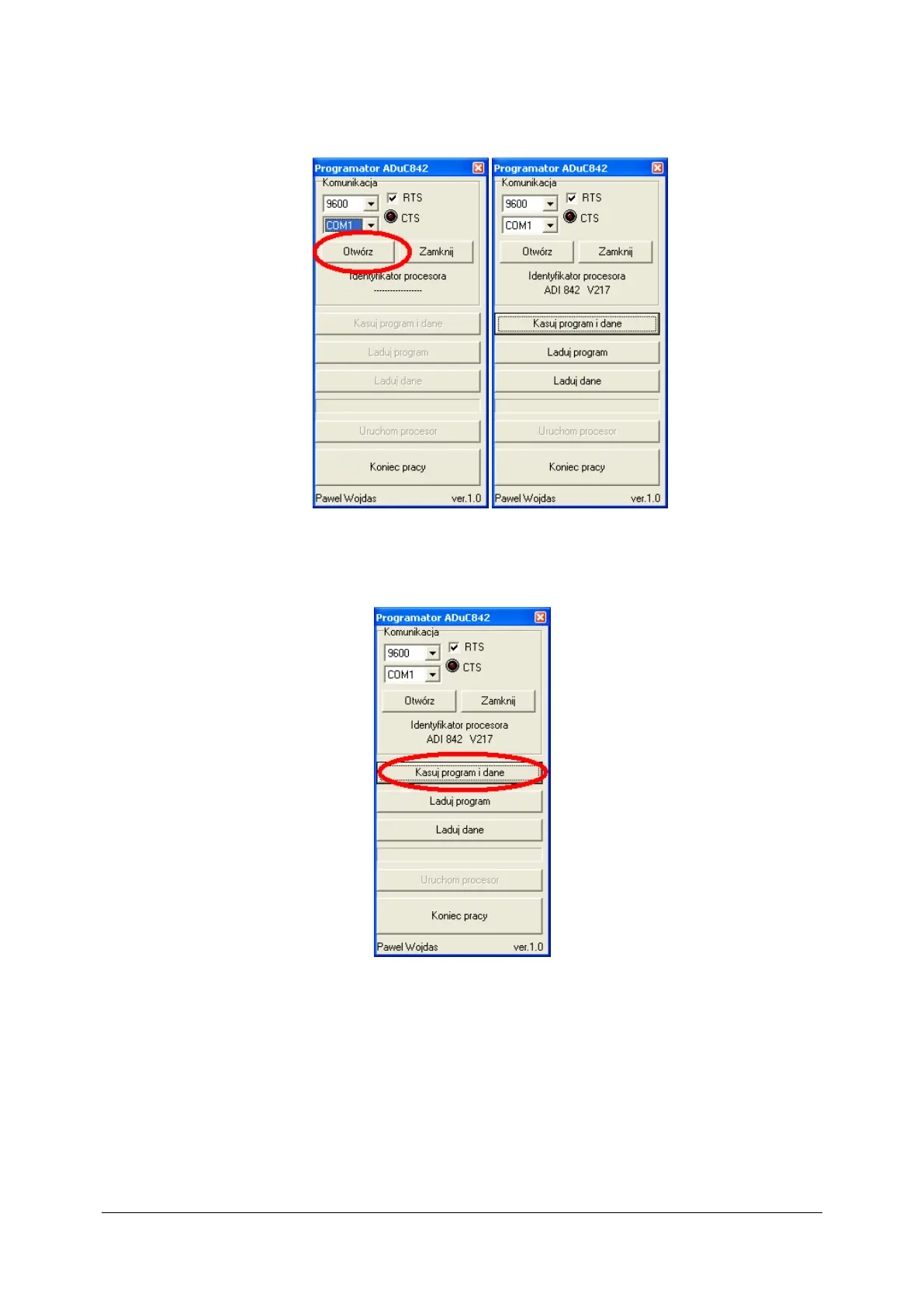

7. Open COM port. Press „Otwórz”. Software will detect microcontroller ADUC842.

8. Delete the microcontroller’s firmware. Press „Kasuj program i dane”. Repeat that step 4

times.
