SOCT Copernicus PLUS - Service Manual

132

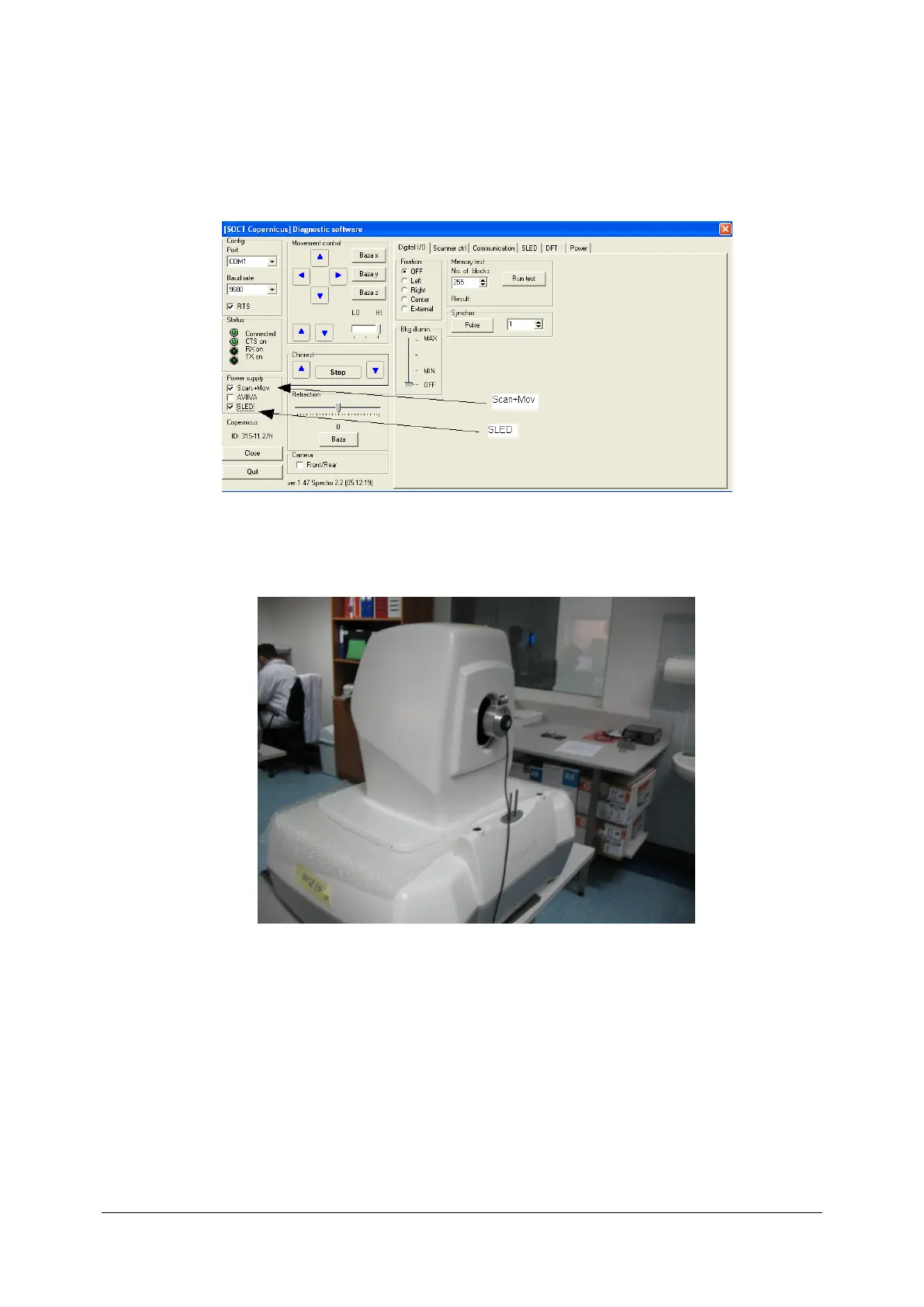

4. Run scantest program.

5. Mark scan+Mov and then SLED.

6. Check value of power on the power meter. (Correct value is 950-1020 μW) .

7. if the power is set correctly you can finish measurement.
