SOCT Copernicus PLUS - Service Manual

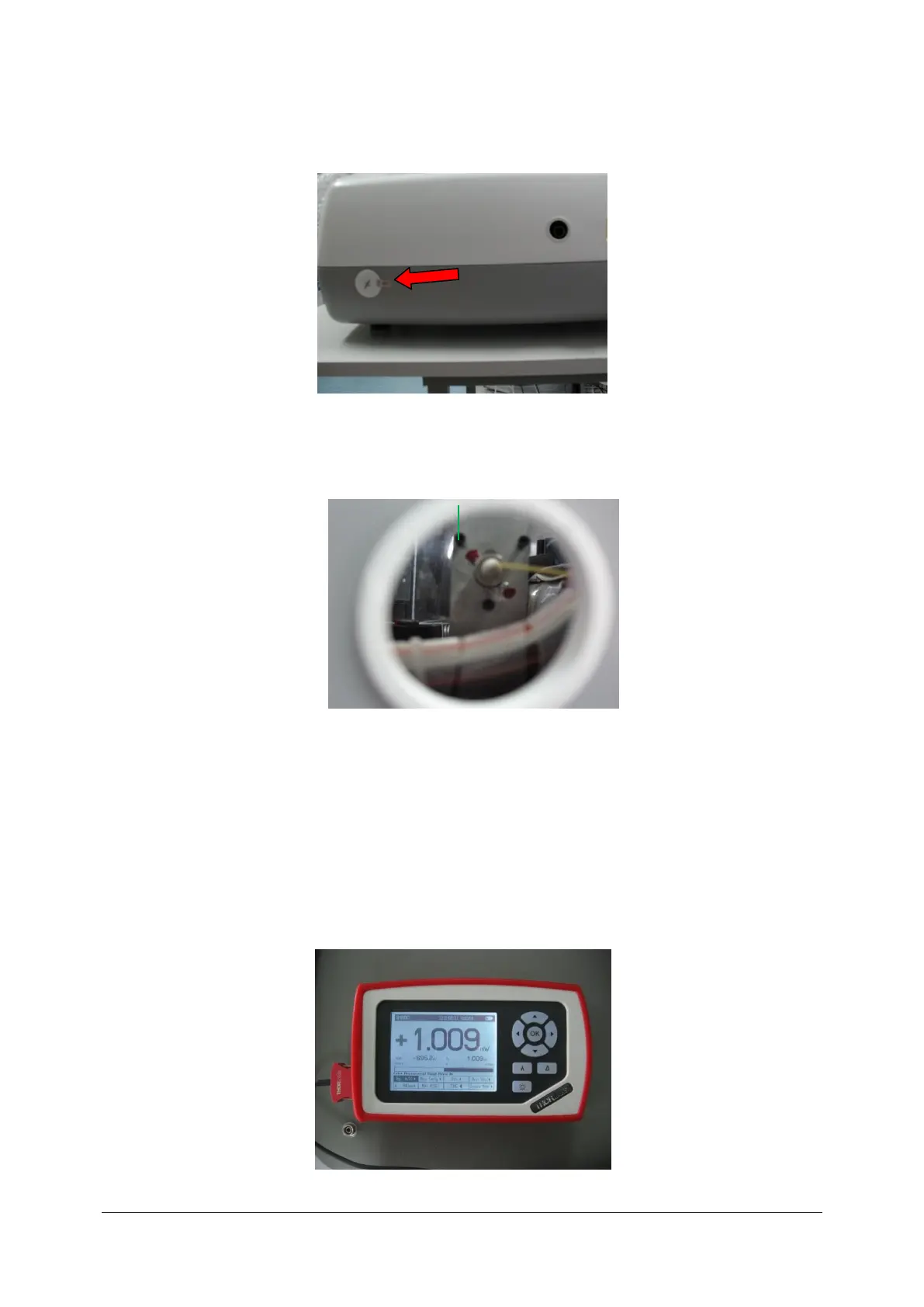

8. If the power value is incorrect . On the back side of SOCT in left down corner is small tap.
Remove it.
9. You see three screws from attenuator.
10. Use a hexagonal tool size 1.5 to rotate first screw about 45 degree, all time you control value
on power meter.
11. Rotate second screw about 45 degree, and the third screw about 45 degree. You should
rotate screws to time when you obtain correctly value on power meter (950-1020μW).
