SOCT Copernicus PLUS - Service Manual
14

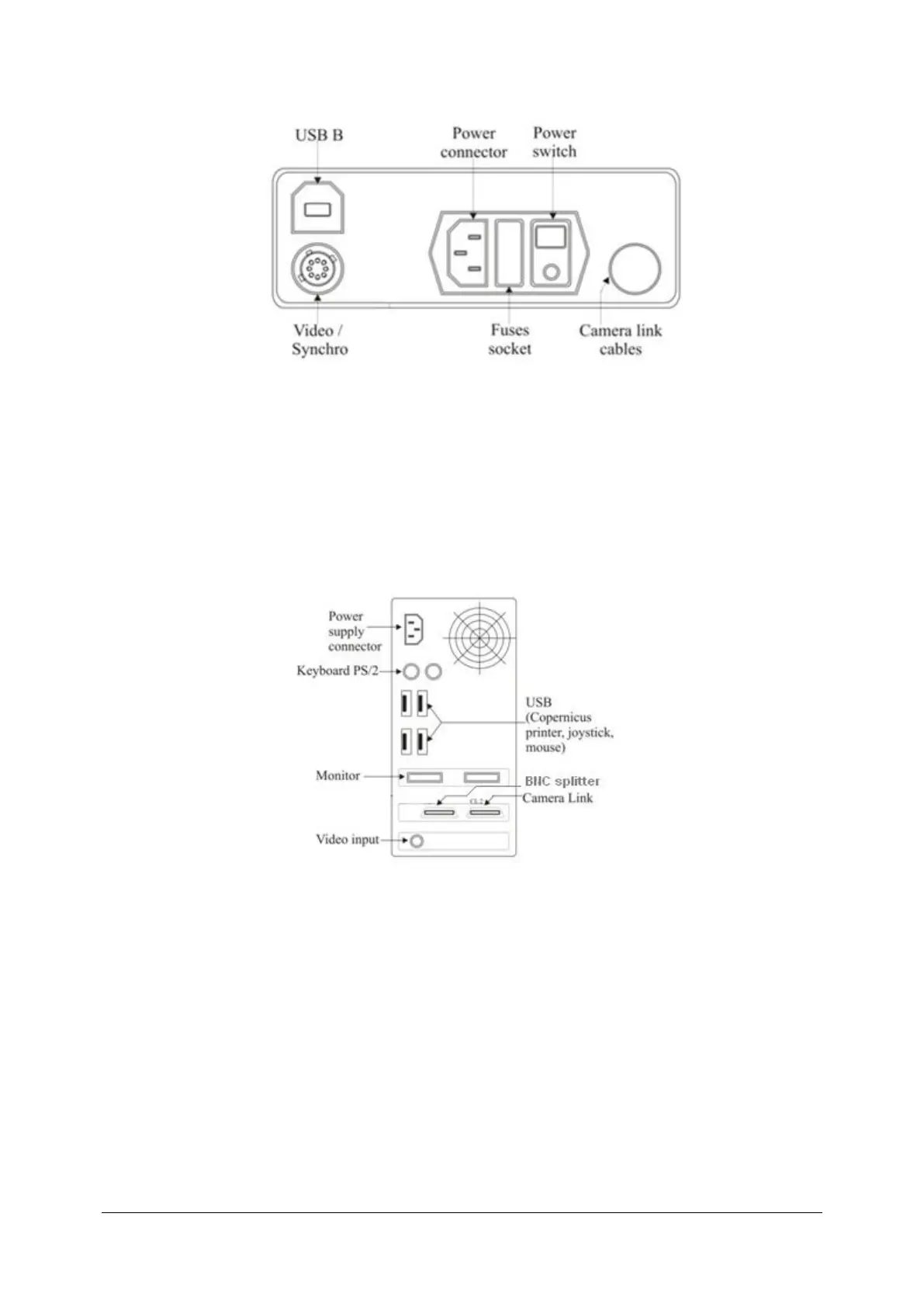

First connect all signal cables described above and after that check the connections once again. In the
next step connect power supply cables.
NOTE: Regarding EMC (Electro-magnetic compatibility) standards all signal cables have to be put
together.
Picture on the next page shows how to connect all cables to the computer.
