SOCT Copernicus PLUS - Service Manual

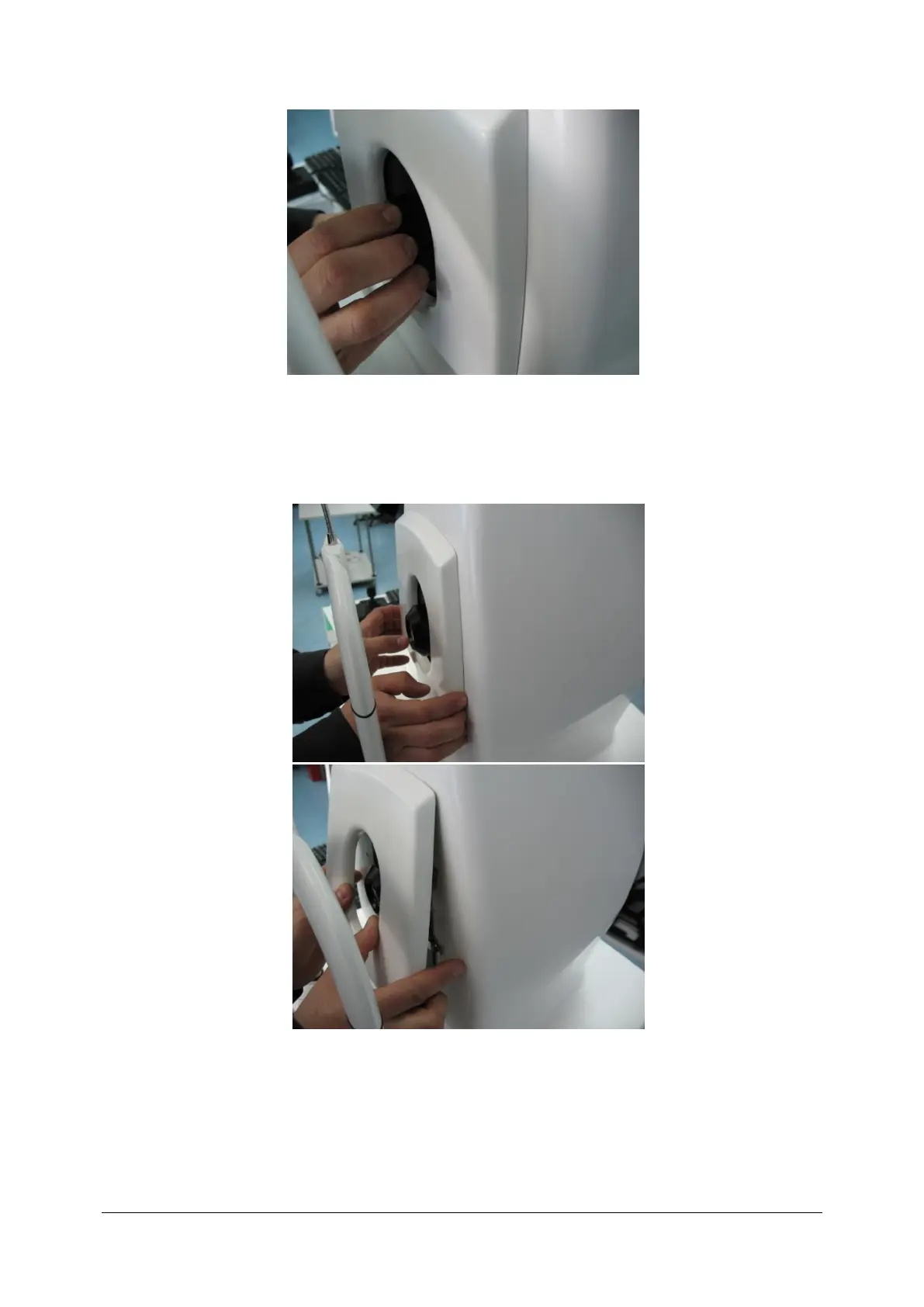

6. Dethatch lens cover. Wipe your hands, so there is no slip, catch frame as showed below and

pull towards to yourself.
