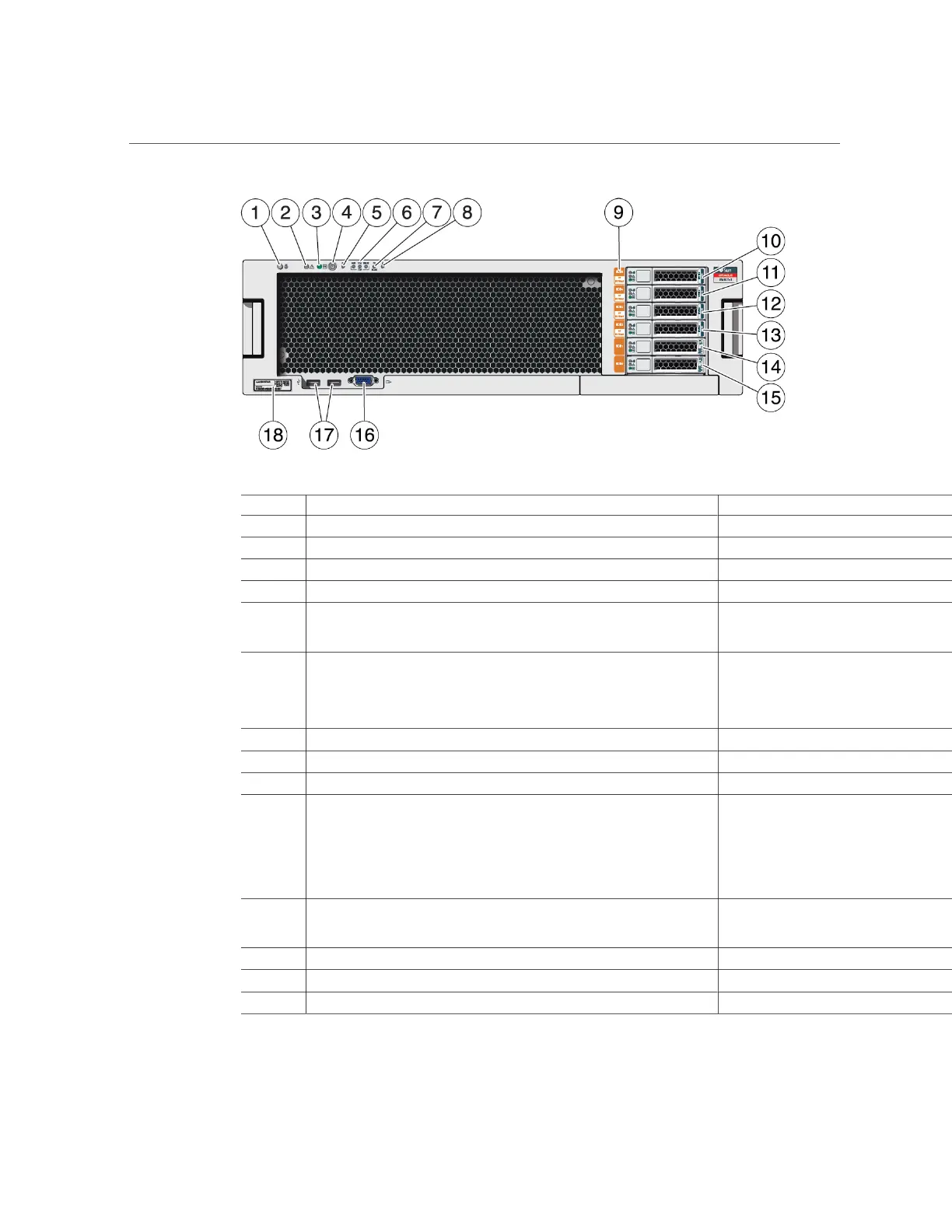

Front Panel Components (Service)
No. Description Links
1 Locate indicator and button (white) “Front Panel Controls and LEDs” on page 34
2 Service Action Required LED (amber) “Front Panel Controls and LEDs” on page 34
3 Power/OK LED (green) “Front Panel Controls and LEDs” on page 34
4 Power button “Front Panel Controls and LEDs” on page 34
5 SP OK indicator (green) “Front Panel Controls and LEDs” on page 34
“Servicing the SPM” on page 129
6 Three Service Action Required LEDs (amber) for fan module (FAN), processor
(CPU), and memory (MEM)
“Servicing Fan Modules” on page 75
“Servicing the Motherboard” on page 147
“Servicing Memory Risers and DIMMs” on page 89
7 PS Service Action Required LED (amber) “Servicing Power Supplies” on page 83
8 Overtemp LED (amber) “Front Panel Controls and LEDs” on page 34
9 Drive labels
10
11
12
13
HDD 5 or NVMe 3
HDD 4 or NVMe 2
HDD 3 or NVMe 1
HDD 2 or NVMe 0
“Servicing Drives” on page 63
14
15
HDD 1
HDD 0
“Servicing Drives” on page 63
16 DB-15 video connector “VGA Port” in SPARC T8-2 Server Installation Guide
17 Two USB 2.0 connectors “USB Ports” in SPARC T8-2 Server Installation Guide
18 Serial number
14 SPARC T8-2 Server Service Manual • June 2019
