Install the Drive Backplane

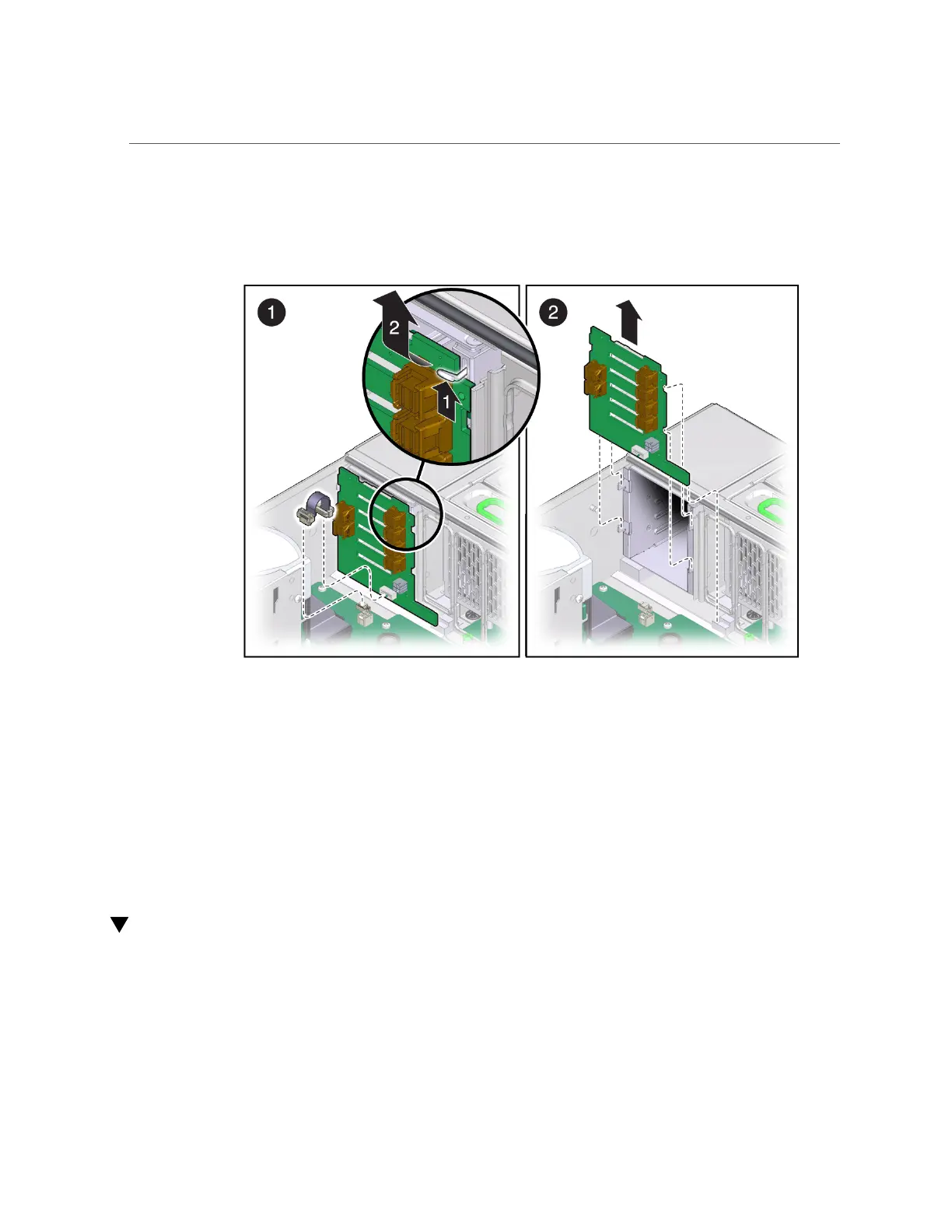

Unplug the two SAS cables, power cables, ribbon cable, and four NVMe drive

cables (if installed) from the drive backplane (panel 1).

Push up on the wire tab in the upper corner of the drive backplane (panel 1).

Swing the drive backplane back and out of the chassis (panel 2).

Install a new drive backplane.

See “Install the Drive Backplane” on page 160.

Related Information

■

“Install the Drive Backplane” on page 160

Install the Drive Backplane

This is a cold-service procedure that must be performed by qualified service personnel. Power

down the server completely before performing this procedure.

160 SPARC T8-2 Server Service Manual • June 2019
