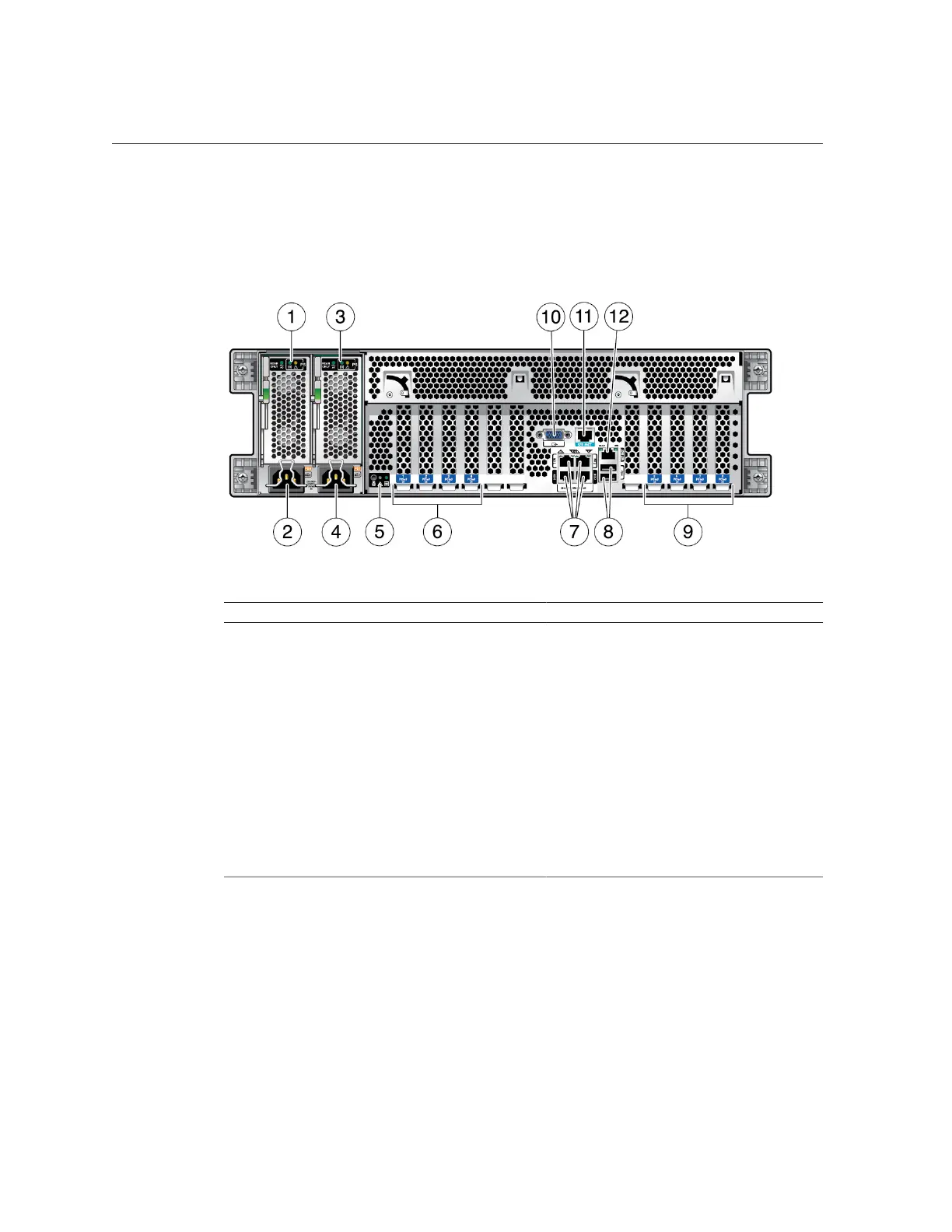

Rear Panel Components (Service)
Rear Panel Components (Service)
No. Description Links
1 Power supply 0 status indicator LEDs “Servicing Power Supplies” on page 83
2 Power supply 0 AC inlet
3 Power supply 1 status indicator LEDs “Servicing Power Supplies” on page 83
4 Power supply 1 AC inlet
5 Server status LEDs “Rear Panel Controls and LEDs” on page 36
6 PCIe card slots 1 to 4 (left to right) “Servicing PCIe Cards” on page 119
7 NET 10/100/1000 ports (4): NET 0 to NET 3
8 USB 3.0 connectors (2)
9 PCIe card slots 5 to 8 (left to right) “Servicing PCIe Cards” on page 119
10 DB-15 video connector
11 SER MGT/RJ-45 serial port
12 NET MGT port
