Install the Fan Board
5.

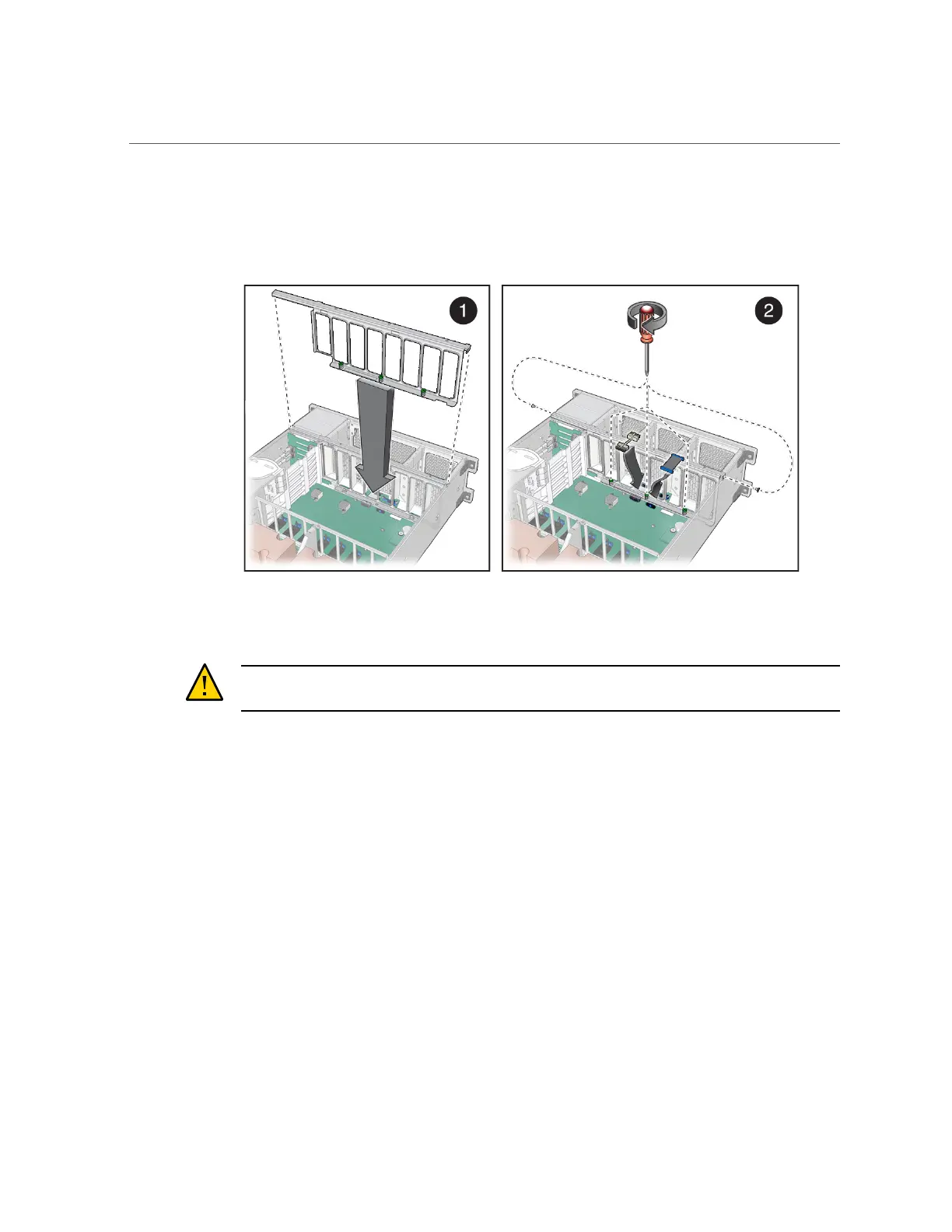

Reposition the front memory riser guide, routing the fan board and power cable
through the riser guide (panel 1).
6.
Plug the fan board cable and power cable into the connectors on the
motherboard (panel 2).
Caution - When connecting the ribbon cable to the motherboard, take care to center the cable
on the connector before inserting the cable.
7.
Secure the fan board by reinserting and tightening the two screws on each side
of the outside of the chassis (panel 2).
8.
Tighten the three captive screws to hold the front memory riser guide in place
(panel 2).
9.
Reinstall all fan modules.
See “Remove a Fan Module” on page 77.
10.
Reinstall all memory risers.
See “Install a Memory Riser” on page 104.
11.
Return the server to operation.
See “Returning the Server to Operation” on page 171.
144 SPARC T8-2 Server Service Manual • June 2019
