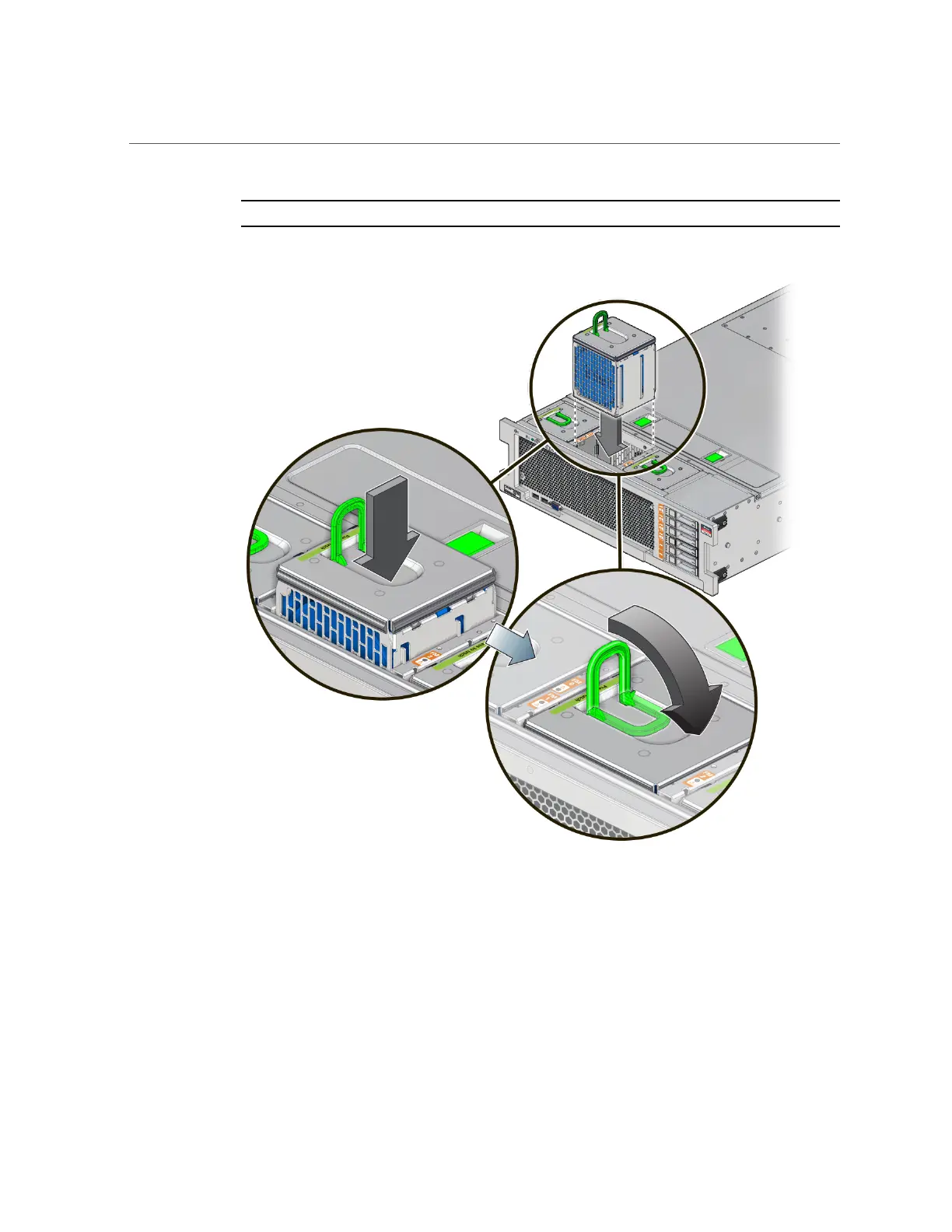

Install a Fan Module

Note - Fan modules are keyed to ensure that they are installed in the correct orientation.

Apply firm pressure to fully seat the fan module.

You hear a click when the fan module is properly seated.

Return the server to the normal operating position.

See “Return the Server to the Normal Operating Position” on page 173.

80 SPARC T8-2 Server Service Manual • June 2019
