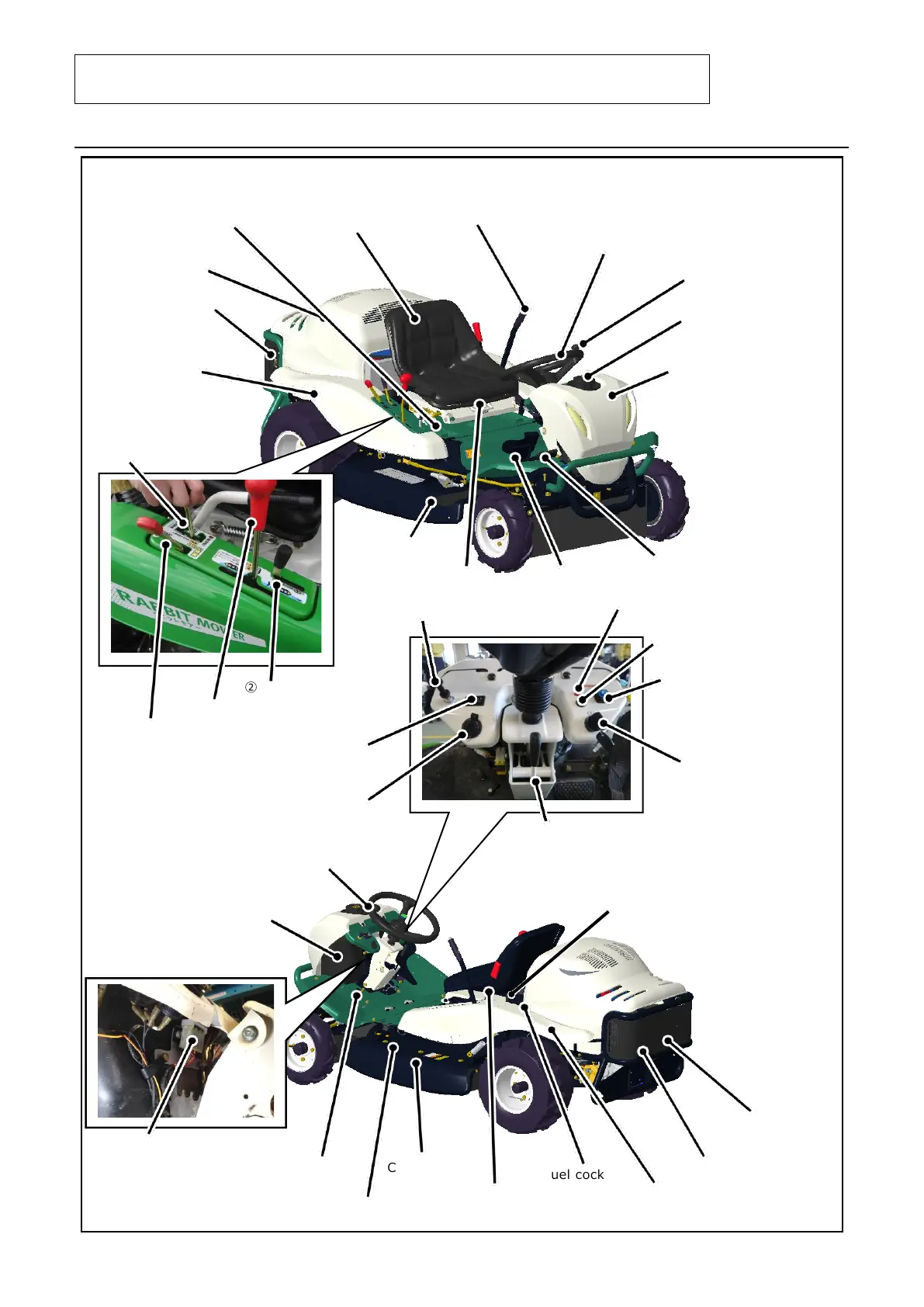

2. Names and functions of each part
2.1Name of each part
Engine bonnet
⑦Shift lever (Hand manual)
⑫Seat
handle
HST Tank
Fuel Tank Cap
Fuel tank
②Throttle lever
Side cowl (right)
Battery
⑦Change pedal
⑰Pilot lamp (green)
⑱Hour meter
①Engine switch
Fuel gauge
③Choke lever
Cutting deck
Brake stopper
⑩Parking brake pedal
④Light switch
for movement
Sub handle
Muffler exhaust port
Side cowl (L)
⑥Blade clutch lever
Fuel cock
⑨Diff-Lock lever
⑤Cutting height adjustment lever
(Stepless with assistance)
⑪Knife cover
Rear frame
⑬Handle tilt lock lever
⑯Engine oil warning light (Red)
⑧Sub Change lever
Front cowl
Suspension adjustment bolt
⑮12V power socket
⑭FuseBOX
Slow blow fuse
(Lower right of seat bracket)
⑲Deck cleaning pipe
