5. 点検・整備・調整
- 43 -

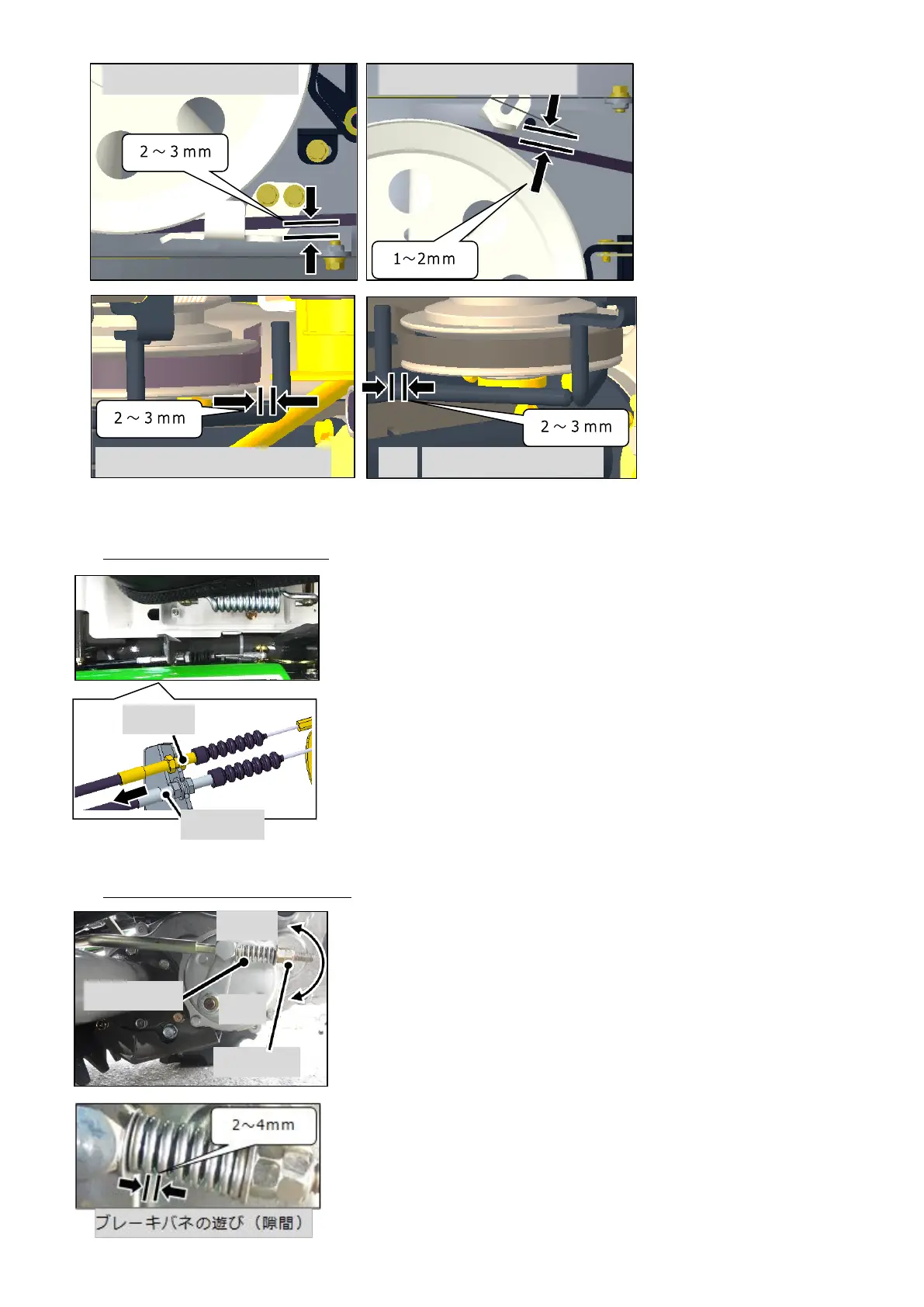

④ Knife brake adjustment
① The knife will stop within about 5 seconds when the knife
clutch lever is in the "off" position. If it does not stop, loosen
the lock nut and move the brake wire adjust nut in the
direction of the arrow to adjust. (Brake drag may cause the
product to malfunction.) After adjustment, please fix it
securely with the lock nut.
② If it cannot be adjusted, the brake shoes may be worn. Ask
your dealer for inspection and replacement.
⑤ Parking brake adjustment
① The parking brake is on the left rear of the mission and
should be adjusted with the brake rod which connected to it.
② Adjustment is when the parking brake pedal is fully
depressed (when the pedal is locked with the brake stopper)、
Loosen the lock nut so that the rear wheel "locks" and adjust
with the adjusting nut. If you turn the adjust nut to the right
and tighten it, it will start to work faster, and if you loosen it,
it will work slower. Adjust so that the play of the brake spring
is about 2 to 4 mm, and fix the locknut securely after
adjustment.
