2.各部の名称とはたらき
- 13 -
⑥Blade clutch lever
Turns the Blade on (rotates) and turns off (stops). The Blade clutch lever cannot be operated
when the cutting height adjustment lever is in the "move" position.

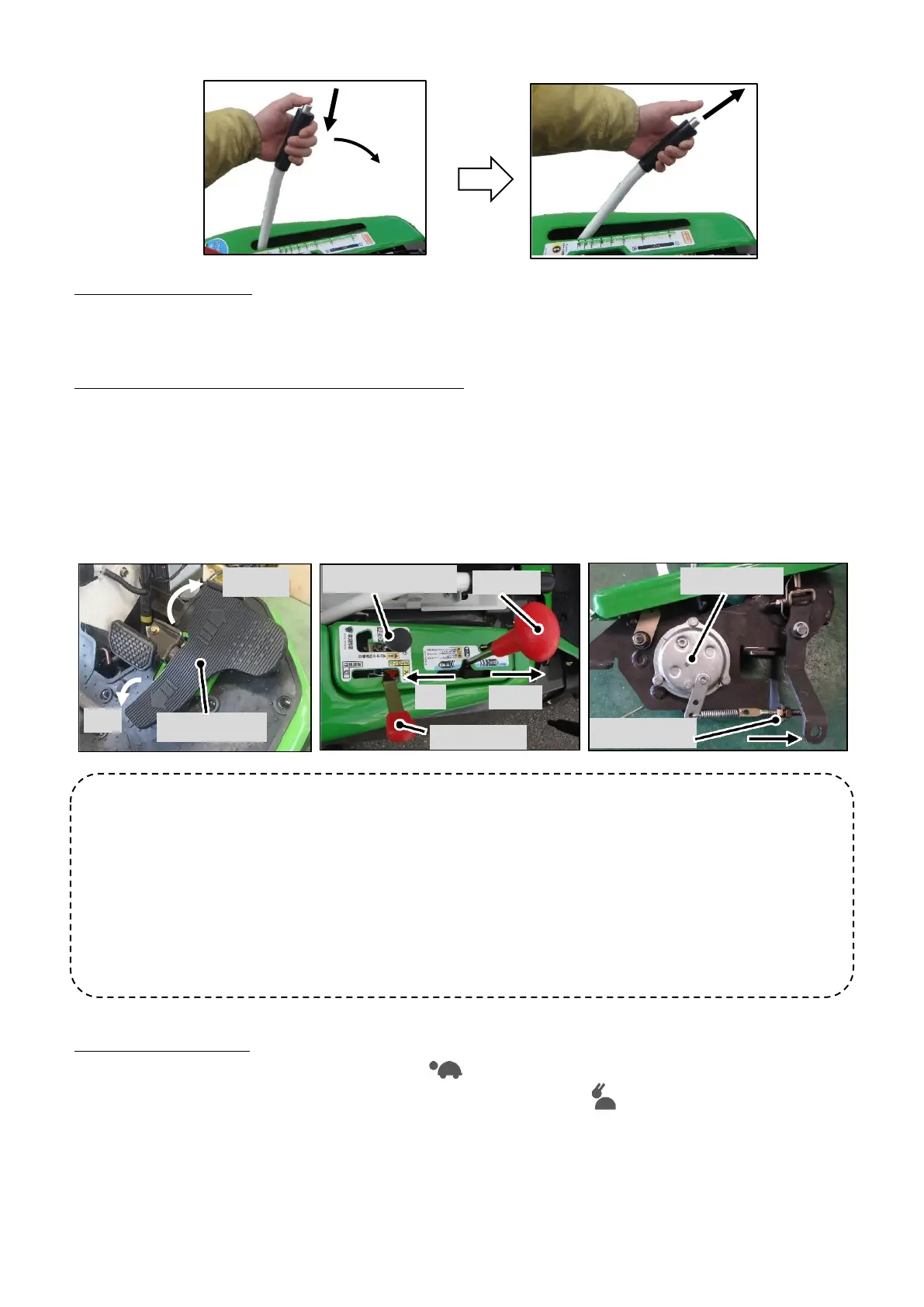

⑦Change pedal・Shift lever (Hand manual)
It is used for driving / stopping operation of this machine, driving direction and its speed
adjustment. Stepping the change pedal forward from the neutral position will move it
forward, and stepping it toward the heel will move it backward.
The speed can be adjusted steplessly depending on the stepping angle. If you do not step on
it, the pedal will automatically return to neutral.
Reference；
1) If you want to make it more difficult to return the shift lever while driving, tighten the
change brake adjustment screw (see the photo on the upper right) in the right direction
(arrow direction) to apply the brake and make it difficult to return. But please note that
it will also be heavy.
2) The change pedal moves in tandem only when the shift lever is tilted to the right and
inserted into the guide groove. Other than that, the change pedal works alone.
⑧Sub Change lever
For safety reasons, use only in the slow "mowing" position when mowing.
When moving, it is also possible to switch to the high-speed "move" position.
Alos for safety, work on slopes should be 10 ° or less.
For operation, make sure to insert the lever to the notch of the shift guide at each position.
In the neutral "N" position, it can be pushed Machine without starting the engine.
