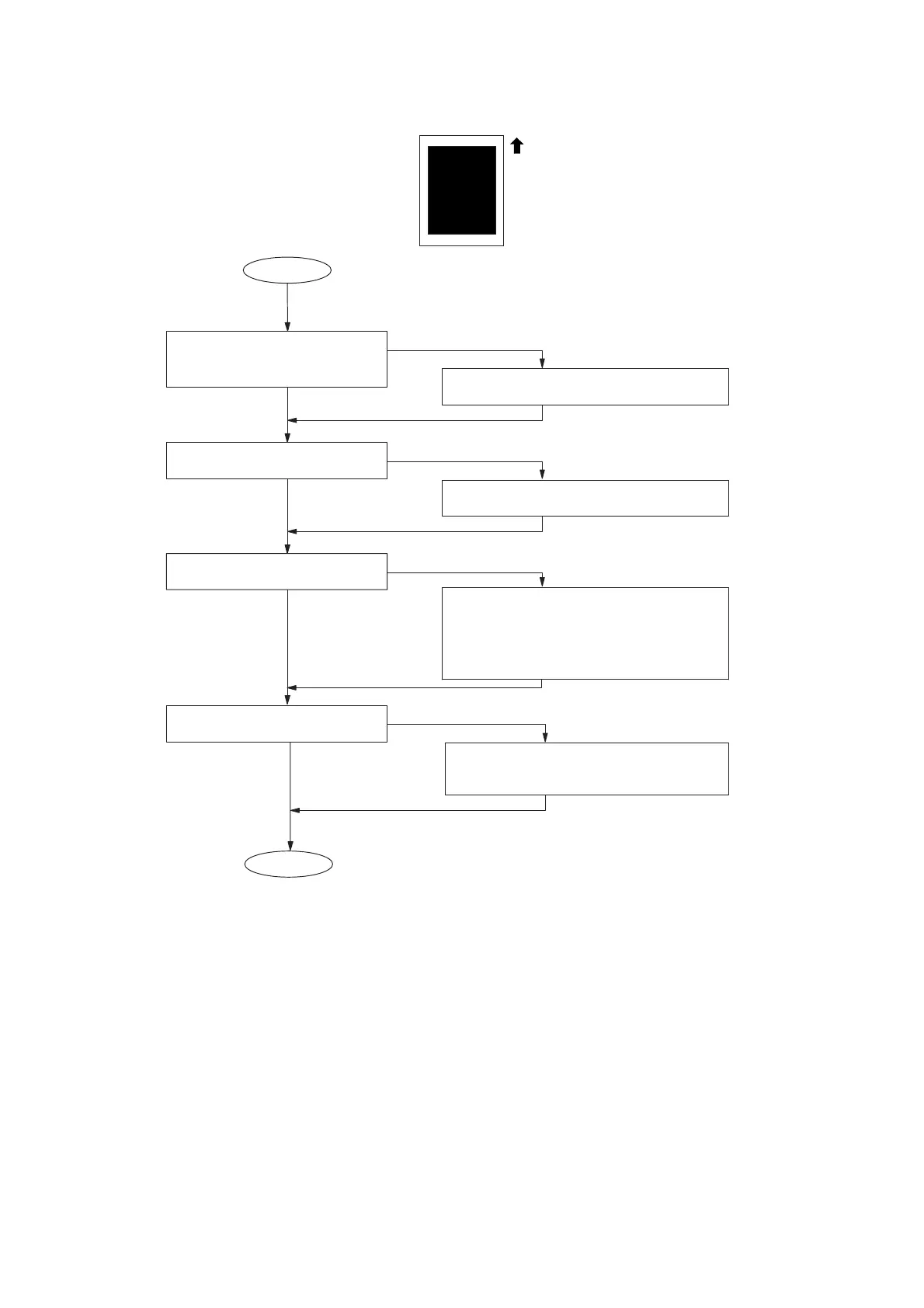

4.3. Printed Copy Quality Problems
4.3.1. Black Copy
START
Yes
No
Check the Scanner mechanism.
Is the PS normal?
Is the SPC PCB normal?
Is the OPC Drum/Developer
Unit operational?
Replace the OPC Drum/Developer Uni
t.
1. Check all connectors, and voltages
on the PS.
3. Replace the PS.
2. Check the contacts between
PS, and Developer Unit.
Yes
No
Yes
Yes
No
No
1. Check all connectors, and voltages
on the SPC PCB.
2. Replace the SPC PCB.
END
Paper Travel
Is the Test Pattern printout in
Copier F1 Mode, or Fax
Service Mode 3 normal?
