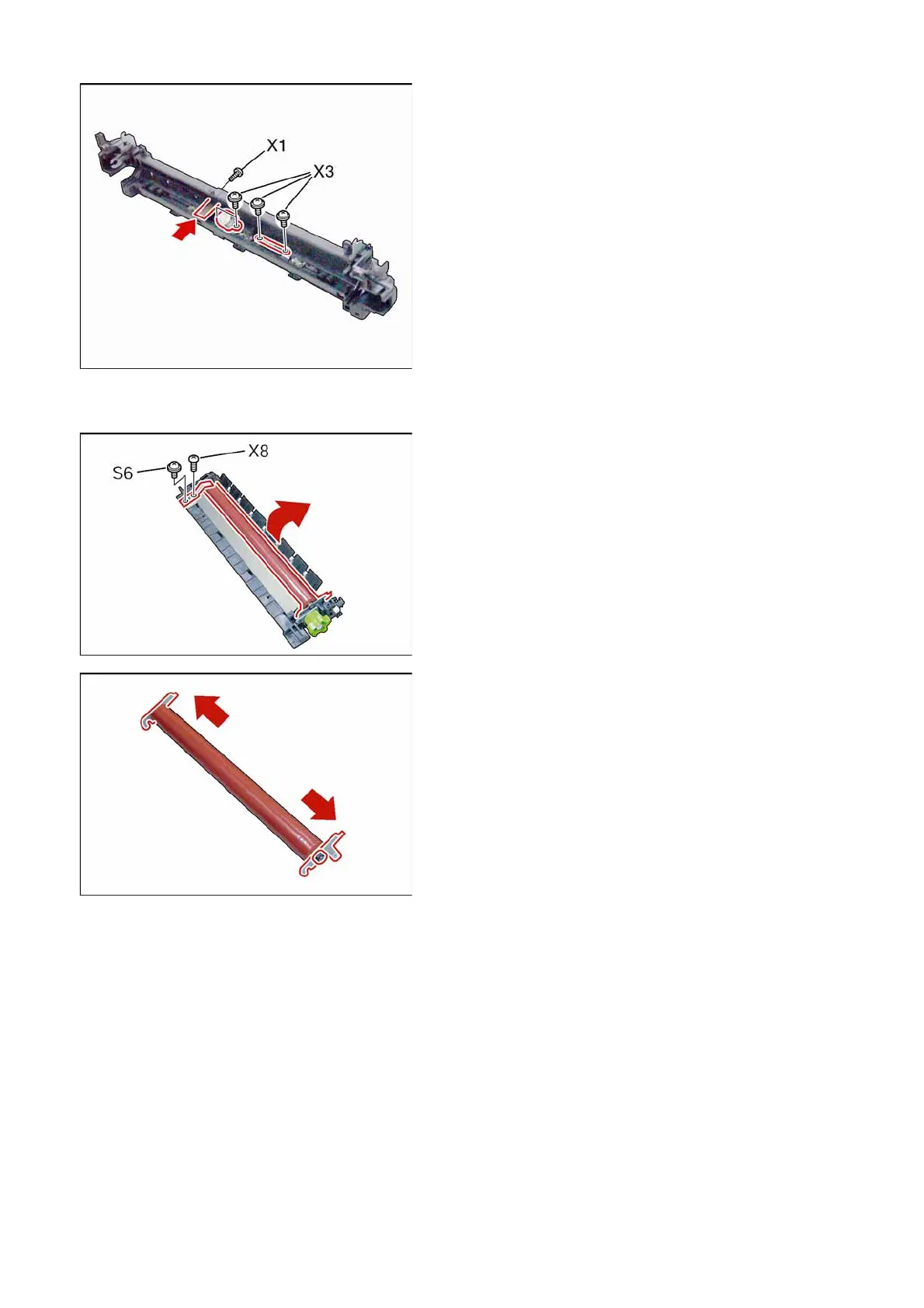

(30) Remove 2 Screws (X3).
(31) Remove the Thermostat (1120).
(32) Remove 2 Screws (X3).
(33) Remove the Thermal Fuse (1118).
(34) Remove 1 Screw (X1).
(35) Remove the Thermistor Assembly (1125).
<Cleaning Thermostat>
Clean the surface of the Thermostat only with a
Dry soft cloth.
<Cleaning Thermistor Assembly>
Clean the surface of the Thermistor Assembly only
with a Dry soft cloth.
(36) Remove 2 Screws (S6, X8).
(37) Remove the Ground Plate 2 (1024).
(38) Remove the Pressure Roller (1021) Assembly.
(39) Remove the Front Pressure Plate (1019), and
the Rear Pressure Plate (1018).
(40) Remove 2 Pressure Roller Bushings (1020).
Note:
Do not scratch the surface of the Pressure Roller
when removing, or reinstalling it.
<Cleaning Pressure Roller>
Clean the surface of the Pressure Roller with a soft
cloth, saturated with Water.
