Panasonic DP-8020E

44
SEP 2006
Ver. 1.0
DP-8020E/8020P/8016P

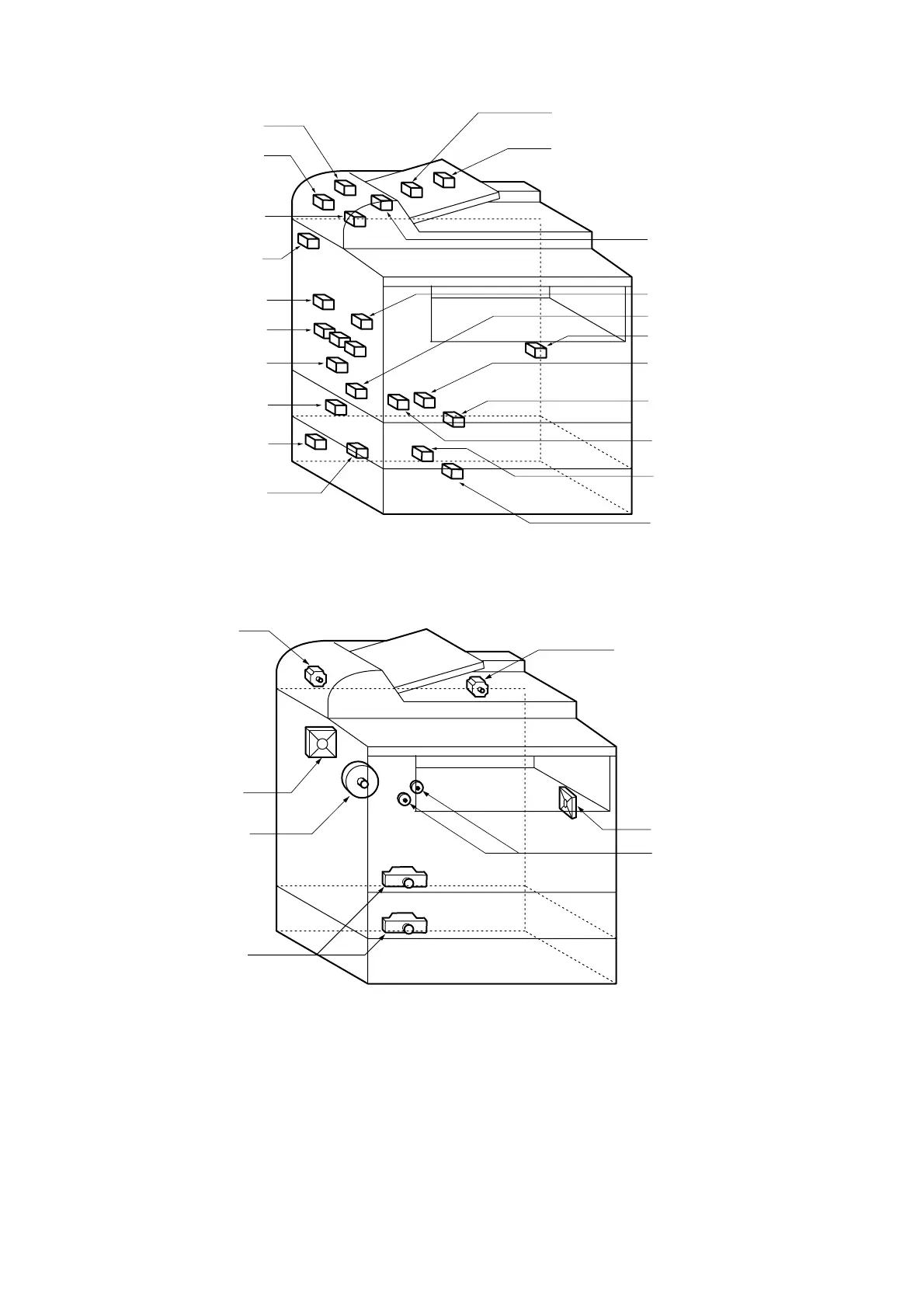

1.7. Sensors
1.8. Fans and Motors
Note:
Numbers in parenthesis "(xxxx)" represent the Part Reference Number(s) found in the Parts Manual for
your quick reference.
Sheet Bypass Sensor 1 (131)
Sheet Bypass Sensor 2 (131)
2nd Paper Tray Jam Cover
Open Sensor (131)
2nd Paper Tray Paper
Path Sensor (131)
ADF Original Length Sensor 2 (131)
Fuser Unit Sensor (131)
Registration Sensor (131)
ADF Original Length Sensor 1 (131)
ADF Sensor 1 (131)
ADF Sensor 2 (131)
ADF Sensor 3 (131)
1st Paper Tray Detection
Sensor (131)
2nd Paper Tray Detection
Sensor (131)
ADF Cover Open
Sensor (131)
Home Position Sensor (131)
2nd Paper Tray NP
Sensor (131)
2nd Paper Tray Upper
Limit Sensor (131)
Mechanical Counter (821)
1st Paper Tray NP
Sensor (131)
1st Paper Tray Upper
Limit Sensor (131)
Toner Waste Container
Sensor (2806)
Scanning Motor (316)
Rear Fan (815)
Drive Motor (1511)
ADF Motor
(i-ADF: 2601)
(ADF: 1905)
Toner Motor (1503)
Lift DC Motor (3132)
PS Fan (816)
