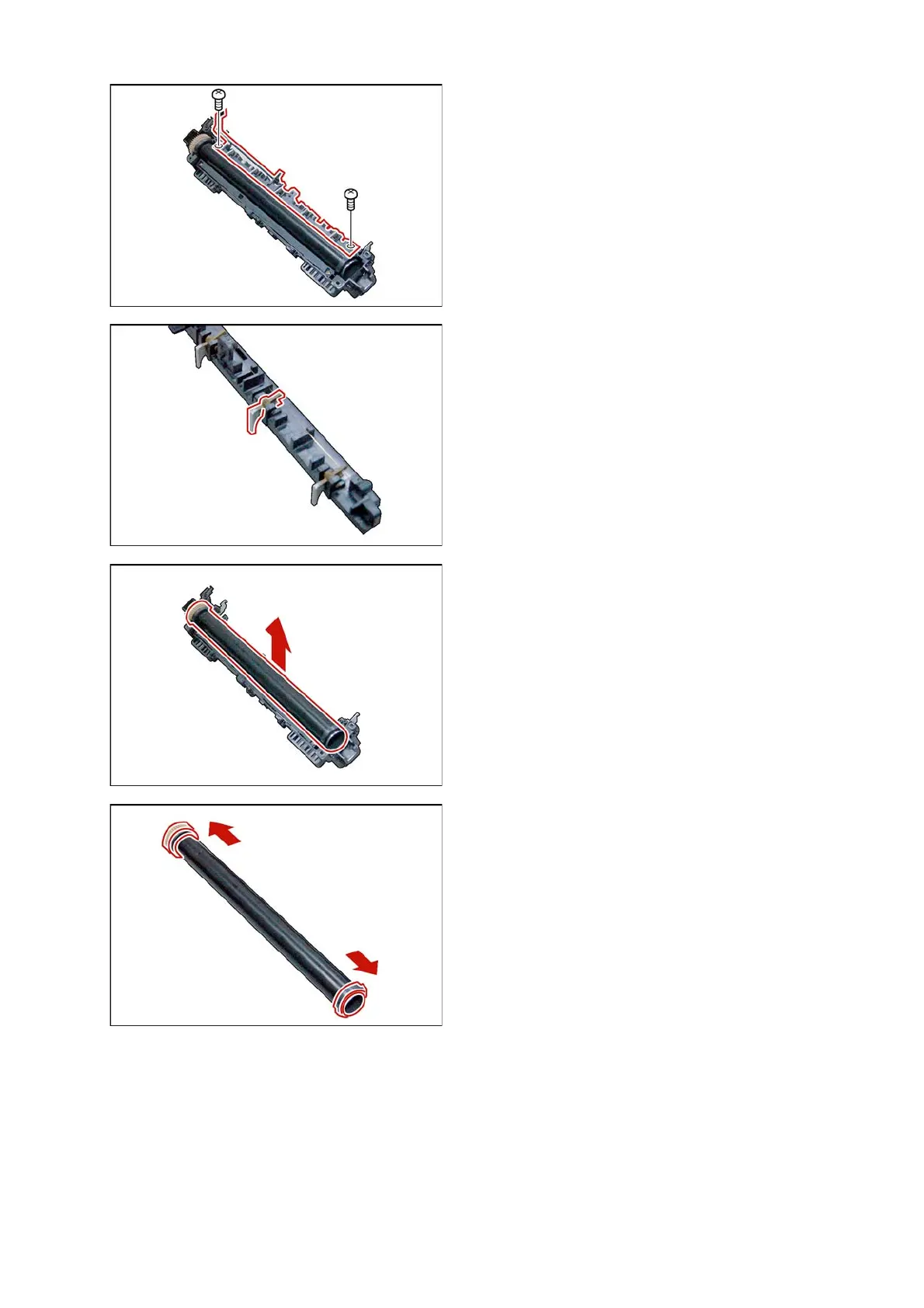

(23) Remove 2 Screws (X8).
(24) Remove the Finger Base (1108) Assembly.
(25) Remove 5 Separators (1109).
<Cleaning Separators>
Clean the Separators with a Dry soft cloth.
(26) Remove the Fuser Roller (1115) Assembly.
(27) Remove the 2 C-Rings (1113).
(28) Remove the E39 Heat Roller Gear (1112).
(29) Remove the 2 Fuser Roller Bushings (1114).
Note:
Exercise care not scratch the surface of the
Fuser Roller when removing, or reinstalling it.
<Cleaning Fuser Roller>
Clean the surface of the Fuser Roller with a soft
cloth, saturated with Water.
