4.4.3.2. i-ADF Feed Skew Adjustment
1. Front Page Skew Adjustment
Using a lined original (about 20 lb (80 g/m
2
) weight pager), make a copy from the ADF / i-ADF to check
for feeding alignment.
Adjust the Feed Skew Adjustment "A" downwards,
and recheck the feeding alignment. Readjust as
needed.
Adjust the Feed Skew Adjustment "A" upwards, and
recheck the feeding alignment. Readjust as needed.

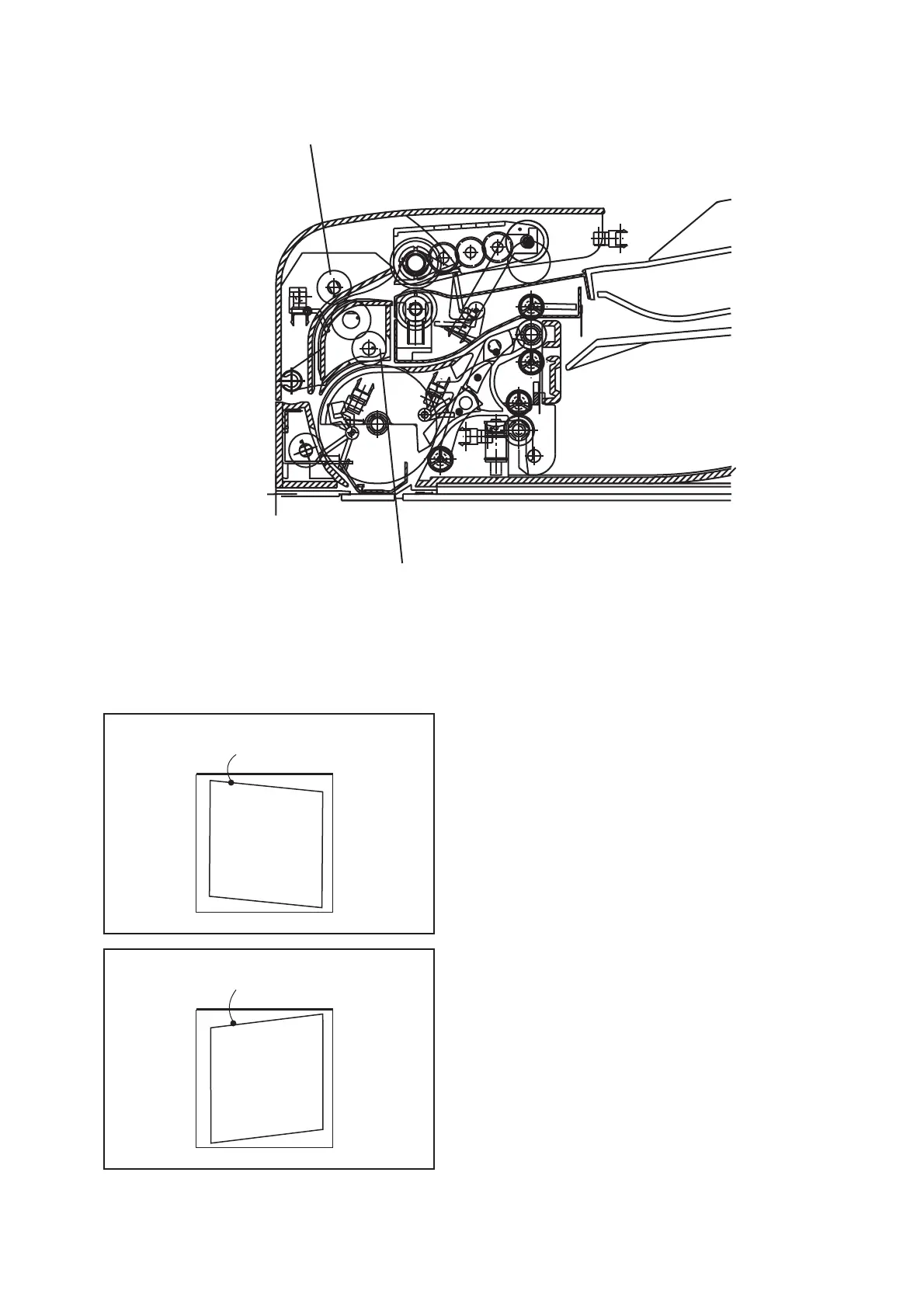

Pinch Roller (1838)
(Reverse Registration, or Feed Skew Adjustment "B")
Pinch Roller (1838)
(Feed Skew Adjustment "A")
Document Leading Edge
< Example of Printed Image >
A
Document Leading Edge
< Example of Printed Image >
A
