9.2.3. Ethernet
Ethernet is a very popular local area network architecture based on the CSMA/CD access method. The
original ethernet specification was the basis for the IEEE 802.3 specifications. Typically, ethernet networks
can use a bus physical topology, although, many varieties of ethernet such as 10Base-T uses a star
physical topology and a bus logical topology. (Microsoft uses the term "star bus topology" to describe
10Base-T)

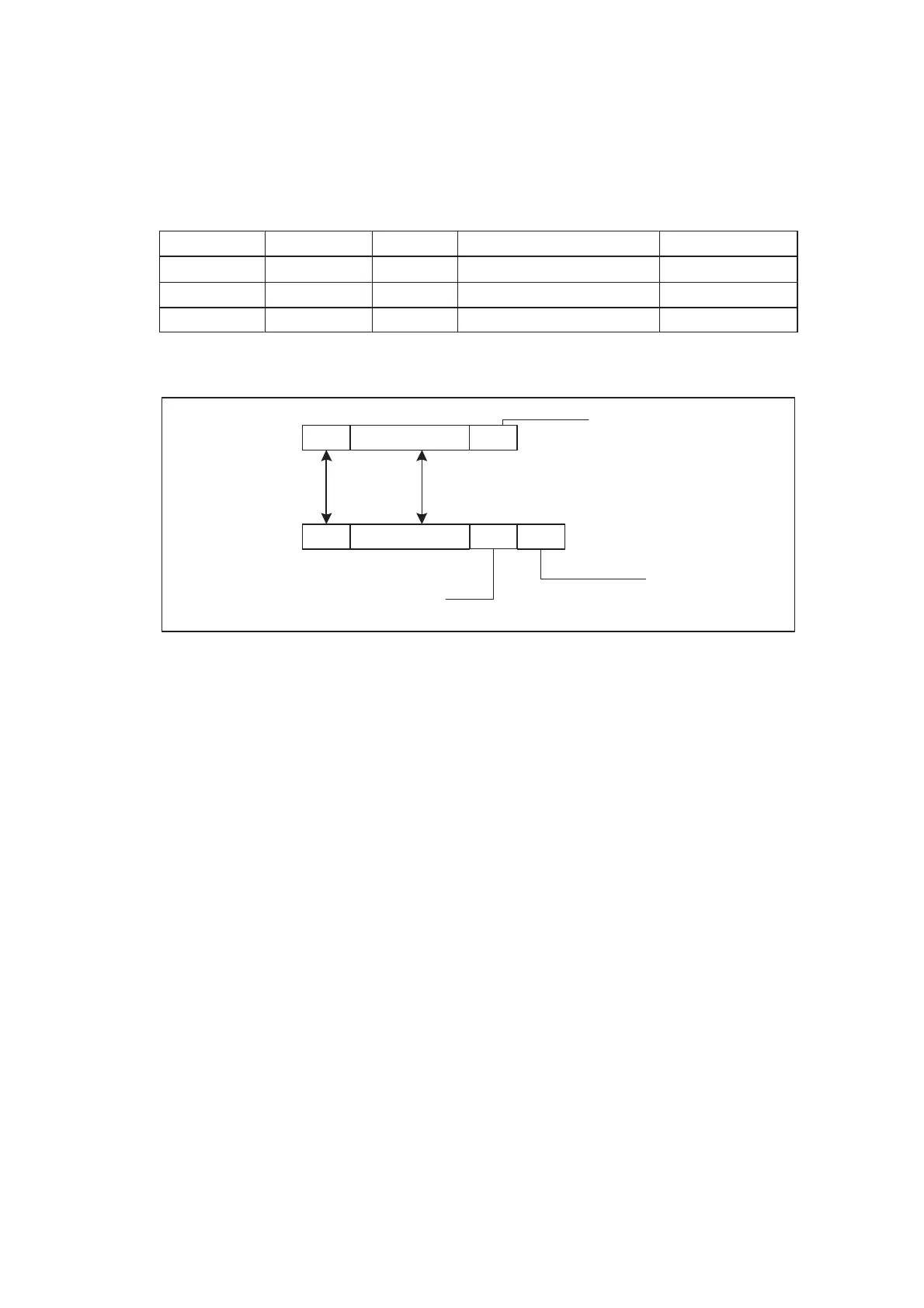

Speed (bps) Topology Cable Type Max Length
10Base-5 10M Bus Yellow cable 500 m (1640 ft)
10Base-T 10M Star Twisted Pair (Cat. 3, 4, 5) 100 m (328 ft)
100Base-TX 100M Star Twisted Pair (Cat. 5) 100 m (328 ft)
802.3 (CSMA/CD) Network Type
10
BASE
5
10
BASE
-
T
Logical speed
(Mbps)
BASE : baseband (digital)
BROAD: broadband (analog)
Max length (x 100m)
TP Twisted Pair
hyphen "-" means type of cable
no "-" means max length
Ethernet Configuration
