DP-8020E/8020P/8016P
2.2.6. Fuser Unit
CAUTION:
To prevent from getting burned, do not install, remove, clean, or make adjustments when the Fuser Unit
is hot.

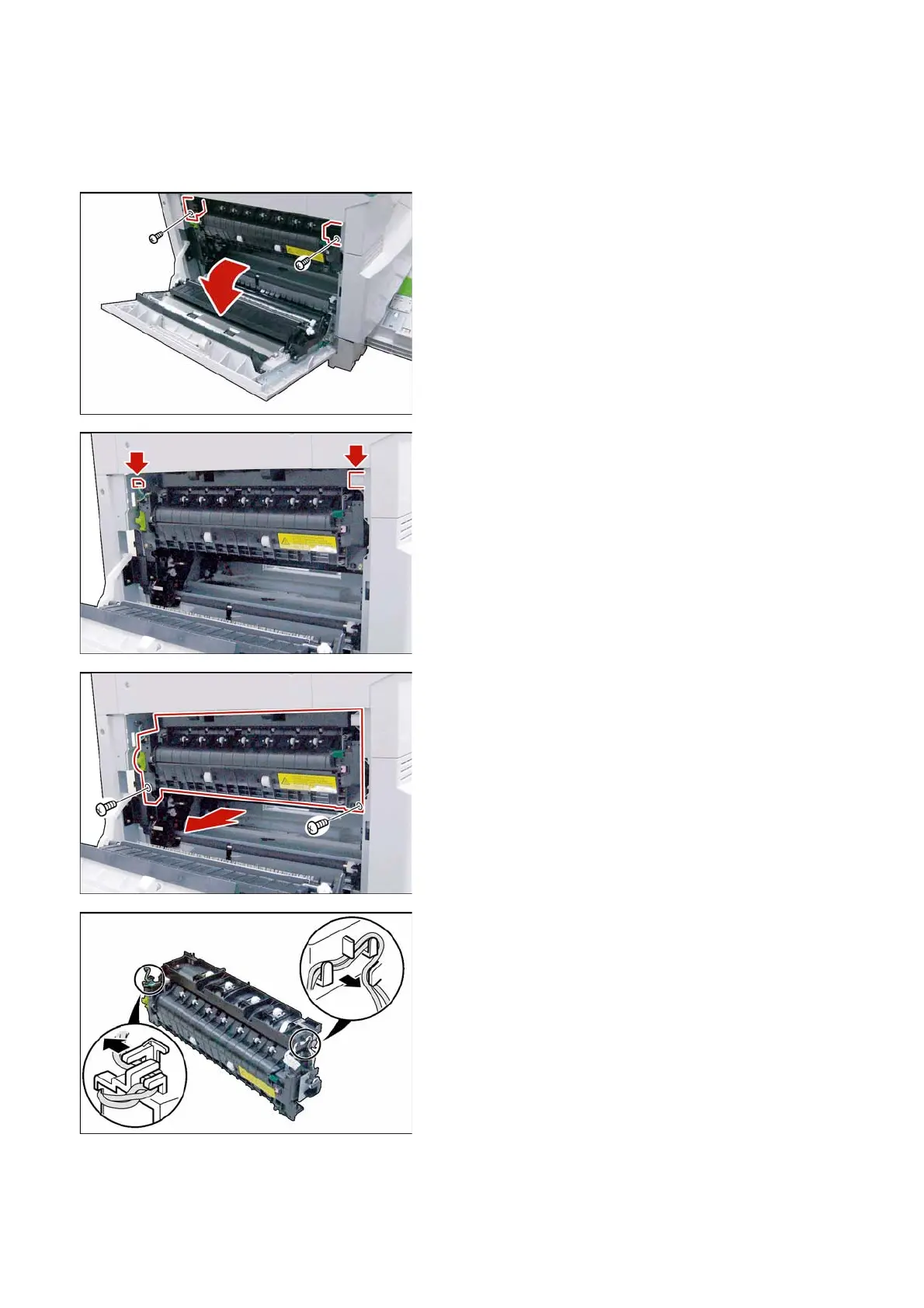

(1) Open the Left Cover.
(2) Remove 2 Screws (X8).
(3) Remove the Rear Fuser Cover (1006), and the
Front Fuser Cover (1007).
(4) Disconnect 2 Harnesses.
(5) Remove 2 Screws (Y5).
(6) Remove the Fuser Unit.
(7) Release 2 Harnesses from Latch Hooks.
To Next Page
