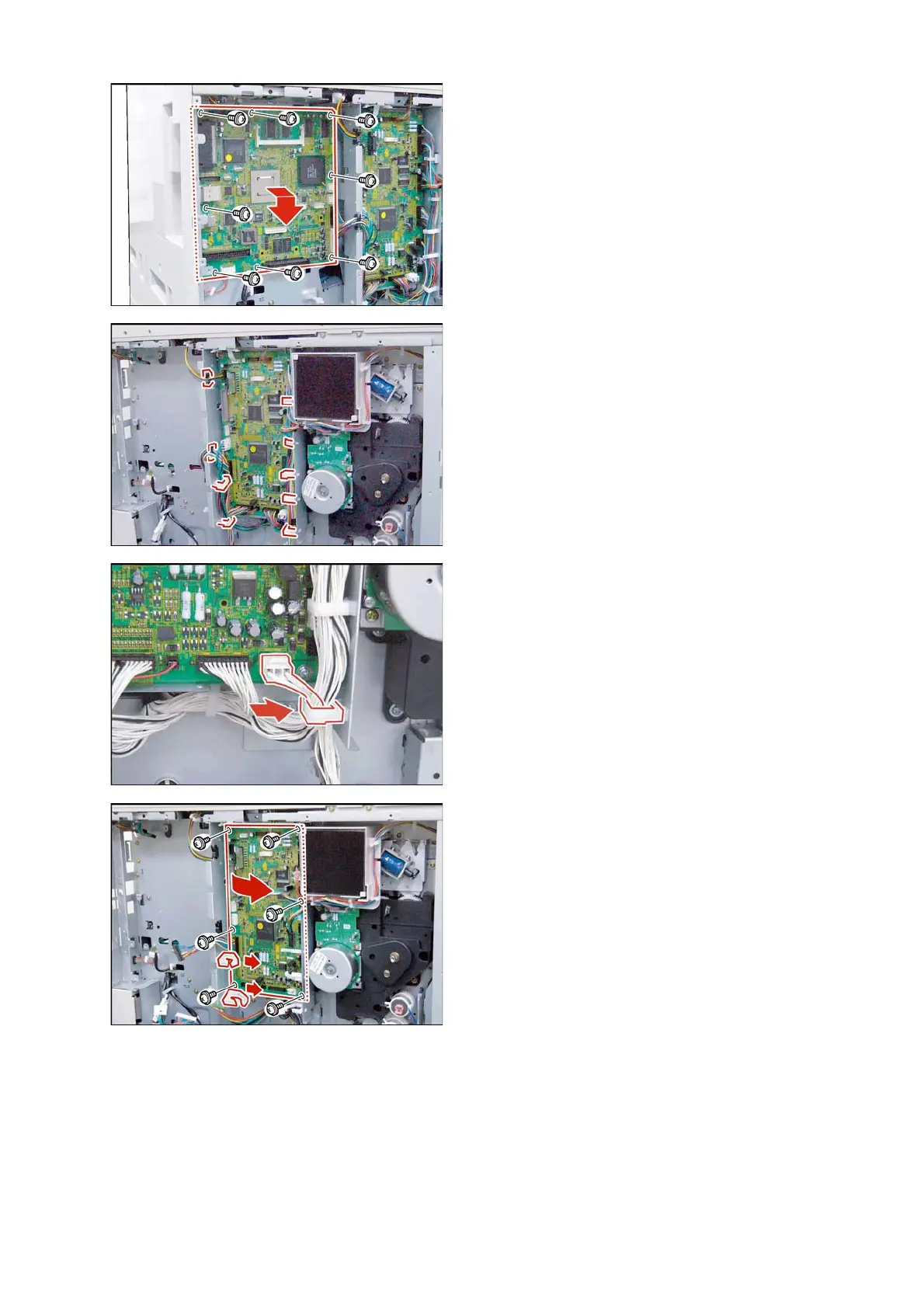

(12) Disconnect all the Harnesses on the SC PC
Board.
(13) Remove 8 Screws (Y3).
(14) Remove the SC PC Board (2801).
<SPC PC Board>
(15) Disconnect all the Harnesses on the SPC PC
Board.
(16) Release the Harnesses from Harness Clamps.
Note:
When reinstalling the ILS Harness (SPC PC Board
CN708), ensure that it is secured by the Harness
Clamp as illustrated.
(17) Remove 2 Harness Clamps (3805).
(18) Remove 6 Screws (Y3).
(19) Remove the SPC PC Board (2802).
