8.19. Replacing the OPC Drum
Note:
To avoid Toner spill in the machine, follow the steps below before removing the Process Unit.
1. Press "FUNCTION" and "1 SIDED COPY" keys simultaneously.
2. The LCD shows “Please wait...” for approx. 5 sec. Then it will be ready.

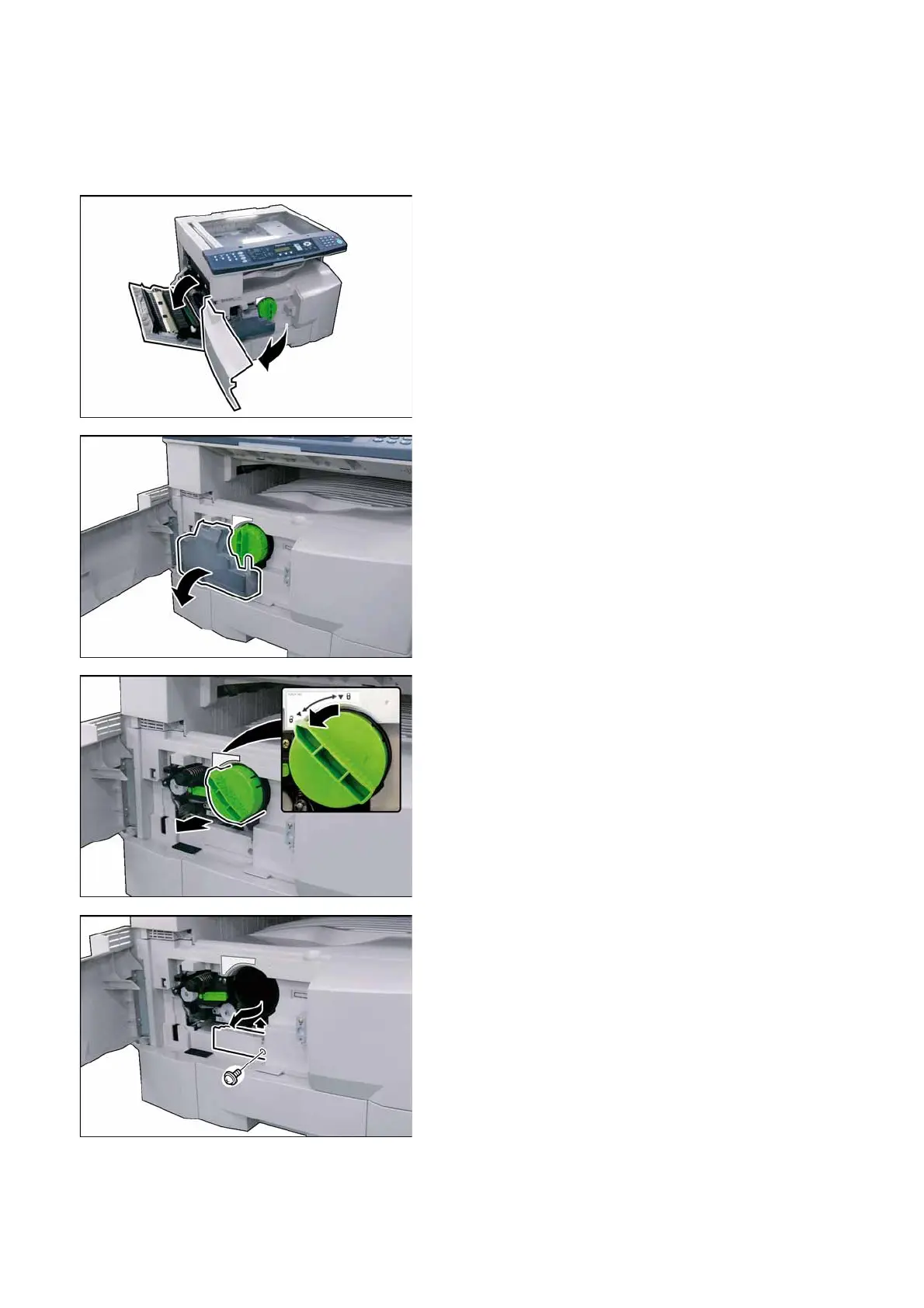

(1) Open the Left Cover.
(2) Open the Front Cover.
(3) Remove the Toner Waste Container.
(4) Remove the Toner Bottle.
Caution:
Do Not install the Toner Bottle before installing
the Process Unit first. If the Toner Bottle is installed
and turned to the "Locked" position without the
Process Unit, the Toner will spill inside the
machine.
(5) Remove 1 Screw.
(6) Remove the Connector Cover.
