DP-8020E/8020P/8016P
6.4. Receive Mechanism
6.4.1. Paper Tray

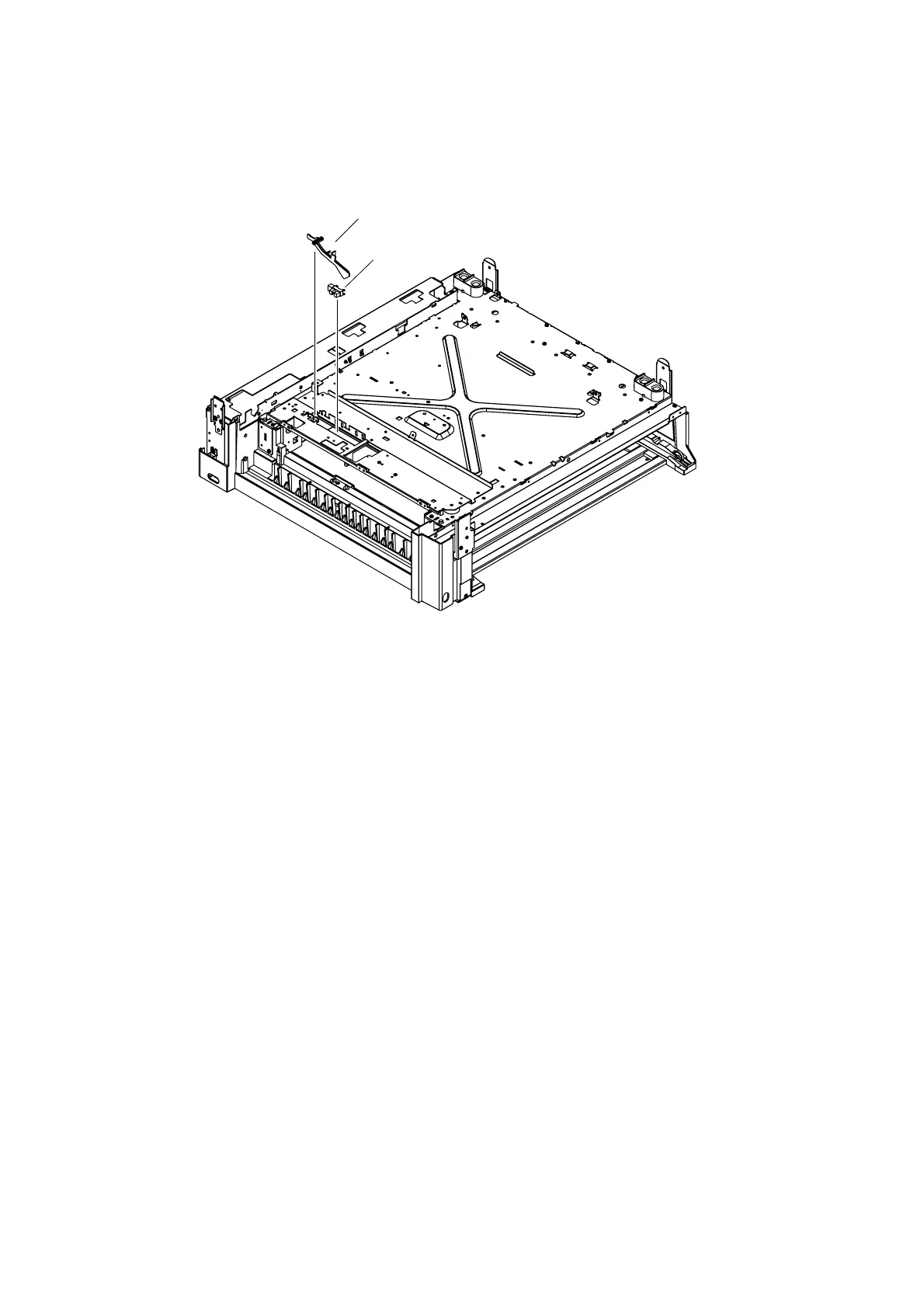

1. Paper Tray (1st / 2nd / 3rd / 4th)
< NP Sensor Operation >
a. The NP Actuators attached to the Paper Feed Blocks No.1, 2, 3 and 4 determine if there is paper in
the paper tray.
b. The paper in the paper tray lifts up the NP Actuator, allowing the light from the LED to actuate the
NP Sensor.
NP Actuator
NP Sensor
