2.2.7. Drive Unit
2.2.7.1. Drive Motor, and Toner Bottle Motor

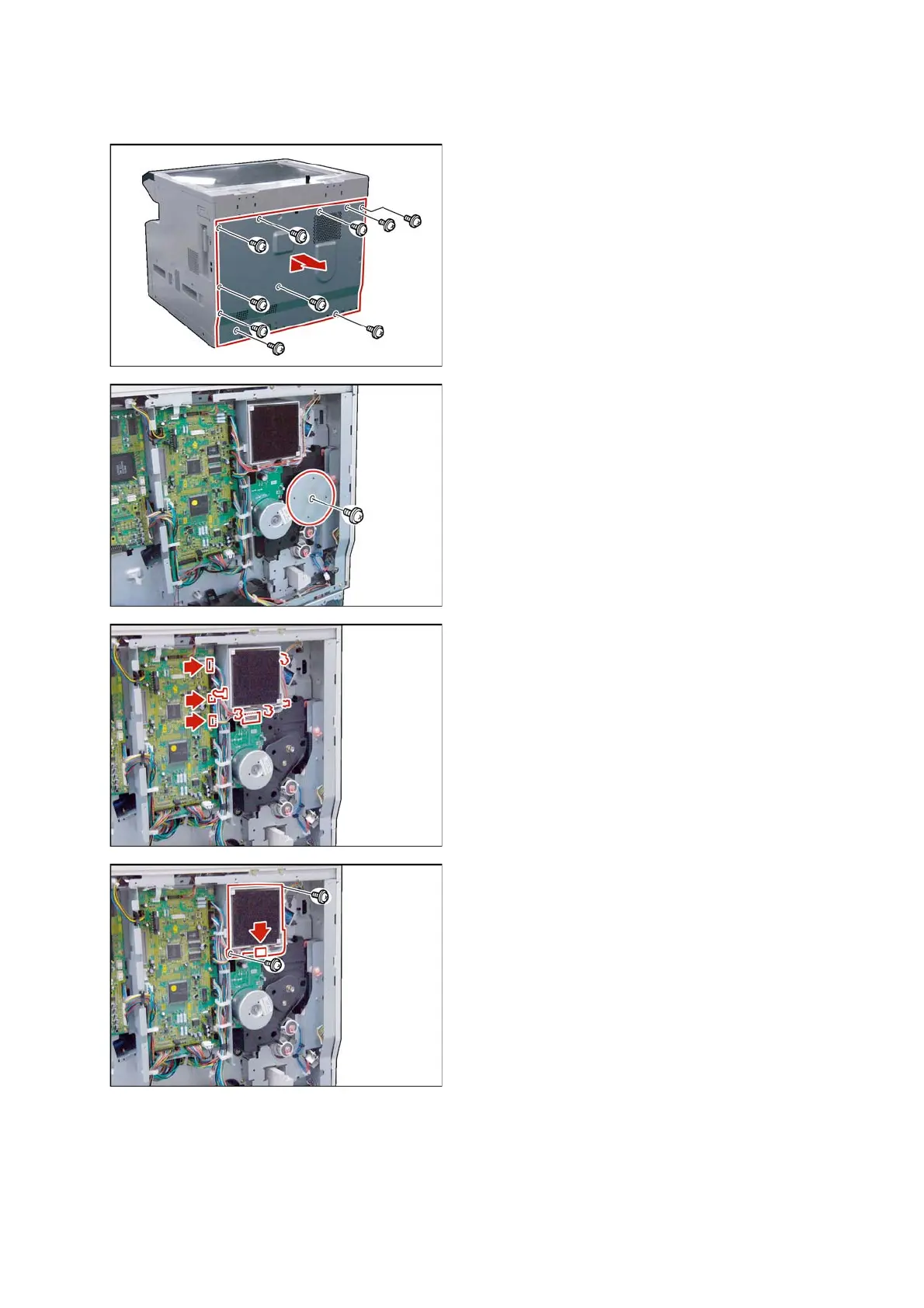

(1) Remove 10 Screws (Y3).
(2) Remove the Rear Cover (220).
(3) Remove 1 Screw (24).
(4) Remove the Fly Wheels (1555).
Note:
When the Ground Spring Kit (1556) is attached, it
is removed.
(5) Disconnect the Harnesses on the SPC PC
Board (CN719, CN721, and CN723), and Main
Motor.
(6) Release the Harnesses from 5 Harness
Clamps.
(7) Disconnect the Harness.
(8) Remove 2 Screws (Y4).
(9) Remove the Fan (815) Assembly.
