DP-8020E/8020P/8016P
(8) Store the Blue Screws into the space provided
in the 1st Paper Tray.

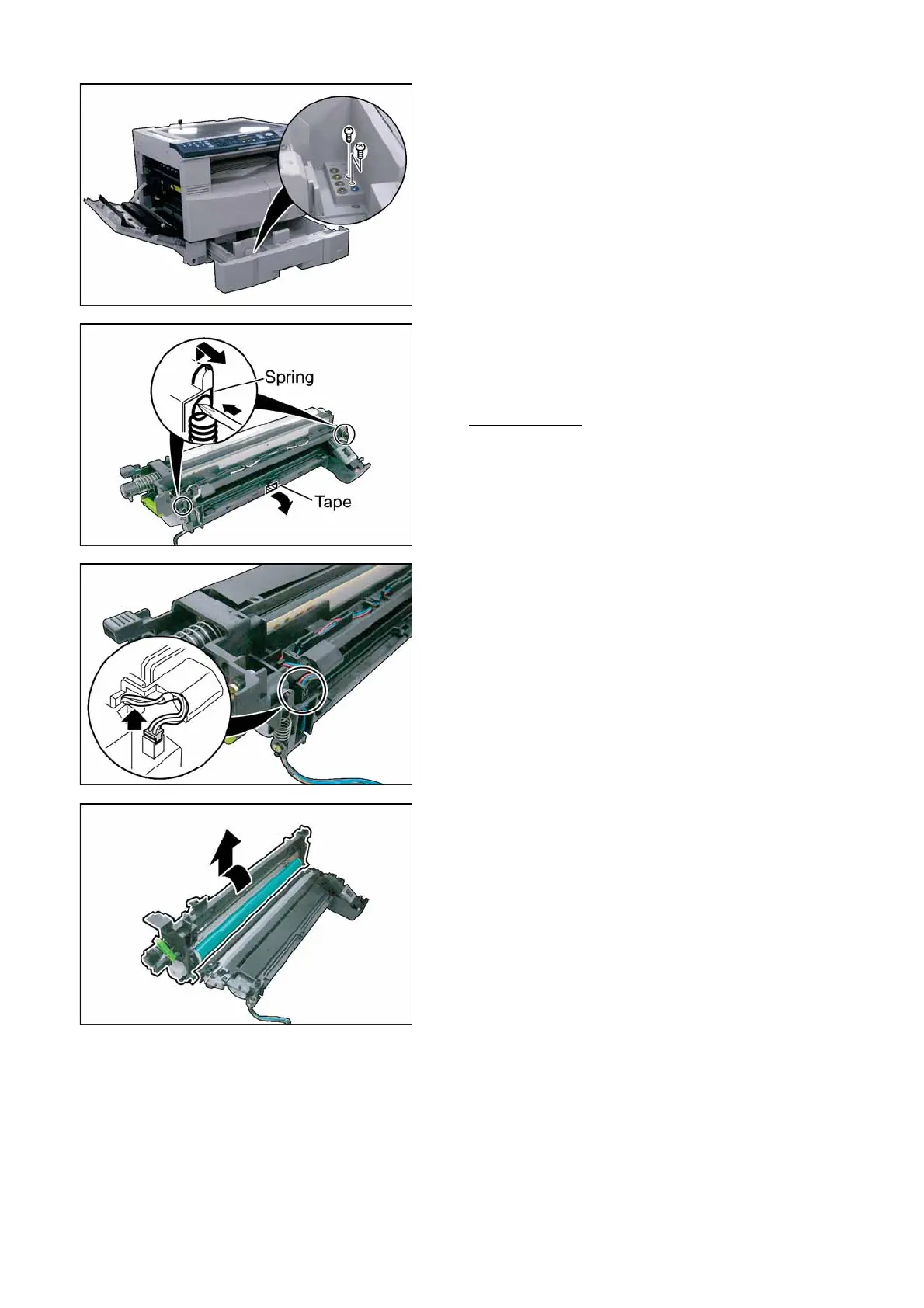

<Preparing the Process Unit>
(9) Remove the Tape.
(10) Unhook 2 Springs as illustrated.
Note:
Do not remove
the Protective Sheet and Tape
from the OPC Drum Assembly at this time.
(11) Disconnect the Harness.
(12) Turn the OPC Drum Assembly in the direction
of the arrow and remove.
Caution:
Exercise caution not to scratch the surface of the
OPC Drum (Green), and not to touch it with bare
hands.
Caution:
The OPC Drum is sensitive to light. To prevent
optical exposure problems, do not expose the
OPC Drum to direct sunlight or bright light.
Even if it is a fluorescent lamp, approx.1000 lm/m
2
(1000 lx).
