2. Back Page Skew Adjustment (i-ADF Only)
Using a lined original (about 20 lb (80 g/m
2
) weight pager), make a copy from the i-ADF to check for
feeding alignment.
4.4.4. i-ADF Free Stop Adjustment
Follow the procedure below to adjust the Free Stop function, if necessary.
Adjust the Feed Skew Adjustment "B" downwards,
and recheck the feeding alignment. Readjust as
needed.
Adjust the Feed Skew Adjustment "B" upwards, and
recheck the feeding alignment. Readjust as needed.
Fasten 2 Adjusting Screws on the Right Hinge.
The Adjustment should be performed by 1/4 turn
while checking the Free Stop.
Make sure that the rotation values of both Adjusting
Screws are the same.

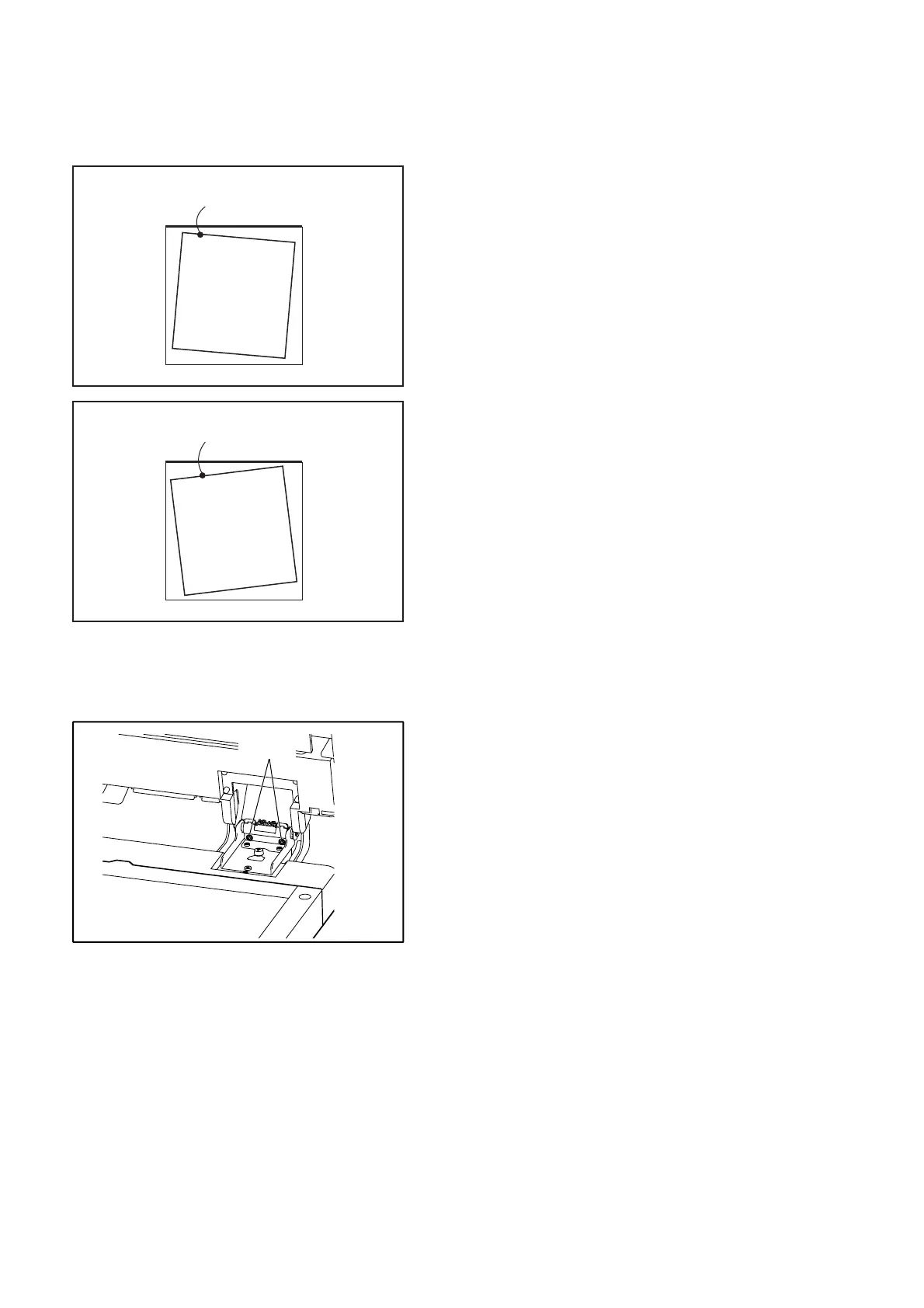

Document Leading Edge
< Example of Printed Image >
B
Document Leading Edge
< Example of Printed Image >
B
Screws
