Panasonic DP-8020E

47
SEP 2006
Ver. 1.0
DP-8020E/8020P/8016P
2.2. Disassembly Instructions

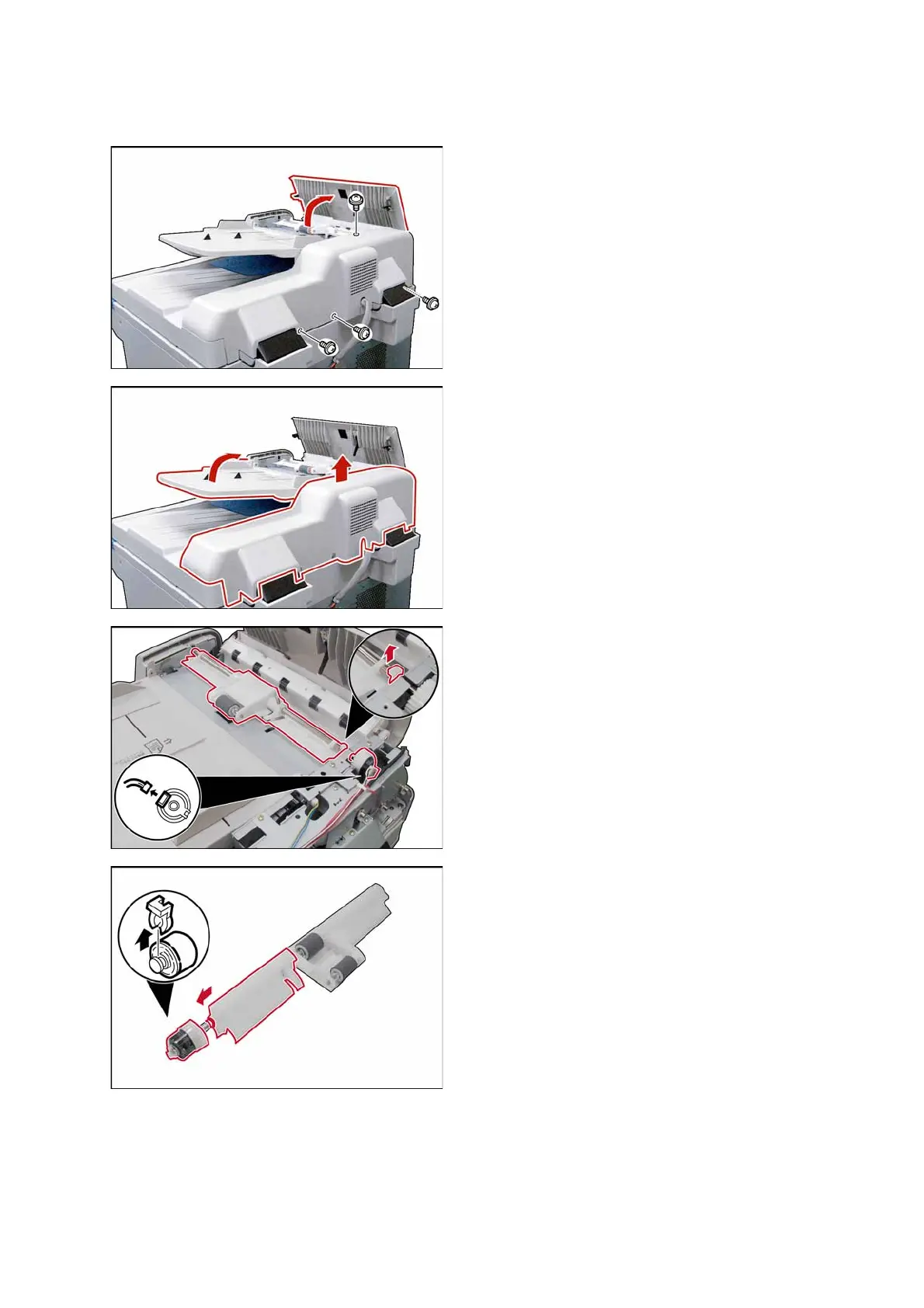

2.2.1. Inverting-Automatic Document Feeder (i-ADF) Unit
(1) Open the ADF Cover (2126).
(2) Remove 4 Silver Screws (B1).
(3) Lift the ADF Input Tray (2201).
(4) Slightly pull the right edge of the ADF Rear
Cover upward.
(5) Release the Latch Hooks.
(6) Remove the ADF Rear Cover (2101).
(7) Lower the ADF Input Tray back in place.
(8) Disconnect the ADF Motor, and Clutch
Harness (2853) from the Clutch.
(9) Remove the Snap Ring (S9).
(10) Remove the ADF Roller (2314) Assembly.
(11) Remove the Snap Ring (S9).
(12) Remove the Clutch (2324).
(13) Remove the Bushing (2321).
(14) Remove the Rear ADF Guide (2311).
