4.6.2. Jam Error Codes (J Code)

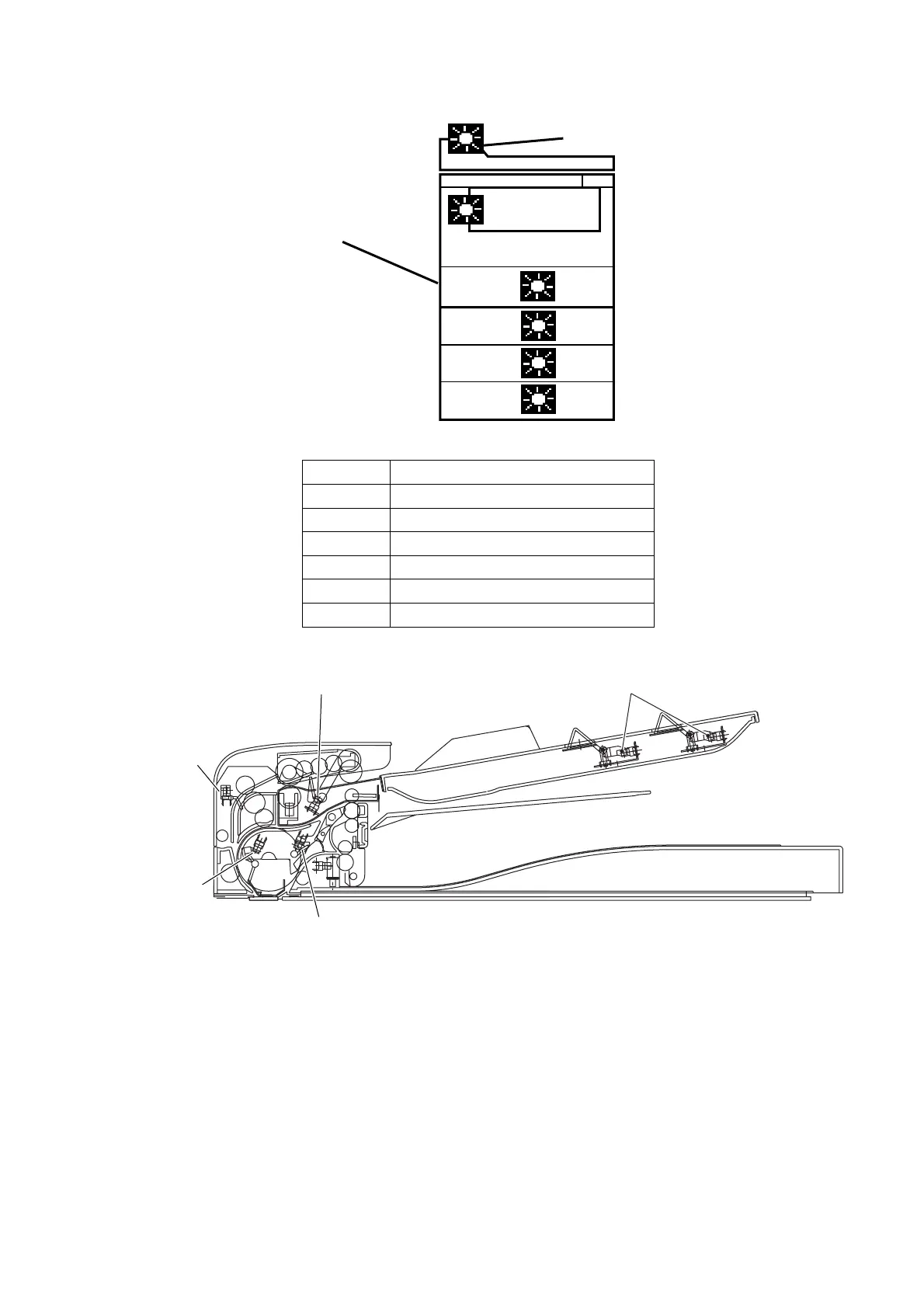

• Jam Sensor Location of i-ADF
Section Jam Location
A ADF / i-ADF / Scanner
B Paper Transport / Exit Area
C Paper Entry Area
D2 2nd Paper Tray
D3 3rd Paper Tray
D4 4th Paper Tray
A
B
C
D2
D3
D4
Original Detection Sensor
E
ject Sensor
Duplex Eject
Sensor
Read Point
Sensor
Original Length Sensor
