345
SEP 2006
Ver. 1.0
DP-8020E/8020P/8016P

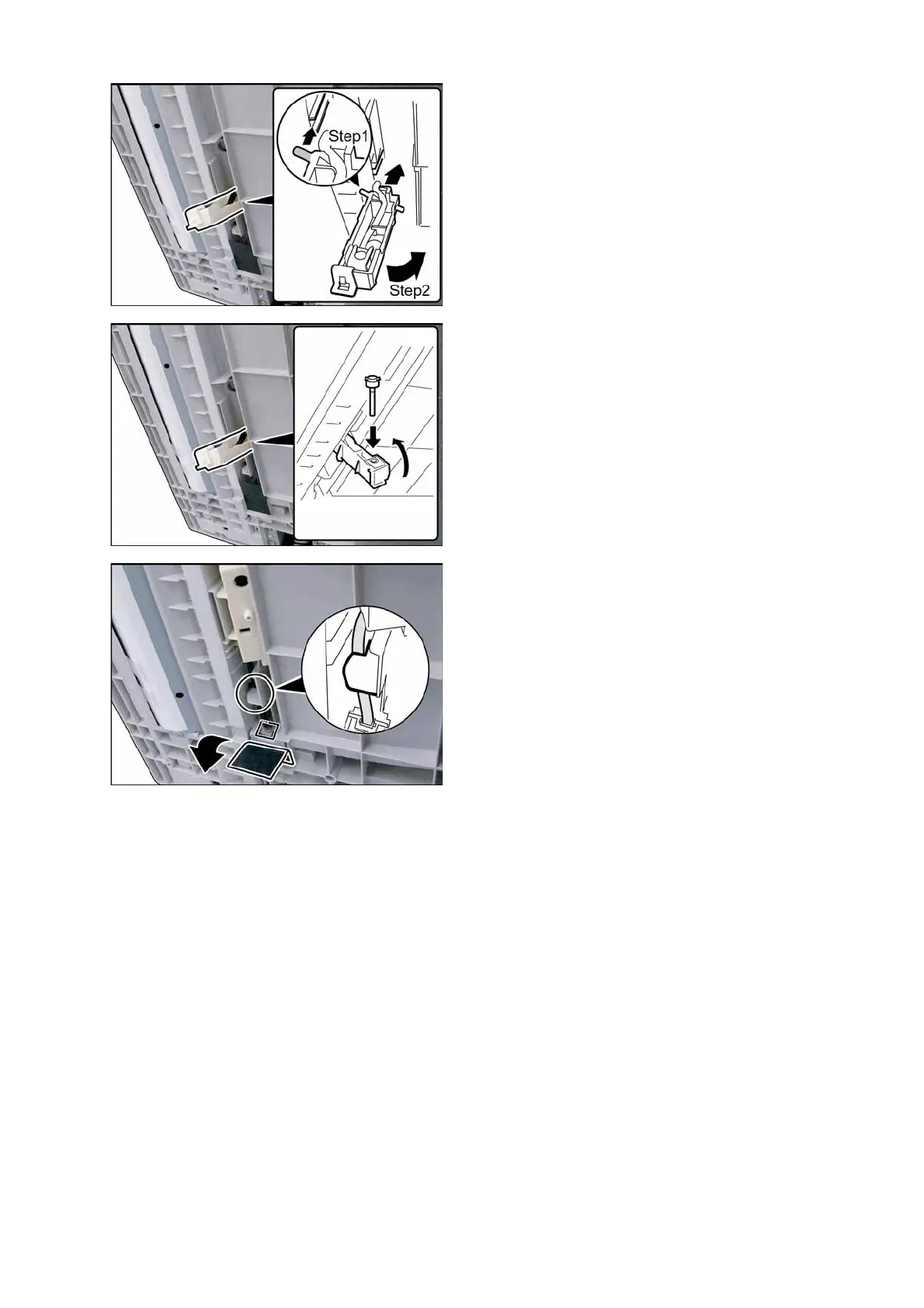

(43) Install the Stamp Unit as illustrated.
(44) Install the Stamp Assembly.
(45) Close the Stamp Unit.
(46) Remove the edge of the Protective Sheet.
(47) Connect the Harness of Stamp Unit.
(48) Place the Harness into the Latch as illustrated.
(49) Reattach the Hook and Loop Fastener on the left
side of the Scanning Pad.
(50) Close the ADF Unit.
(51) Perform Service Mode F6 (No. 69) to adjust the
Stamp Position.
To Next Page
