350
SEP 2006
Ver. 1.0
DP-8020E/8020P/8016P

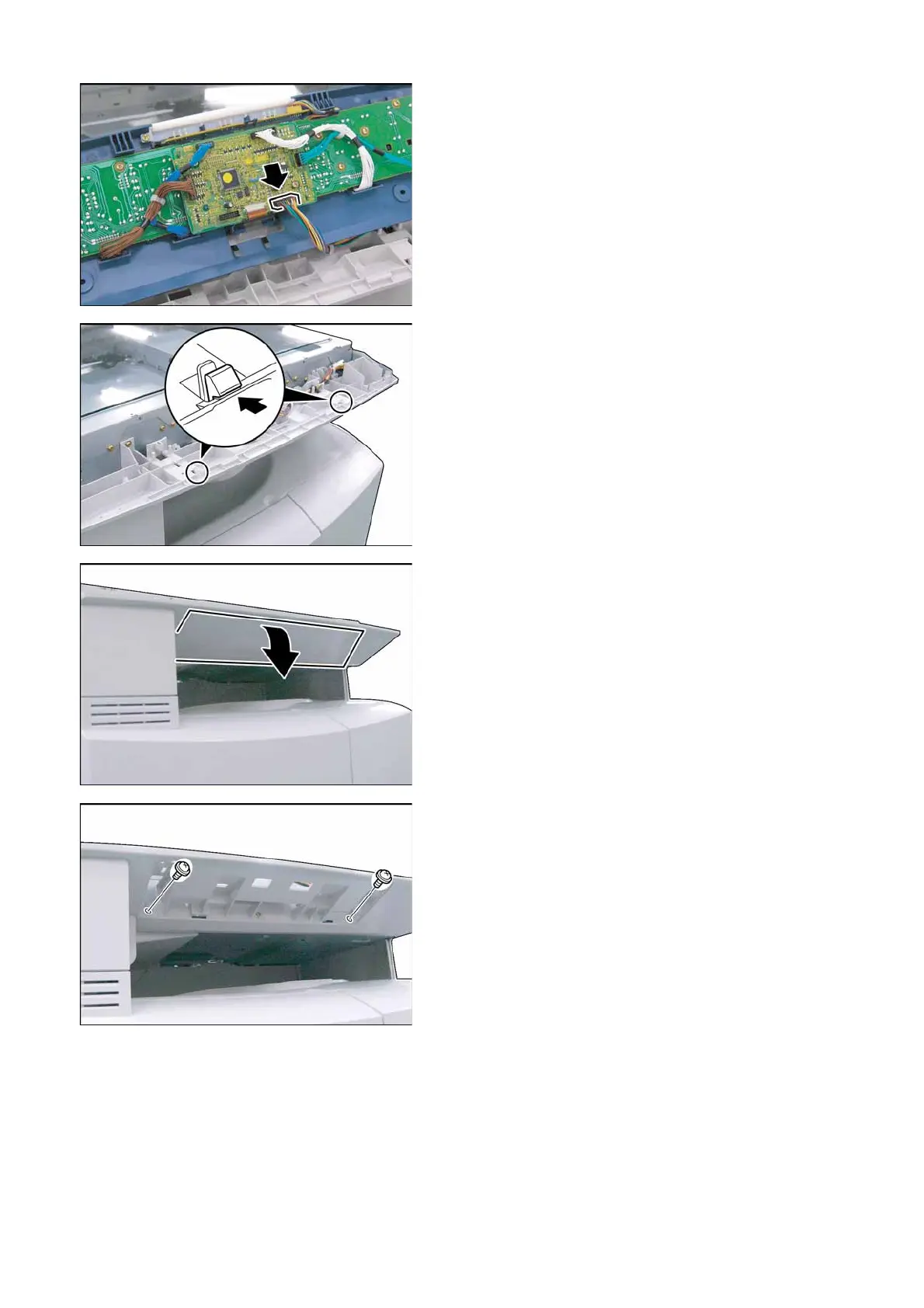

(8) Disconnect the Harness on the PNL1 PC Board
(CN220).
(9) Remove the Control Panel Assembly.
(10) Release 2 Latch Hooks.
(11) Remove the Control Panel Sub Base Cover.
(12) Remove 2 Screws.
