DP-8020E/8020P/8016P
<2nd Paper Tray Unit>

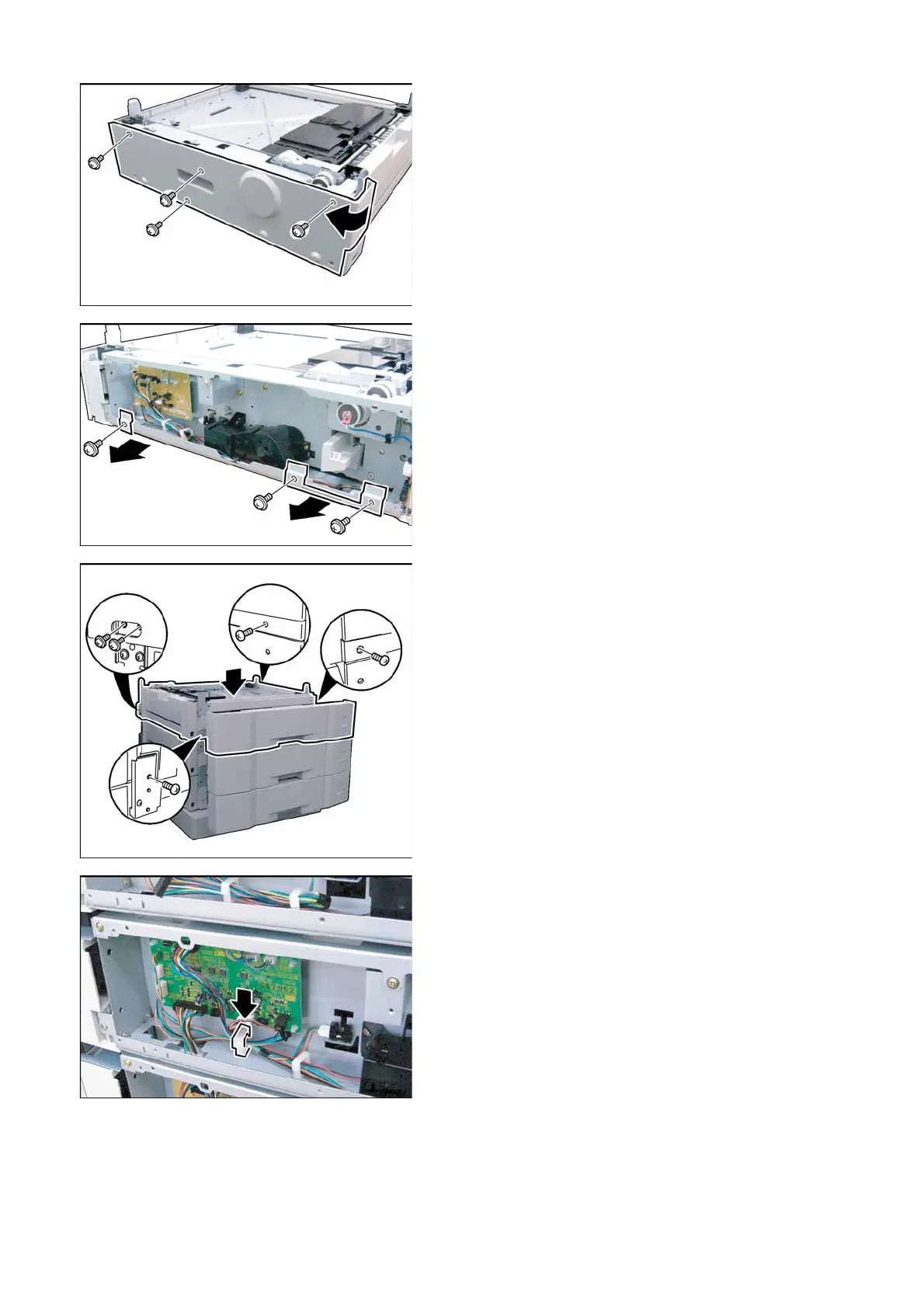

(19) Remove 4 Silver Screws.
(20) Remove the Rear Paper Tray Cover.
(21) Remove 3 Screws.
(22) Remove 2 Brackets.
(23) Place the 2nd Paper Tray Unit onto the 3rd
Paper Tray Unit.
(24) Slide the 2nd Paper Tray out of the unit.
(25) Secure the 2nd Paper Tray Unit with 5 Screws
(M3 x 6, M3 x 8).
(26) Remove the Harness from Clamp of the 3rd
Paper Tray Unit.
Note:
Close the clamp.
