DP-8020E/8020P/8016P

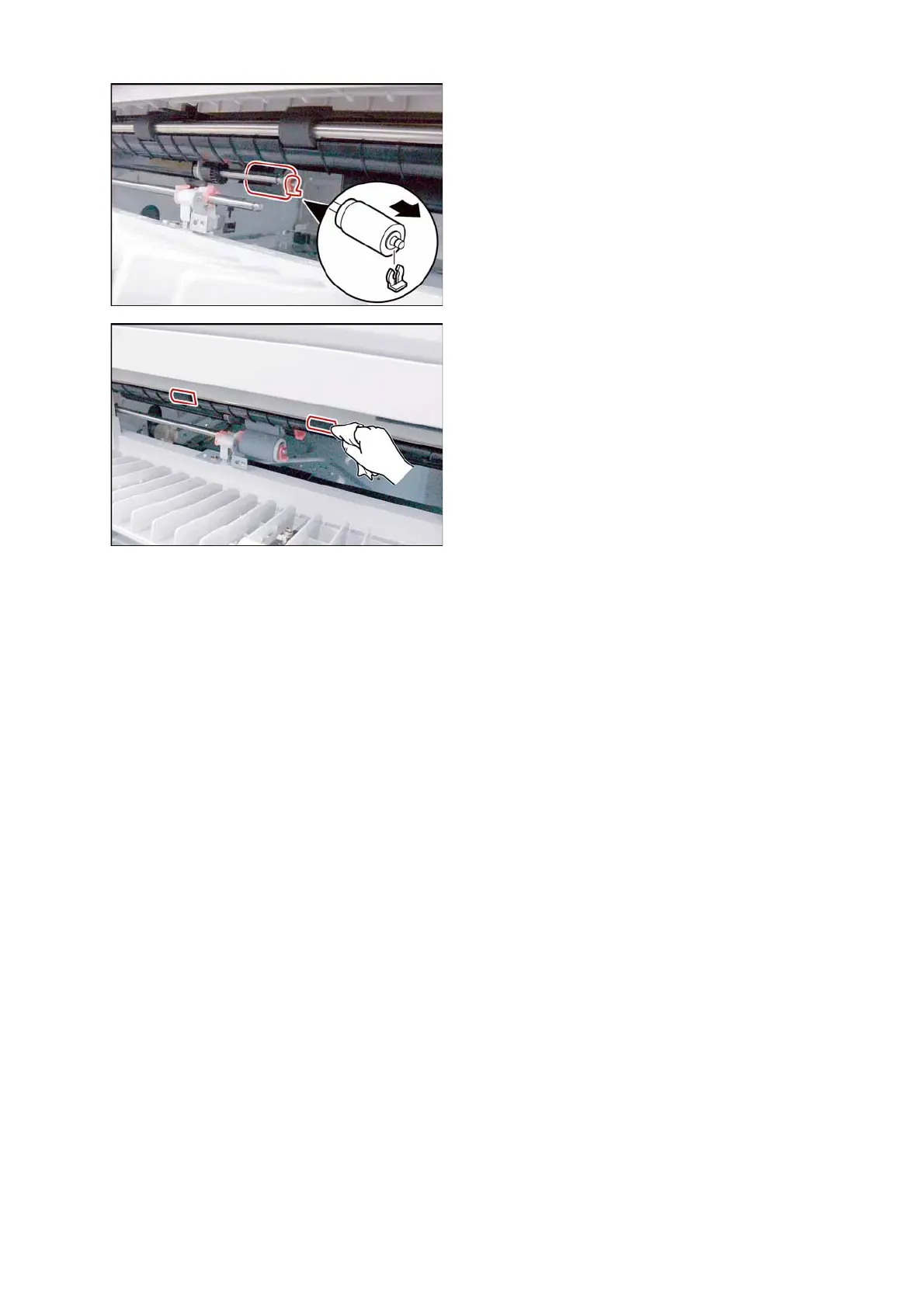

(20) Remove the Snap Ring (H6).
(21) Remove the Pickup Roller (619).
<Cleaning Pickup Roller>
Clean the surface of the Pickup Roller with a soft
cloth, saturated with Water.
<Cleaning Intermediate Roller>
Clean the surface of the Intermediate Roller with a
soft cloth, saturated with Water.
To Next Page
