Panasonic FP0R Series User Manual

4.4 Analog I/O Unit (FP0R-A21/A42)
4-27

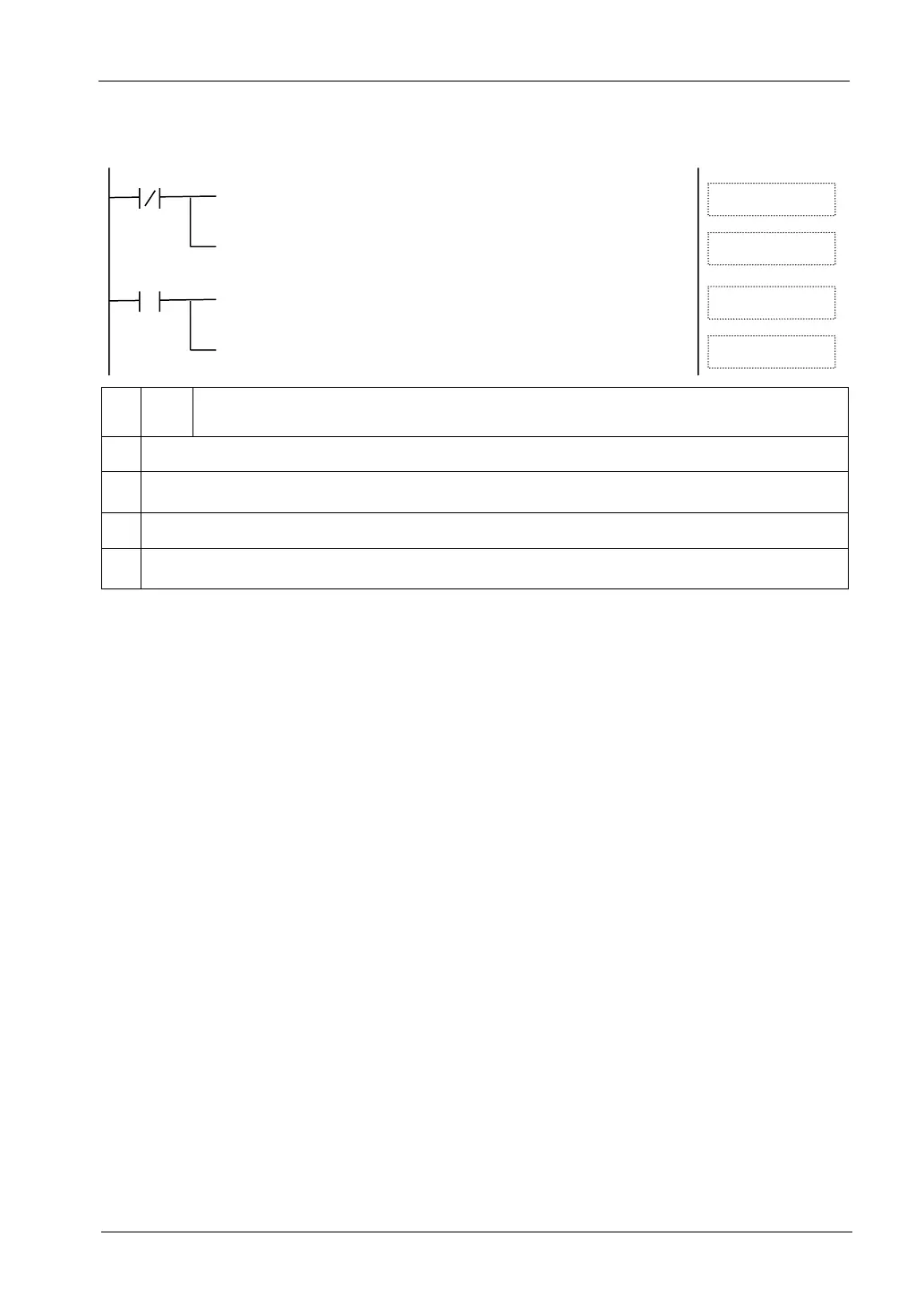

 Sample program (FP0R-A42: (For ranges of 0 to 10 V, 0 to 5 V and 0 to 20 mA)
[ F65 WAN
, WX3 , H3FFF
, DT3 ]
[ F0 MV , WX2 , DT2 ]
X3E
ⓒ
①
ⓓ
[ F65 WAN
, WX3 , H3FFF
, DT1 ]
[ F0 MV
, WX2
, DT0 ]
X3E
ⓐ
①
ⓑ
①
X3E
The channels of conversion data read by turning on/off the conversion data switching flags X3F and
X3E are distinguished.
ⓐ
The conversion data of CH0 is stored into DT0.
ⓑ
The most significant two bits are masked by "00" with F65 WAN (AND) instruction, and the data is stored in
DT1. (Note)
ⓒ
The conversion data of CH2 is stored into DT2.
ⓓ
The most significant two bits are masked by "00" with F65 WAN (AND) instruction, and the data is stored in
DT3.
(Note):In the case of data of CH1, it can be replaced with the transfer instruction F0 MV as the conversion data
switching flag is "00".

Panasonic FP0R Series Specifications

General

Model	FP0R Series
Expansion	Up to 3 expansion units
Type	Programmable Controller
Processing Speed	0.08 µs/step
Communication Ports	RS232C, RS485
Power Supply	24 V DC
Operating Temperature	0°C to 55°C
I/O Points	Up to 128 points
CPU Type	32-bit RISC
Program Memory	Flash ROM
Dimensions	90mm x 60mm x 25mm (varies by model)
