1.23 Administrative Information Features
180 Feature Guide
Conditions
• SMDR Format
The following SMDR format parameters can be set through system programming in order to match the
paper size being used by the printer:
a) Page Length: determines the number of lines per page (→ SMDR Page Length [802]).
b) Skip Perforation: determines the number of lines to be skipped at the end of every page (→
SMDR Skip Perforation [803]).
The page length should be at least four lines longer than the skip perforation length.
Explanation:
• SMDR data is not deleted even if the PBX is reset.
• If the PBX is reset during a conversation, the call will not be logged by SMDR.
• The following calls are regarded as two separated calls in the SMDR:
– Calls before and after the flash/recall/EFA signal is manually sent during a conversation
– CO-to-CO line calls by Call Transfer, FWD or DISA (each is logged as both an "incoming call" and
an "outgoing call")
• The PBX waits for a preprogrammed length of time (→ Call Duration Count Starting Time for LCOT
[208]) after the end of dialing before starting the SMDR timer for outgoing CO line calls. When the PBX
has sent out all dialed digits to the telephone company and this timer expires, the PBX begins
measuring the duration of the call. A display proprietary telephone (PT) shows the elapsed time of the
call. The starting time and the total duration of the call are logged by SMDR.
• Serial Interface (RS-232C) Parameters
The following communication parameters can be assigned for the Serial Interface (RS-232C port) (→
RS-232C Parameter—New Line Code [800], → RS-232C Parameter—Baud Rate [800], → RS-232C
Answered call Controls whether the time of answering an incoming CO line call is
shown.
Room status Controls whether room status changes are shown.
Timed Reminder call Controls whether Timed Reminder calls are shown. (→ 1.25.4 Timed
Reminder)
Printing Message Specifies the messages that can be selected from an extension. (→
1.23.2 Printing Message)
Time format Controls whether time is displayed in 12-hour or 24-hour format.
Item Description

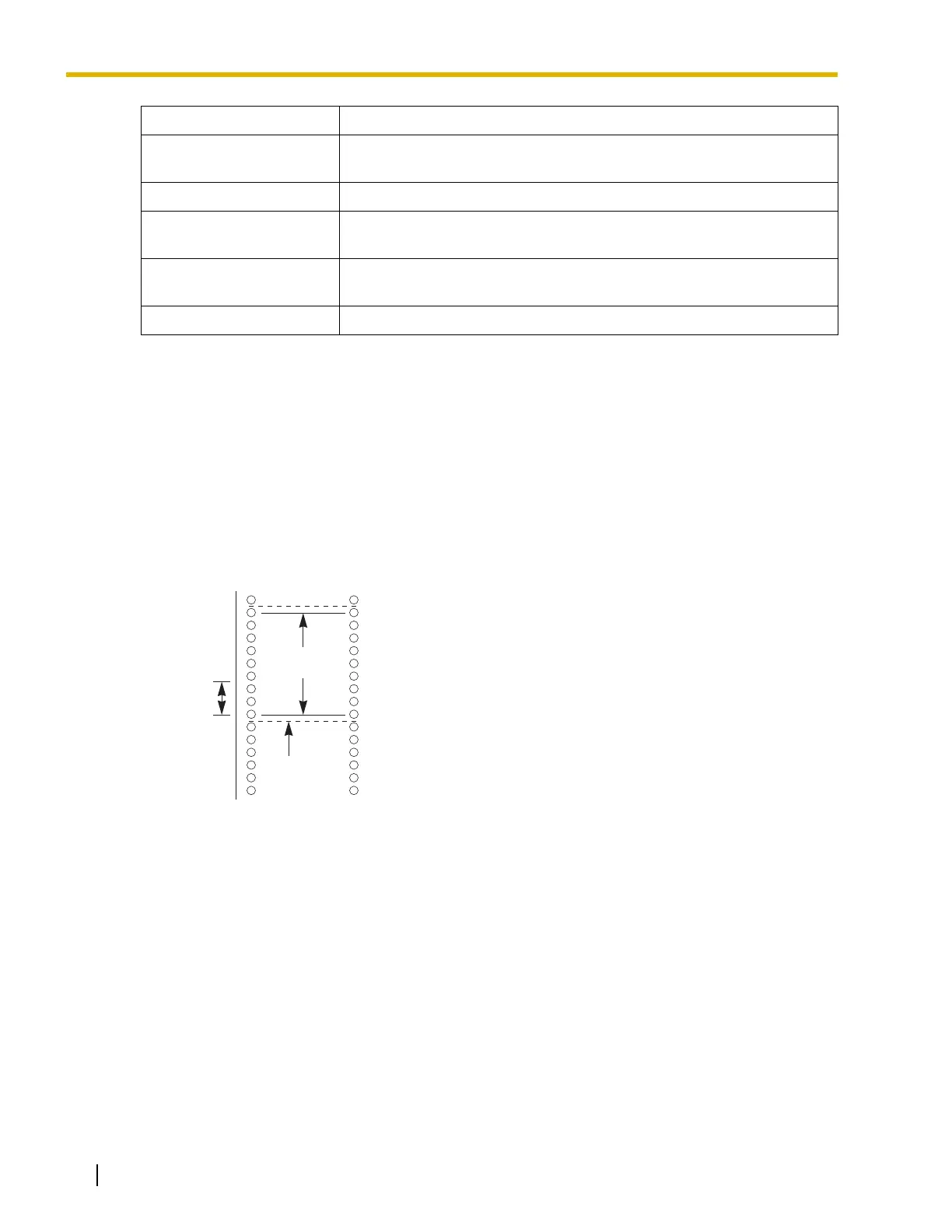

Skip
Perforation
Page
Length
Machine
Perforation
To Next Page
