Parker 10G-46-0600-BF

9-4 Function Parameters
AC10 Inverter
F122 Reverse Running Forbidden
Setting range:
0: invalid;
1: valid
Mfr’s value: 0
When F122=1, inverter will only run forward no matter the state of terminals and the parameters set
by F202.
Inverter will not run reverse and forward / reverse switchover is forbidden. If reverse signal is given,
inverter will stop.
If reverse running locking is valid (F202=1), inverter has no output.
When F122=1，F613=1，F614≥2 and inverter gets forward running command and motor is
rotating in reverse, the inverter will run to 0.0Hz reverse, then run forward according to the setting
value of parameters.
If reverse running locking is valid (F202=1), whatever Flycatching is valid or not, inverter has no
output.
When F122=1，F613=1，F614≥2 and inverter gets forward running command and motor is sliding
reverse, if inverter can detect the sliding direction and track to motor speed, then inverter will run to
0.0Hz reverse, then run forward according to the setting value of parameters.
F123 Minus frequency is valid in the mode of
combined speed control.
0：False
1：True
0
In the mode of combined speed control, if running frequency is minus and F123=0, inverter will
run at 0Hz; if F123=1, inverter will run reverse at this frequency. (This function is controlled by
F122.)
F124 Jogging Frequency (Hz)
Setting range:
F112～F111
Mfr’s value: 5.00Hz
F125 Jogging Acceleration Time (s)
Setting
range:
0.1～3000
Mfr’s value: subject to inverter
model
F126 Jogging Deceleration Time (s)
There are two types of jogging: keypad jogging and terminal jogging. Keypad jogging is valid
only under stopped status (F132 including of displaying items of keypad jogging should be
set). Terminal jogging is valid under
both running status and stopped
status. Carry out jogging operation
through the keypad (under stopped
status):
(a) Press the “M” key, it will display
“HF-0”;
(b) Press the “I” key, the inverter will run
to “jogging frequency” (if pressing “M”
key again, “keypad jogging” will be
cancelled).
Jogging Acceleration Time: the time
for inverter to accelerate from 0Hz to
50Hz.
Jogging Deceleration Time: the time for inverter
to decelerate from 50Hz to 0Hz.
In case of terminal jogging, make “jogging” terminal (such as DI1) connected to CM, and
inverter will run to jogging frequency. The rated function codes are from F316 to F323.
Note: When jogging function is valid, Flycatching function is invalid.

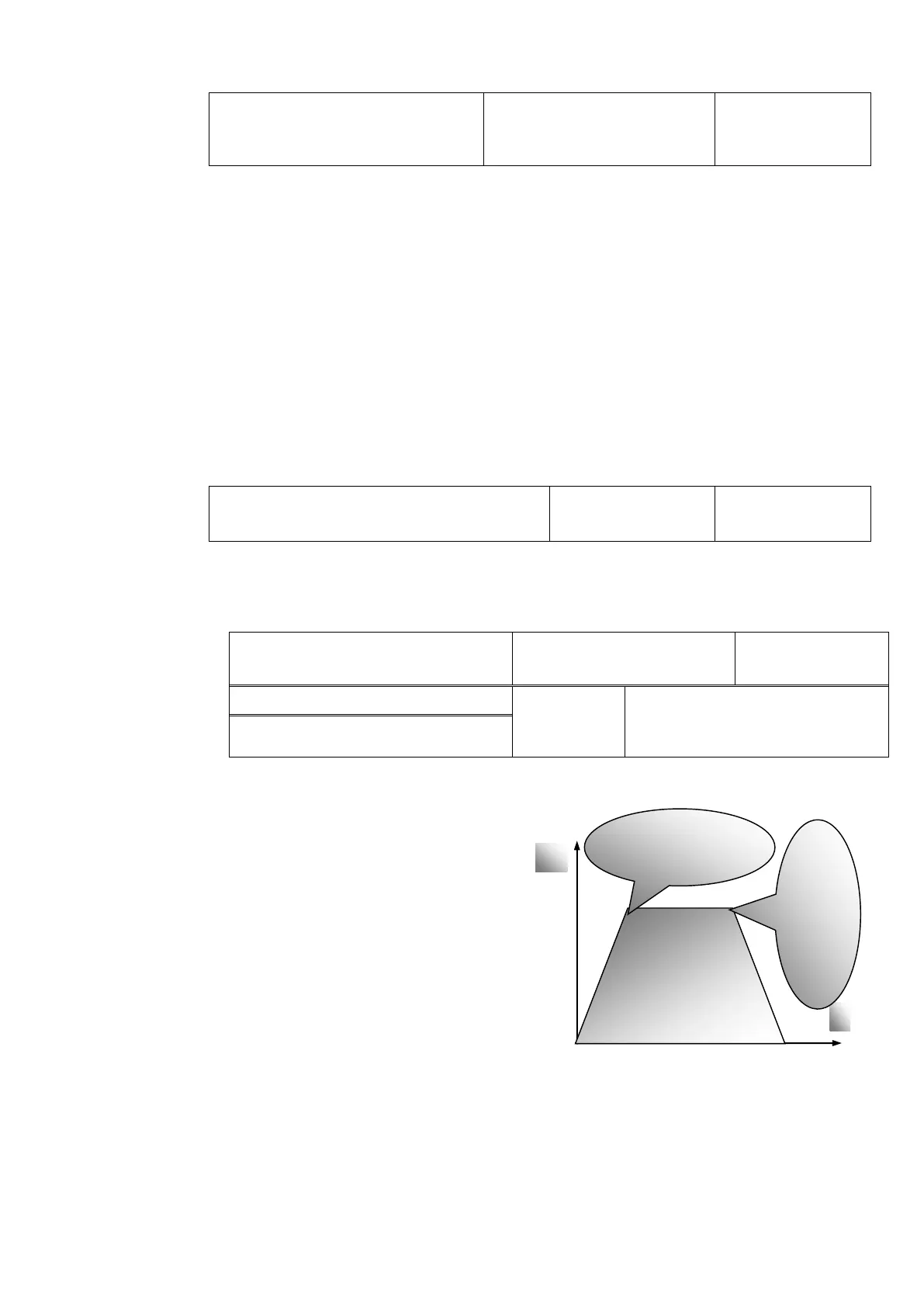

t
f
Jogging Operation
Receiving jogging
operation instruction
Removing jogging
operation instruction
F124
Figure 9-1 Jogging Operation
