Function Parameters 9-7
AC10 Inverter
When F106 (Control Mode) = 2, the function of F137 is enabled.
To compensate low-frequency torque controlled
by V/HZ, output voltage of inverter while low-
frequency should be compensated.
When F137=0, linear compensation is chosen
and it is applied on universal constant-torque
load;
When F137=1, square compensation is chosen
and it is applied on the loads of fan or water
pump;
When F137=2, user-defined multipoint
compensation is chosen and it is applied on the
special loads of spin-drier or centrifuge;

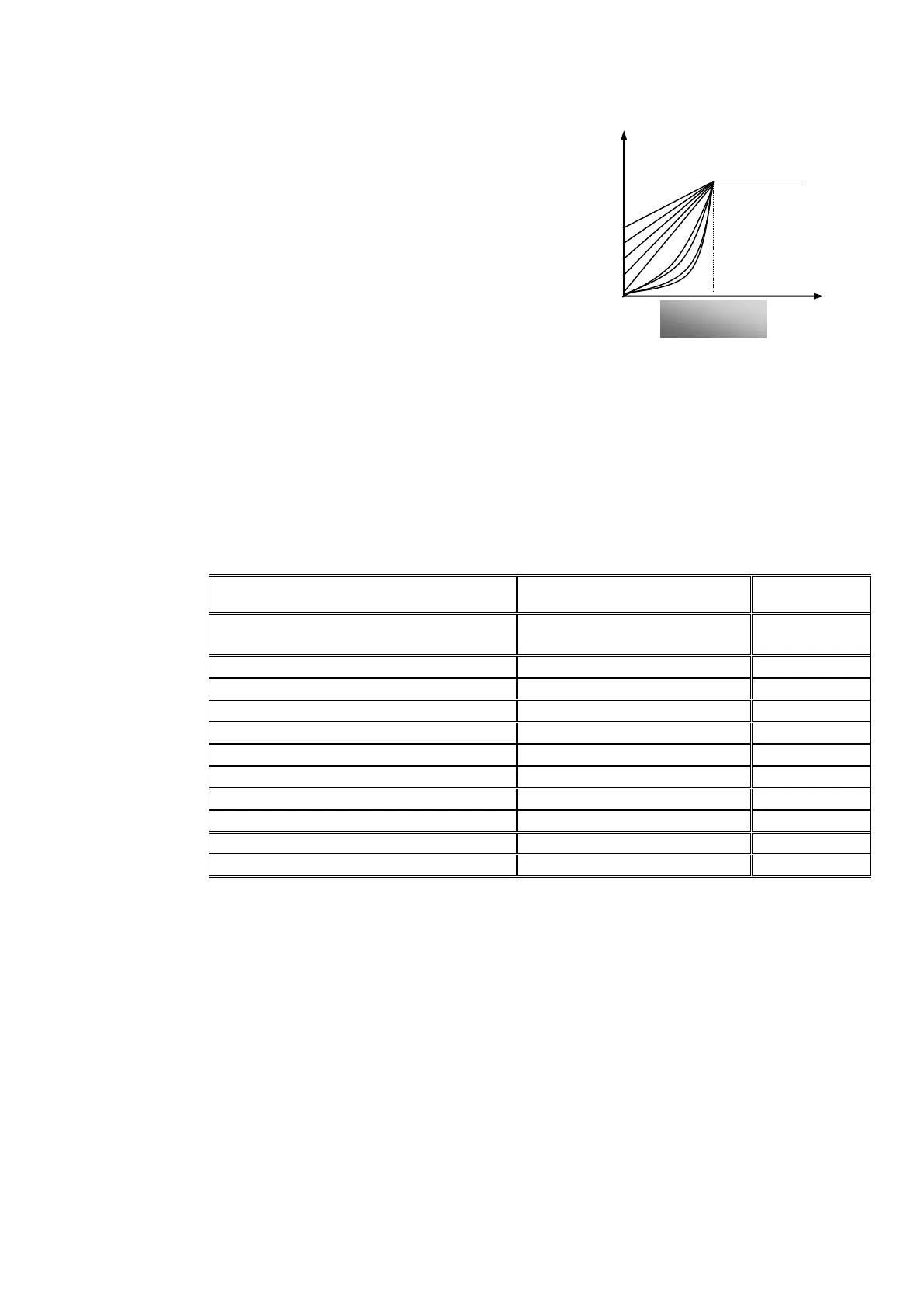

Figure 9-3 Torque Promotion
This parameter should be increased when the load is heavier, and this parameter should be
decreased when the load is lighter.
If the torque is elevated too much, the motor overheats easily, and the current of inverter will
be too high. Please check the motor while elevating the torque.
When F137=3, auto torque compensation is chosen and it can compensate low-frequency
torque automatically, to diminish motor slip, to make rotor rotary speed close to synchro rotary
speed and to restrain motor vibration. Customers should correctly set motor power, rotary
speed, numbers of motor poles, motor rated current and stator resistance. Please refer to the
chapter “Operation process of measuring motor parameters”.
F140 Voltage compensation point
frequency (Hz)
Setting range: 0F142
Mfr’s value:
1.00
F141 Voltage compensation point 1 (%)
Setting range: 0100
Subject to
inverter model
F142 User-defined frequency point F2
Setting range: F140F144
Mfr’s value:
5.00
F143 User-defined voltage point V2
Setting range: 0100
Mfr’s value: 13
F144 User-defined frequency point F3
Setting range: F142F146
Mfr’s value:
10.00
F145 User-defined voltage point V3
Setting range: 0100
Mfr’s value: 24
F146 User-defined frequency point F4
Setting range: F144F148
Mfr’s value:
20.00
F147 User-defined voltage point V4
Setting range: 0100
Mfr’s value: 45
F148 User-defined frequency point F5
Setting range: F146F150
Mfr’s value:
30.00
F149 User-defined voltage point V5
Setting range: 0100
Mfr’s value: 63
F150 User-defined frequency point F6
Setting range: F148F118
Mfr’s value:
40.00
F151 User-defined voltage point V6
Setting range: 0100
Mfr’s value: 81
Multi-stage V/HZ curves are defined by 12 parameters from F140 to F151.
20
f
Turnover
frequency
V(%)
1
