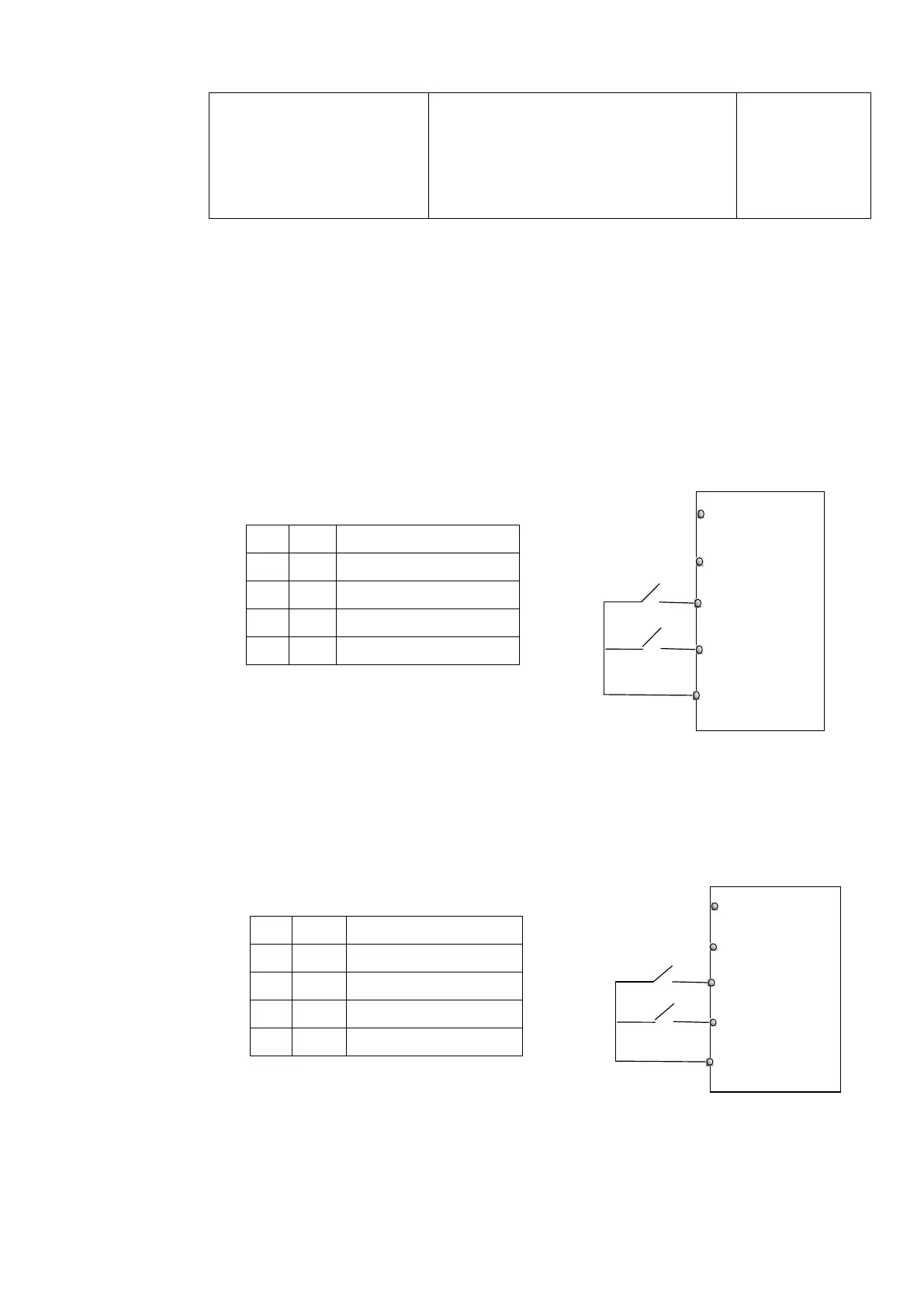

Function Parameters 9-13
AC10 Inverter
F208
Terminal two-line/three-line
operation control
Setting range:
0: No function
1: Two-line operation mode 1;
2: Two-line operation mode 2;
3: three-line operation mode 1;
4: three-line operation mode 2;
5: start/stop controlled by direction pulse
Mfr’s value: 0
When selecting two-line type or three-line type), F200, F201 and F202 are invalid.
Five modes are available for terminal operation control.
Note: In case of stage speed control, set F208 to 0. If F208 ≠0 (when selecting two-line type or
three-line type), F200, F201 and F202 are invalid.
“FWD”, “REV” and “X” are three terminals designated in programming DI1～DI5.
1: Two-line operation mode 1: this mode is the most popularly used two-line mode. The
running direction of mode is controlled by FWD, REV terminals.
For example: “FWD” terminal -----“open”: stop, “closed”: forward running;
“REV” terminal -----“open”: stop, “closed”: reverse running;
“CM” terminal -----common port
2: Two-line operation mode 2: when this mode is used, FWD is enable terminal, the direction is
controlled by REV terminal.
For example: “FWD” terminal -----“open”: stop, “closed”: running;
“REV” terminal -----“open”: forward running, “closed”: reverse running;
“CM” terminal -----common port
K1
K2
Running command
0
0
Stop
1
0
Forward running
0
1
Reverse running
1
1
Stop
K1
K2
Running command
0
0
Stop
0
1
Stop
1
0
Forward running
1
1
Reverse running
K1
FWD
REV
CM
K2
1
K
FWD
RE
V
CM
K2
