BASIC OPERATION
56 ACR7000 Controller Installation Guide

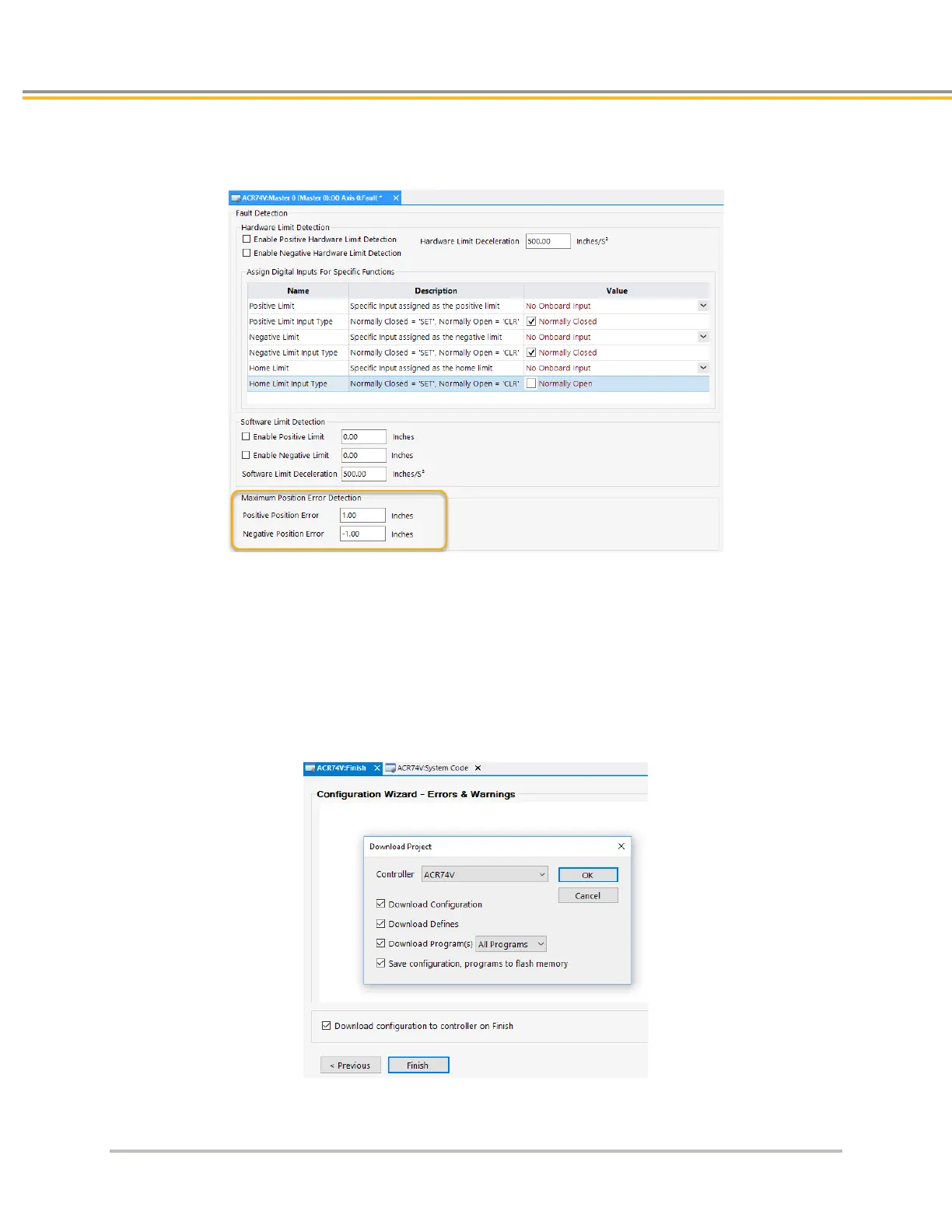

Fault
Position error settings must be non-zero values. Note that units are user programming units. Optionally select
inputs used for hardware limit and home operation and soft limit detection.
Memory
Allocate memory for user programs. Default values are a useful starting point for most applications. These values
can be refined later as needed.
Finish
Download the configuration to the controller. Note that when Download Configuration is selected all Defines and
User programs will be cleared first.
DO NOT CYLCE POWER DURING DOWNLOAD AND SAVE.
