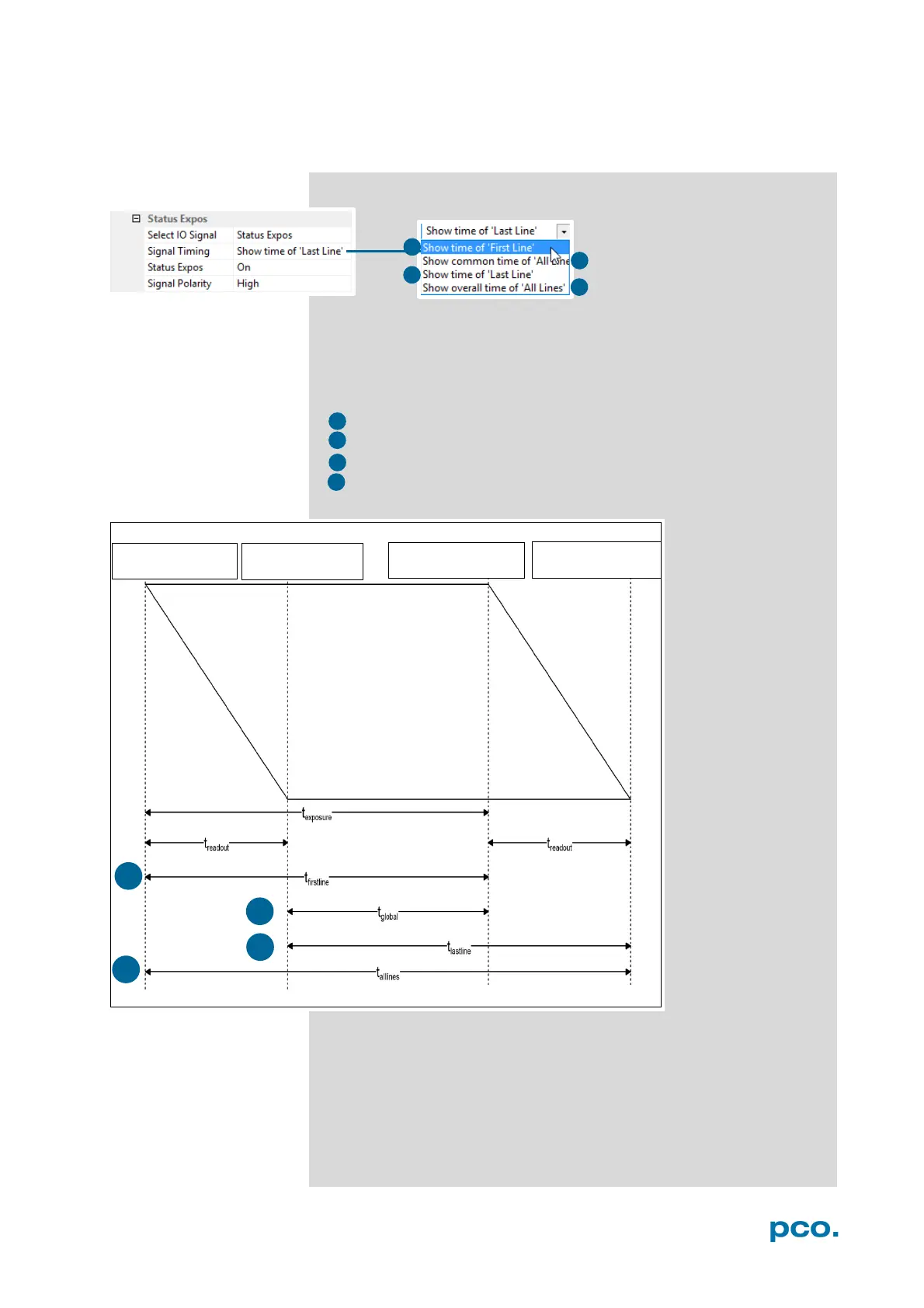

Signal Timing for Rolling Shutter
Rolling Shutter Signal Timing options are available
(only if shutter mode is set to Rolling Shutter, see 6.9.3 Setup).
There are four signal types available:
• Shows the exposure time of the first rolling shutter line (t
firstline
)
• Shows when all sensor lines are exposed (t
global
)
• Shows the exposure time of the last rolling shutter line (t
lastline
)
• Shows if any sensor line is integrating (t
alllines
)
1
1
2
3
4
2
4
3
end reset first line =
start exposure first line
end reset last line =
start exposure last line
end exposure first line =
start readout first line
end exposure last line =
start readout last line
1
2
4
3
