Pco Edge 3.1 User Manual

73
A4 INTERFACES

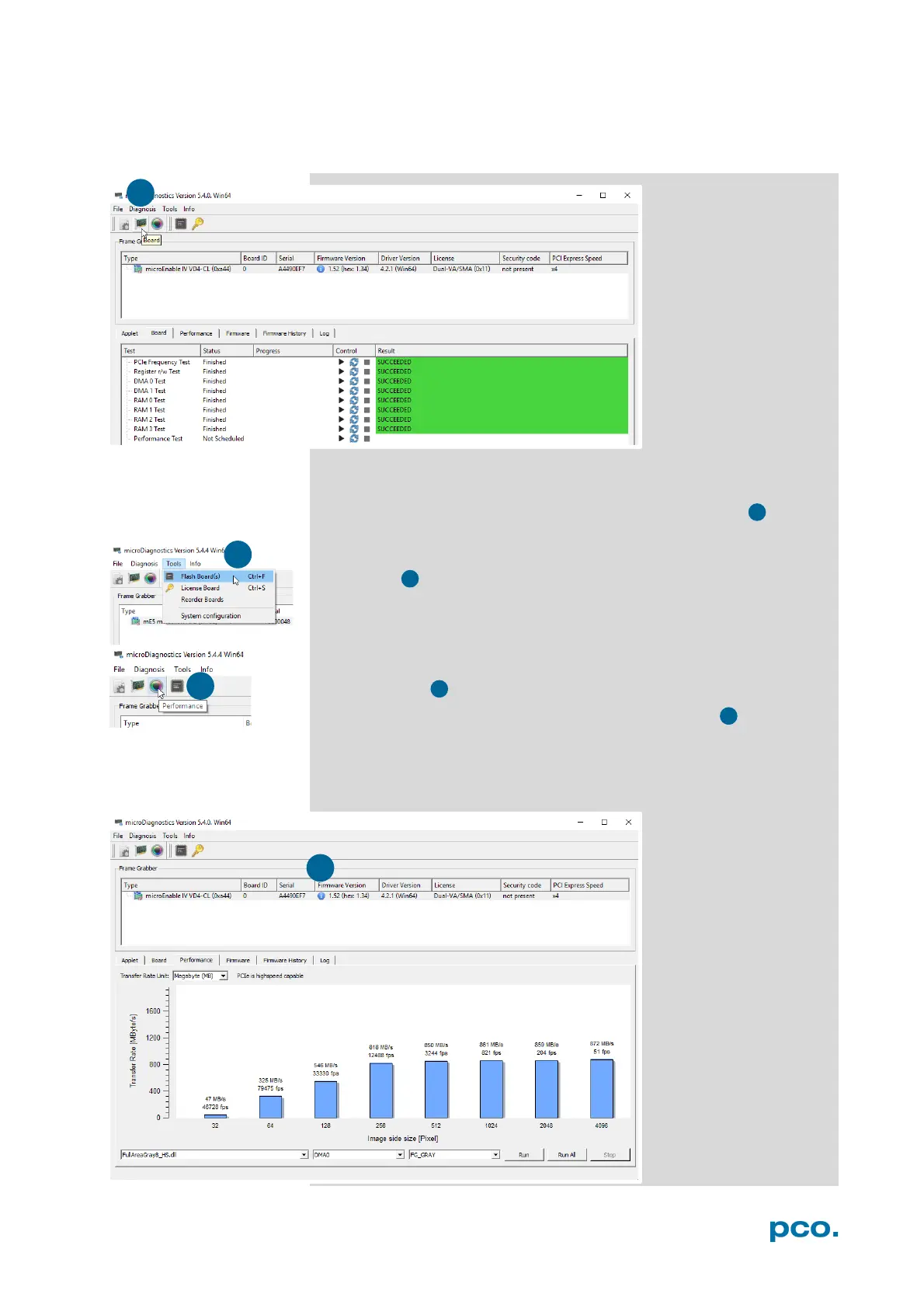

MICRO DIAGNOSTICS TOOL A4.2.2
Micro Diagnostics Tool works with micro Enable IV (AD4 / VD4
boards for pco.edge Camera Link) frame grabber cards.
To test the board, select the board in Diagnosis and click Board
to start the test.
Please upgrade to the supplied firmware. Select Tools → Flash
Board(s) and select the appropriate hap file. Micro diagnostics
provides the latest available firmware version of the installed runtime.
Then click on Yes when you’re asked to proceed. You must restart
your computer after the firmware upgrade.
Please test the performance of your frame grabber card: click on
Performance to start the test.
It is mandatory that PCIe is Highspeed Capable is shown.
Otherwise the board is probably not able to transfer the necessary
data rate.
For further information or problems with mainboards please contact
our support section.
1
2
1
5
4
5
3
4
