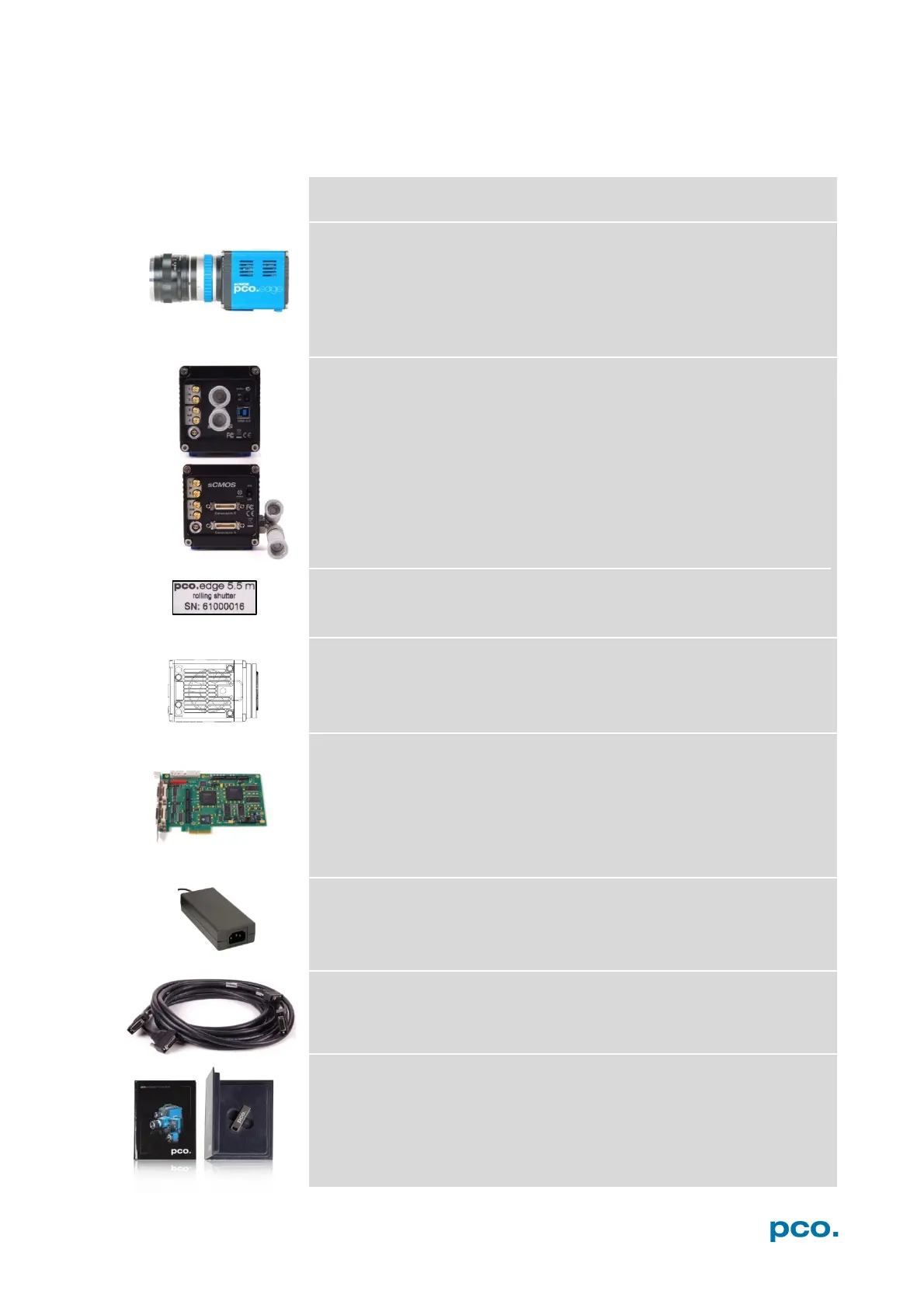

3. SYSTEM COMPONENTS

The camera system includes the following parts.

Camera

F-mount optical connection (standard)

For standard F-mount / SLR lenses and adapters.

C-mount ring provided (see A2)

For standard C-mount and microscopy connectors.

Reverse

see

A1.6

• DC Power Jack connect to power supply

• Input / Output 4x SMA connectors

• Interface Camera Link, Camera Link HS, USB 3.0

• LED indicates camera status

Serial Number Tag on the bottom of the camera

Mounting Thread

¼”- 20 UNC mounting threads

Frame Grabber Card / USB 3.0 Interface Card

PCI Express x4 Card (Camera Link) or PCI Express x4 Card (Camera

Link HS) or PCI Express x1 Card (2 x USB 3.0)

Power Supply

24 V power supply (model depending) (connector: Lemo FGG.0B)

Cable

Interface depending (see A4.1)

Digital Camera Tools (USB storage device content)

• Camware: software for camera control & image acquisition

• Camera driver & tools

• Software development kit (SDK) & demo programs in C / C++
