Pco Edge 3.1 User Manual

64

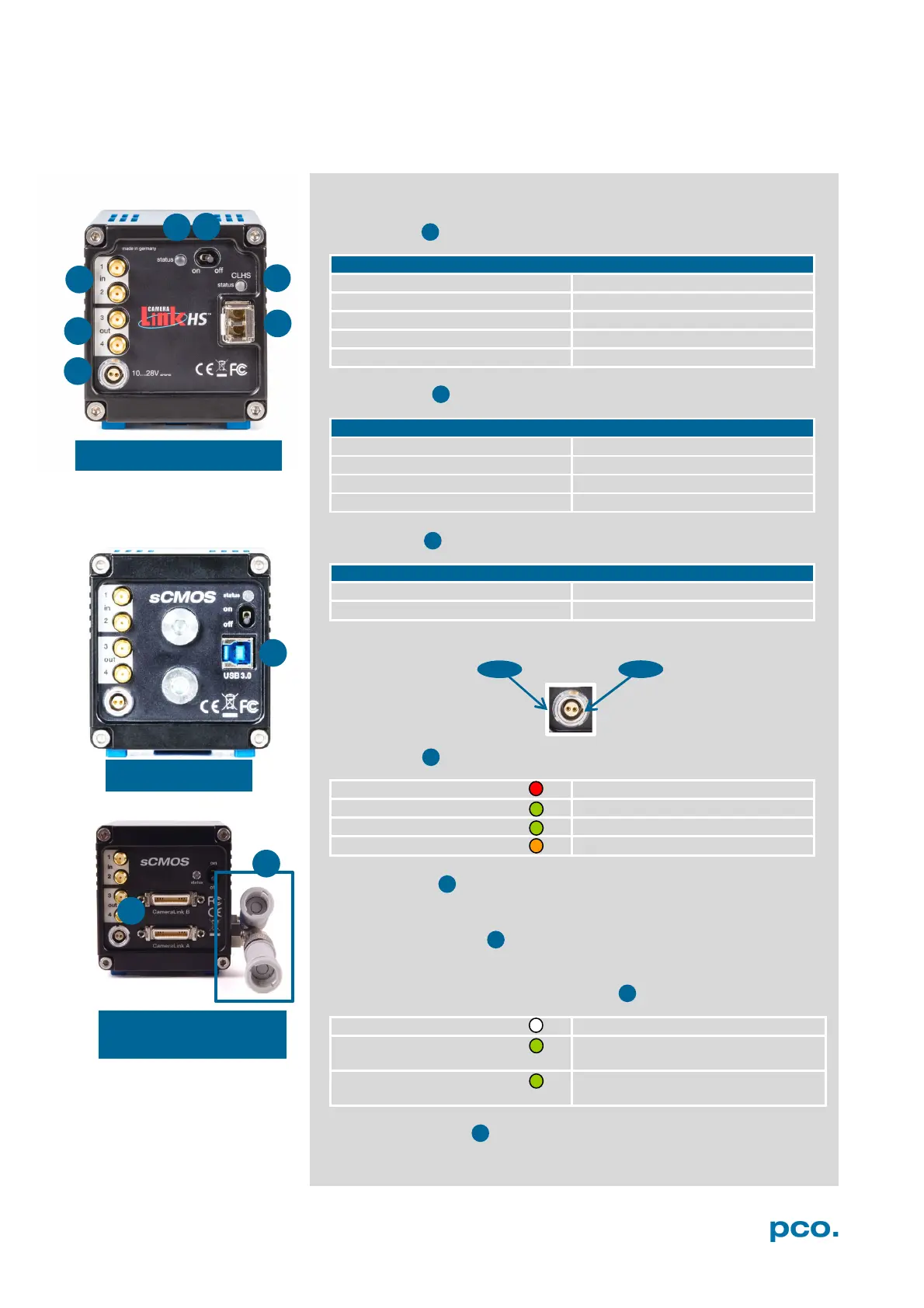

A1.6 REVERSE WITH CAPTION
Specification of the reverse:
SM
A inputs (see chapter 6.3.9)
Input (1=Exposure Trigger; 2=Acquire Enable)
type
digital
level
3.3 V LVTTL (5 V tolerant)
coupling
DC
impedance
1 kΩ
slew rate
> 1 V/ms
SM
A outputs (see chapter 6.3.9)
Output (3=Status Busy; 4=Status Expos)
type
digital
level
3.3 V LVTTL
coupling
DC
load current
max. 100 mA
P
ower input
LEMO socket ECG.0B.302.CLV
Pin1
ground
Pin2
VCC 12 V … 24 V
Appropiate Lemo plug: FGG.0B.302.CLAD52Z
S
tatus LED
red blinking
error
green continuous
camera is booting
green blinking
camera is ready for operation
yellow blinking
recording on
Power switch
on / off
I
nterface connector
Depending on interface: USB 3.0, Camera Link or Camera Link HS.
I
nterface status LED (Camera Link HS)
off
no power and/or waiting for software
green continuous
link established; data transfer may
take place
green blinking
hardware ok, but connection broken /
not established
Water connectors:
Colder Product Company SM212 ¼ hose connector
1
2
Pin1
Pin2
3
4
5
6
1
1
3
6
2
7
4
5
Camera Links HS version
USB 3.0 version
6
8
6
Camera Link version
with water-cooling
8
7
4
5
