Playback and Processing Functions
4
Connecting the Camera to
AV Equipment
You can play back images on AV equipment by connecting the
camera with a commercially-available video cable (mini plug to
RCA cable) or HDMI cable (Type C).
Memo
• If you intend to play back continuously for a long period, use of the
AC adapter kit K-AC50 (optional) is recommended. (p.30)
• Nothing is displayed on the monitor during HDMI output.
• You cannot output both composite and HDMI video signals at the
same time.
• The video output format differs depending on the region. When you
set the hometown with Initial Settings (p.34) or change [Setting the
Time] to X (Destination) with [World Time] (z p.R23) in the [R1]
menu, the video output format is set to match that region. If images
fail to be played back, change the video output format with [Video
Out] in the [R2] menu. (z p.R25)
• The maximum size of the HDMI output format corresponding to the
AV equipment and camera is automatically selected. If images fail
to be played back, change the video output format with [HDMI Out]
in the [R2] menu. (z p.R25)

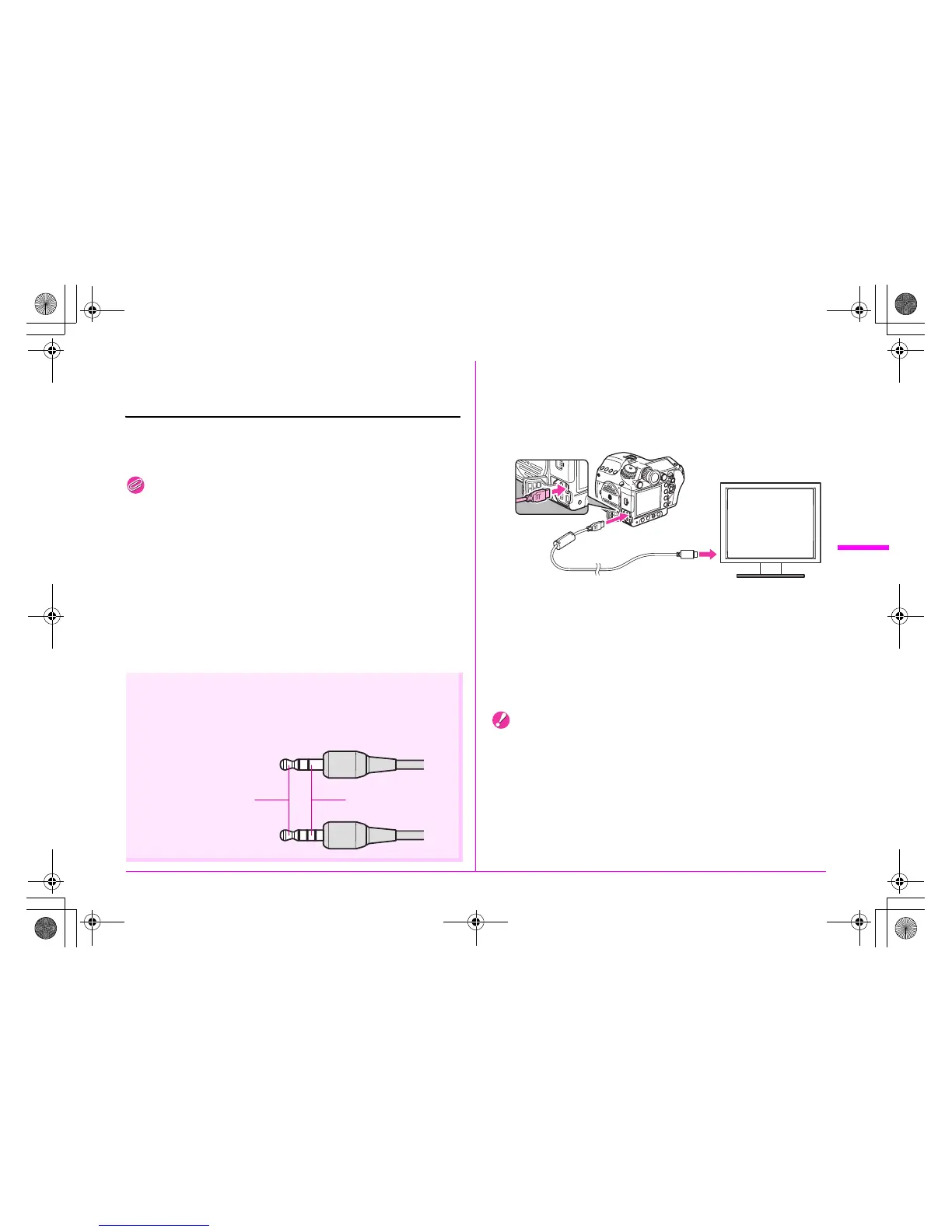

1 Turn the AV equipment and camera off.
2 Open the terminal cover on the camera and
connect the video cable to the video terminal or
the HDMI cable to the mini HDMI terminal.
3 Connect the other end of the video cable or HDMI
cable to the video IN jack or HDMI IN jack on the
AV equipment, and then turn on the camera and
AV equipment.
The camera turns on in video or HDMI mode, and the camera
information is displayed on the screen of the connected AV
equipment.
Caution
• For video output, images are played back in normal resolution
regardless of the compatible resolution of the AV equipment. To
play back images in high definition, use the HDMI terminal or first
transfer the data to a computer.
About the Video Cable
The video terminal for this camera is a two-conductor socket. If
using a three- or four-conductor mini plug cable, insert the colored
cord corresponding to the signal from the mini plug end into the
video input terminal on the AV equipment being used.
Earth (GND)
Video signal
from the
h
[3-conductor mini plug]
[4-conductor mini plug]
